Chronis RTS/RTS L has several functions, which can fulfil individual requirements at the touch of a button:
Weekly program
set different times for automatic opening and closing of your roller shutters every day of the week.
Holiday security
set random times to give the impression of an occupied house.
Cosmic
roller shutters are activated automatically according to the times the sun rises and sets.
OFF setting
The automatic control can be turned off at the touch of a button.
A detailed description of each mode of operation is given under point 4 "Programming".
All functions of the Chronis RTS also apply for the Chronis RTS L for light sensor. Please read the instructions included with the light sensor.
1
Characteristics
Degree of protection:
Operating temperature:
Environmental conditions:
2
Installation
The range of radio control is limited by laws regulating radio devices and by building design. When planning, please ensure that there is adequate radio reception.In order
not to affect quality of reception, a minimum distance of 30 cm between a Chronis RTS/RTS L unit and a radio receiver should be maintained.
Chronis RTS/RTS L should not be installed in the immediate vicinity of metal surfaces. Powerful local transmitter equipment (e.g. cordless headphones) with a transmis-
sion frequency identical to the Chronis RTS/RTS L can affect its function.
Insulating strip
We reserve the right to make changes due to technical improvements.
inteo
CHRONIS RTS / RTS "L"

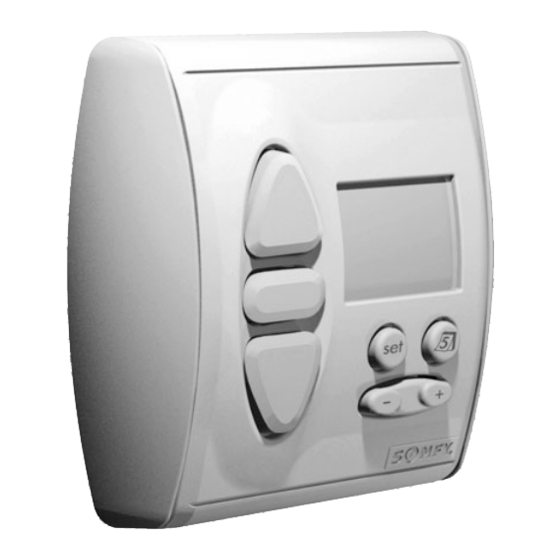

Chronis RTS/RTS L is the programmable radio time switch in the new inteo-control range from SOMFY, which
controls your electrically operated roller shutters or external blinds. Operating commands are transmitted by ra-
dio signal, significantly reducing the cost of installation. The radio signal has a range of up to 300 metres in free
field, or 20 metres through two concrete walls in buildings.
Supply:
2 x 1,5 V DC (Type : AAA LR03)
IP 30
+5°C to +40°C
dry living areas.
The equipment is delivered with the batteries installed.
An insulating strip is placed between the battery pole and the contact.
This must be removed before installation, then the time is shown on the display.
guide
80 mm
80 mm
27 mm
Chronis RTS/RTS L
Hereby, SOMFY, declares that this equipment is in
compliance with the essential requirements and other
relevant provisions of Directive 1999/5/EC.
A Declaration of Conformity is available at the web ad-
dress www.somfy.com Heading CE
1
Advertisement
Table of Contents
Related Manuals for SOMFY inteo CHRONIS RTS
Summary of Contents for SOMFY inteo CHRONIS RTS
- Page 1 CHRONIS RTS / RTS “L” Chronis RTS/RTS L is the programmable radio time switch in the new inteo-control range from SOMFY, which controls your electrically operated roller shutters or external blinds. Operating commands are transmitted by ra- dio signal, significantly reducing the cost of installation. The radio signal has a range of up to 300 metres in free field, or 20 metres through two concrete walls in buildings.
- Page 2 The procedure for tuning a Chronis RTS to a radio receiver depends on the type of receiver used. It is important to follow step by step the detailed description of the relevant programming procedure in the instructions which accompany each individual SOMFY RTS radio receiver. – Activate your chosen receiver (please refer to the installation guide of the relevant receiver).
- Page 3 Setting operation mode Setting operation mode The Chronis RTS/RTS L has 5 different operating modes: 4.2.1 Weekly programme ( Roller shutters are opened or closed automatically at individually set times. – Default opening time is set at 6:00, default closing time is 20:00. –...
- Page 4 Entering a differential time 1. Press and maintain until the display shows (COS 1) (if not already set) briefly ➜ time flashes and next switching command is displayed 2. Press briefly ➜ UP differential time flashes 3. Press 4. Change UP differential time using button briefly ➜...
- Page 5 Setting operation mode Controls ergonomics 5.2.1 Control ergonomics for roller shutter operation By pressing briefly the push buttons, the shutter is activated in the corresponding direction. By pressing briefly the push button, the shutter stops. Intermediate position (If an intermediate position has been recorded in the receiver) By pressing briefly the push button while the shutter is already stopped, then the shutter will move and stop at the intermediate position.
- Page 6 Diagnosis menu This menu allows the unit to be checked and additional functions to be set. To access the menu, press simultaneously until appears on the display. > 3 secs. To change the menu options, press . To save changes and exit, press .
