09/11 IL01208016Z

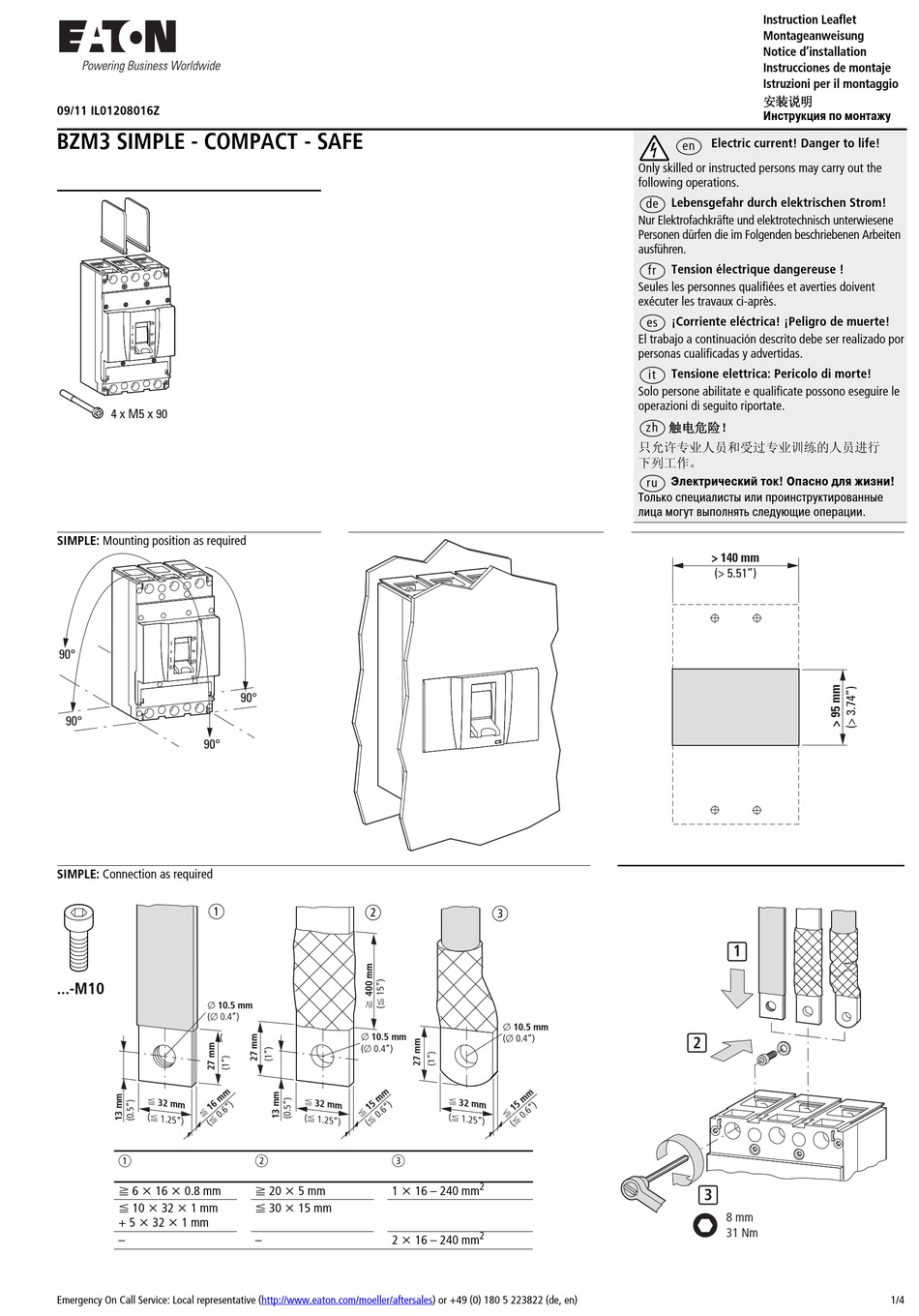

BZM3 SIMPLE - COMPACT - SAFE
ON
I
+
TRIP
I
OFF
0
I
4 x M5 x 90
SIMPLE: Mounting position as required
ON
I
90°
+
TRI P
I
OF F
0
I
90°
90°
SIMPLE: Connection as required
a
...-M10
o 10.5 mm
(o 0.4")
(
F 3 2 m m
(F 1 .2 5 " )
a
f 6 x 16 x 0.8 mm
F 10 x 32 x 1 mm
+ 5 x 32 x 1 mm
Emergency On Call Service: Local representative (http://www.eaton.com/moeller/aftersales) or +49 (0) 180 5 223822 (de, en)
90°
b
o 10.5 mm
(o 0.4")
F 3 2 m m
(F 1 .2 5 " )
b
c
f 20 x 5 mm
1 x 16 – 240 mm
F 30 x 15 mm
2 x 16 – 240 mm
ON
I
+
TRI P
I
OF F
I
0
c
o 10.5 mm
(o 0.4")
F 3 2 m m
(F 1 .2 5 " )
2
2
Instruction Leaflet
Montageanweisung
Notice d'installation
Instrucciones de montaje
Istruzioni per il montaggio
安装说明
Инструкция по монтажу
Electric current! Danger to life!
en
Only skilled or instructed persons may carry out the
following operations.
Lebensgefahr durch elektrischen Strom!
de
Nur Elektrofachkräfte und elektrotechnisch unterwiesene
Personen dürfen die im Folgenden beschriebenen Arbeiten
ausführen.
Tension électrique dangereuse !
fr
Seules les personnes qualifiées et averties doivent
exécuter les travaux ci-après.
¡Corriente eléctrica! ¡Peligro de muerte!
es
El trabajo a continuación descrito debe ser realizado por
personas cualificadas y advertidas.
Tensione elettrica: Pericolo di morte!
it
Solo persone abilitate e qualificate possono eseguire le
operazioni di seguito riportate.
触电危险!
zh
只允许专业人员和受过专业训练的人员进行
下列工作。
Электрический ток! Опасно для жизни!
ru
Только специалисты или проинструктированные
лица могут выполнять следующие операции.
> 140 mm
(> 5.51")
1
2
3
8 mm
31 Nm
1/4
