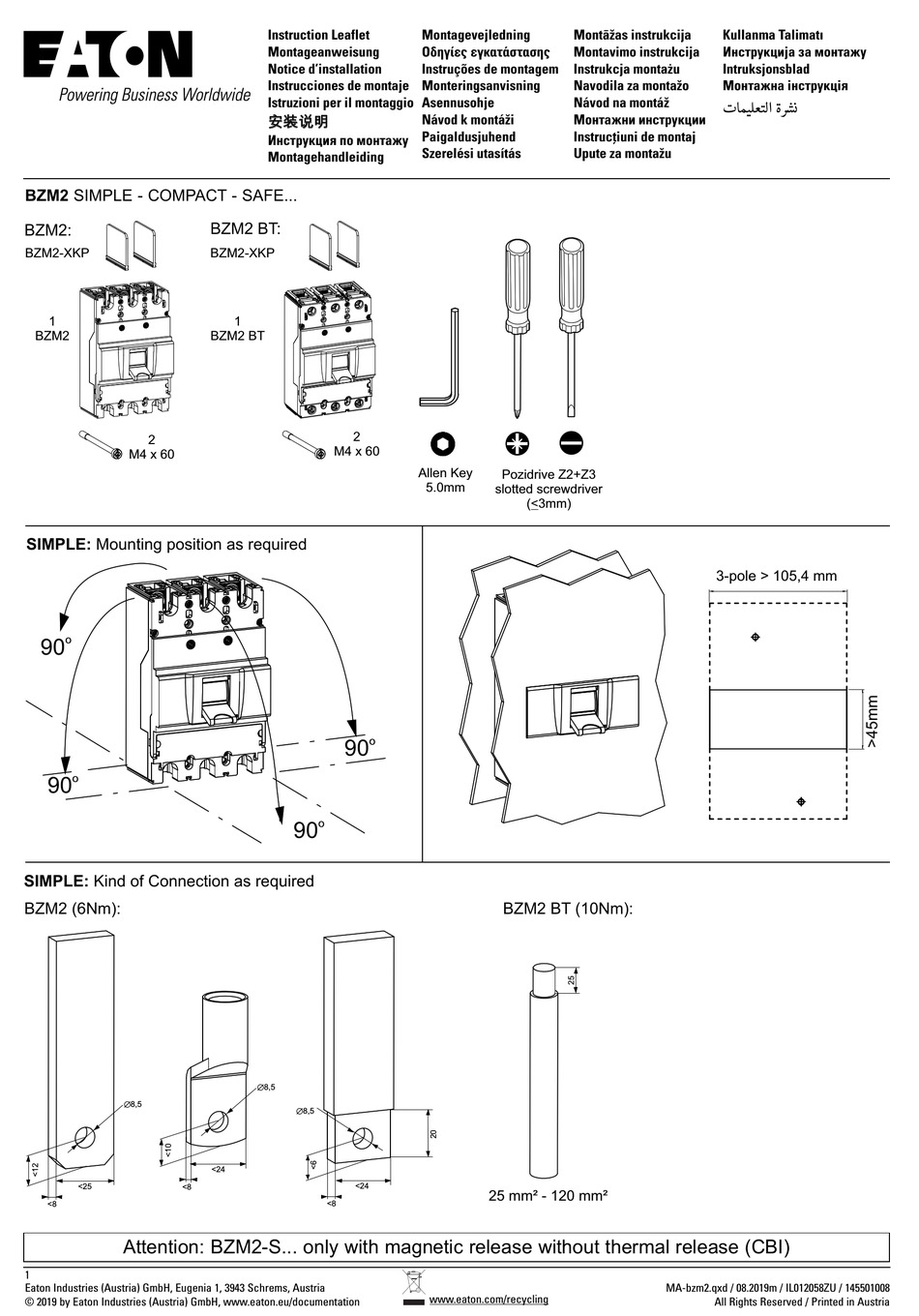

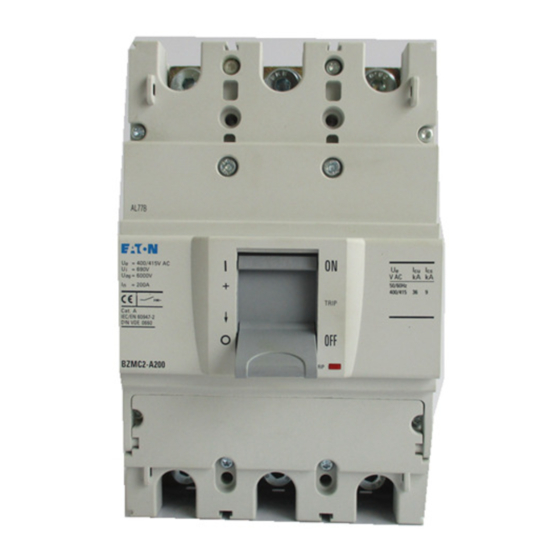

Eaton BZM2 Instruction Leaflet

BZM2 SIMPLE - COMPACT - SAFE...
BZM2:
BZM2-XKP
1
BZM2
2
M4 x 60
SIMPLE: Mounting position as required
o
90
o
90
SIMPLE: Kind of Connection as required
BZM2 (6Nm):
Æ8,5
Attention: BZM2-S... only with magnetic release without thermal release (CBI)
1
