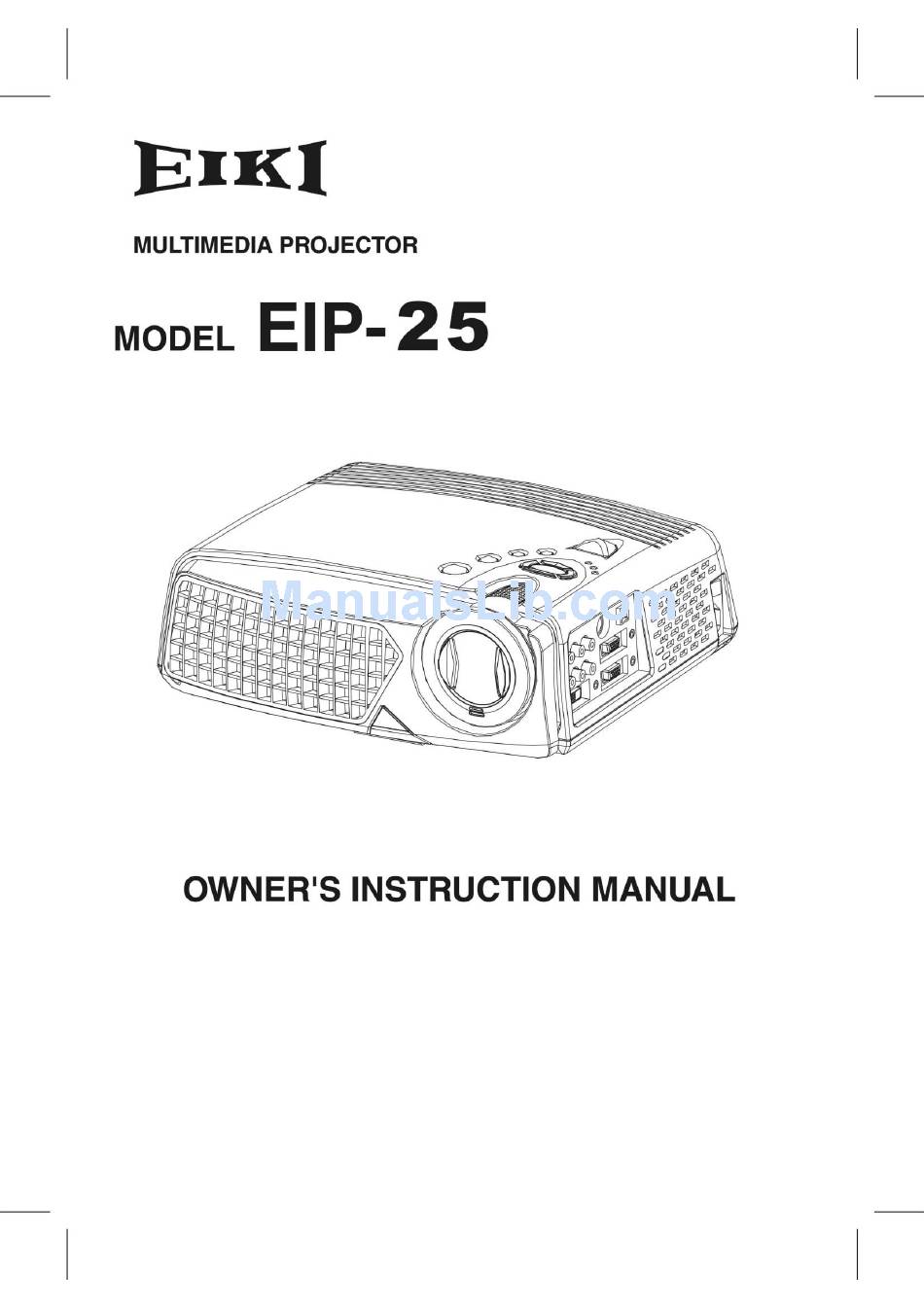

Page 2: Table Of Contents
Table of Contents ···················································································· 1. Introduction ··························································································· 2. Features 3. Operation notice 4. Projector figure 4.1 Function list of control panel ···················································································· 5. Accessories 5.1 Remote control 5.2 Function list of remote control panel 6. Operation guide 6.1 Connecting component 6.2 How to connect the projector to your computer 6.3 How to connect the projector... -
Page 3: Introduction
1.Introduction Please read this manual carefully before using, to find out: • How to use the projector safely • How to use the remote control • How to set up and connect the projector • How to start and turn off the projector •... -
Page 4: Operation Notice
3.Operation notice: Please read and follow the following safety instructions and description carefully. Inappropriate operation method may result in fire, electrical shock, and personal injury or shorten the life span of projector. Warning: Do not cover the lens while the lamp lights up. Warning: To protect your eyes, do not look directly into the projector’s light source. -
Page 5: Projector Figure
4.Projector figure 4.1 Function list of control panel: ↑↓←→ LAMP LED TEMP LED POWER LED Control panel Infrared remote sensor Zoom ring Focus ring Lens Cap POWER MENU SOURCE AUTO/ENTER... - Page 6 Power LED (Indicator light) • When the projector is on, Power LED will blink. Press “Power” button to enter screen, Power LED remains lit continually. Temp LED (Indicator light) • When fan malfunctions, the screen will shows the message stating “fan error, system is forced to turn off!”.
- Page 7 (Up and down button) • OSD active: Press to move between menu options. • OSD inactive: Press to select the video input source. (Left and right button) • When using these buttons, press ”Auto/Enter” button then press right key to add setting value;...
-
Page 8: Accessories
5.Accessories You should check to make sure the accessories below are complete with nothing missing. For any missing accessory, please contact the local distributor. Projector lens cap power cord Component Video cable Composite Video cable PC Audio in/out cable S-Video cable VGA cable USB cable Carry bag... -
Page 9: Remote Control
5.1 Remote Control The infrared sensor is located on the top of the projector. The distance between the sensor and remote control should not exceed 10 meters for the remote control to function correctly. How to insert batteries in the remote control: 1) Remove the battery compartment cover. -
Page 10: Function List Of Remote Control Panel
5.2Function list of remote control panel: Function key • Freeze/Esc/L OSD inactive: press this button to freeze the display image. Press again to resume motion. • OSD active: press this button to exit. • Mouse active: Use as the left mouse button. •... - Page 11 • Press this button, then press right and left button to execute keystone correction. • Press bottom. • Press top.(*) • Do not activate when displaying text or spreadsheets to eliminate text distortion. • OSD inactive: The same as the Up, Down, Left, Right control button on the panel.
-
Page 12: Operation Guide
6.Operation guide 6.1 Connecting components You can connect the projector to your computer, DVD player or VCR. To connect the projector to a DVD player or VCR, go to “Connecting to a DVD player or VCR” on page 12. VGA In/Out port USB In port S-Video In port Composite Video port... -
Page 13: How To Connect The Projector To Your Computer
6.2 How to connect the projector to your computer 1) Plug the VGA cable into the VGA port at the left side of projector, then plug the other end of VGA cable into the computer. Note: If you are connecting to a notebook, you may need to make adjustments to the notebook’s display settings first. -
Page 14: Turning On The Projector
After you have connected all components to the projector, you are ready to begin using the projector. 6.4 Turning on the projector: 1) Remove the lens cap. 2) Ensure the cable connectors have connected properly. 3) Plug the power cord, press the main switch on the top of power cord socket of the projector, Power LED blinks steadily and slowly. -
Page 15: Turning Off The Projector
6.6 Turning off the projector 1) Press “Power” button to turn off the projector lamp. 2) When you press the “Power ” button, you will see the message stating “Press Power again to turn off the lamp!”. At this time, you only have to press “Power”... -
Page 16: Adjusting The Image Focus And Zoom
To lower the projector 1. Press and hold the Adjustor-foot release button. 2. Lower the projector to the height you want, then release the button to lock the foot into position. 6.8 Adjusting the image focus and zoom Zoom Wheel Focus ring You can adjust the zoom ring to magnify or minify the image. -
Page 17: Osd Menu
7.OSD Menu Press “Menu” button to open the menu. Press up and down button to choose the OSD options or press Esc to exit. To enter the submenu, please press “Auto/Enter” button or right button. Under the submenu, press “Menu” or the Esc button on the remote control to return to Menu main screen or double click to exit the OSD menu. -
Page 18: Image (Video Mode)
Image (Video mode) Submenu Description options Adjusts the brightness of the Brightness display image. Adjusts the contrast of the Contrast display image. Adjusts the balance between red and green color levels. Changes the display image Saturation from black and white to color. Adjusts the sharpness of the Sharpness display image.. -
Page 19: Display (Computer Mode)
7.3 Display (Computer mode) Submenu options Minimizes any vertical bars Frequency or stripes visible on the screen background. Phase Removes any horizontal distortion and clears or sharpens the displayed characters. Adjusts the display image V position up and down. Adjusts the display image H position left and right. - Page 20 Switches between a display Proportion image mode of 4:3 or 16:9. Activates individual red, User color green, or blue color correction controls. Customizes the red color Red Gain levels. Customizes the green color Green Gain levels. Customizes the blue color Blue Gain levels.
-
Page 21: Display (Video Mode)
7.4 Display (Video mode) Submenu options Corrects a display image Keystone that is wider at the top or at the bottom. To choose the screen Proportion image proportion 16:9 or 4:3. * Press “Auto” button to return to previous setting. Description •... -
Page 22: Audio
7.5 Audio Submenu options • Volume • • Balance • • Treble • To adjust the low frequency of the sound source. Bass • • • Mute * Press “Auto” button to return to previous setting. Description or operation method Press button to decrease the volume. - Page 23 7.6 Management Submenu options Adjusts the position of the OSD OSD location within the display image. (Projection before the screen) Projection Default (Projection behind the screen) Flips the display image so it can be viewed correctly when the projector is set up for rear screen projection.
- Page 24 Resets the lamp timer after Lamp Reset replacing the lamp module. Auto Adjust Automatically adjusts the display image to the ideal settings for the display source. Reset All Returns all settings to the factory defaults. Switches between available vide Source type input sources.
-
Page 25: Language
7.7 Language Changes the language of the OSD menu. Choose between English, German, French, Italian, Spanish, Portuguese, Japanese, Traditional, Chinese, and Simple Chinese. -
Page 26: Maintenance And Service
8. Maintenance and service Change the module lamp immediately when the lamp life reaches 1500 hrs to maintain the best projection image. 8.1 Replacing the lamp module When the lamp is within 30 hours of maximum lamp life, projector will display a warning automatically stating, “Lamp has reached its end of life! Lamp replacement is suggested!”. -
Page 27: Cleaning The Projector Lens
8.2 Cleaning the projector lens Please follow the following procedures to clean the projector lens: 1 Pour out a little cleaner on a clean soft cloth. Do not use the cleaner with particle, the cleaner that contains solvent or other chemicals of poor quality, they may cause damage to the projector lens. -
Page 28: Appendix
9. Appendix 9.1 Common problems and solutions When you encounter problems while using the projector, please refer to the following contents: If the suggestions in the troubleshooting section does not correct the problem, please contact the local distributor or our customer service center. No picture on the screen Make sure that all components are connected correctly and securely in accordance to the connection method and line that is introduced in the previous... - Page 29 The focus of display image is blurred Adjust the focus ring on the projector. Make sure the projection screen is 1.4 ~12 meters from the projector. Projected colors don’t match the computer or video player’s colors This is a normal phenomenon; just adjust the brightness, color or contrast value in the menu.
- Page 30 9.2 The distance proportion between screen and projector (Based on Zoom Ratio 1.18:1, for reference only) Projection distance Tele Projection screen size Wide Projection screen size 1.45M 30” 40” 80” 35” 47” 94” 120” 240” 141” 283”...
-
Page 31: Specifications
90 to 240 VAC, 50 to 60 Hz 350W DVI, USB Mouse, RGB In(D-Sub 15 pin), RGB Out(D-Sub 15 pin), Component Video, S-Video Mini DIN 4 pin, Audio: RCA Jack, 3.5mm Mini Jack, Composite Video(RCA Jack), PC Audio In, PC Audio Out, 2 watt speaker EIP-25...
