Installation Diagram - Eclipse AVN6610 Installation Manual

Installation Diag
Installation Diag
13

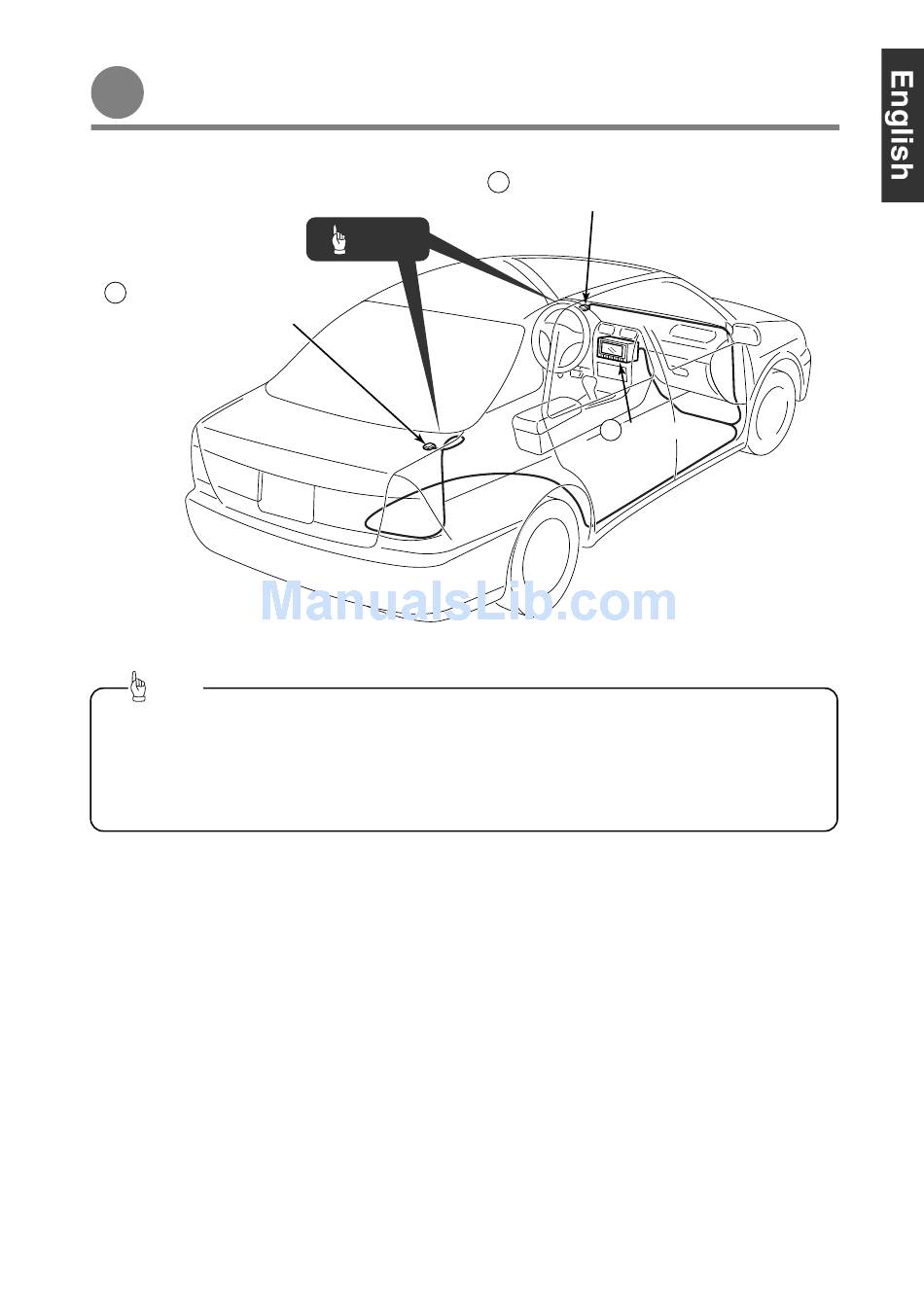

GPS antenna
(When installing outside the vehicle)
Tip
• • If installing the GPS antenna inside the vehicle, the location and the slope of the vehicle's windshield
will determine the accuracy of the GPS antenna to receive the GPS signal. If the GPS antenna
location inside the vehicle is hindering the accuracy of the GPS antenna, then you may want to install
the antenna outside of the vehicle.
• • The materials used in front and rear vehicle windows can cause GPS reception sensitivity to drop
significantly. If this happens, install the GPS antenna on the outside of the vehicle.
r am
r am
13
GPS antenna
(When installing inside the vehicle)
Tip
- 5 -
1 Main unit
