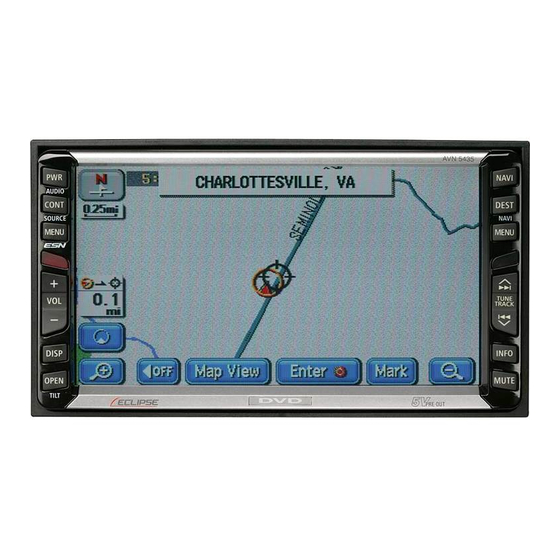

Esn es 6.5" wide tft touch-panel display and cd/dvd multi-source receiver with dvd navigation
Hide thumbs Also See for avn5435:
Table of Contents

Advertisement

Quick Links

See also: Reference Manual , Owner's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the avn5435 and is the answer not in the manual?

Questions and answers

Related Manuals for Eclipse avn5435

Summary of Contents for Eclipse avn5435

  • Page 2 Warnings and caution signs, illustrated below, are posted throughout this manual as well as on the AVN5435. They show safe and correct ways to handle the product so as to prevent personal injury to you and others and avoid damage to property.Before reading through the manual, take time to read through and learn the important information listed in this section.

  • Page 3: Table Of Contents

    Table of Contents Introduction How to use this manual ......10 Features ......... 12 Before using the deck .
  • Page 4 Setting LOUDNESS ........31 Setting subwoofer level .
  • Page 5 Turning off the CD player ........
  • Page 6 Turning off the CD player ........
  • Page 7 How to operate the DVD player Before using the DVD player ......66 DVD video characteristics ........66 About Multiple Languages .
  • Page 8 Table of language codes ........89 How to use the VTR .
  • Page 9 Usage when a SIRIUS satellite radio tuner is connected..113 About using the CD player/CD changer ..... . . 113 About using the MP3 player .

  • Page 11: Introduction

    Introduction How to use this manual Item title A number and title is assigned for each item. Operation title A title is assigned for each operation purpose. Operation screen A screen showing the operation will appear. Detailed operation title A title is assigned for each detailed operation purpose.
  • Page 12 Section side heading Only the section side heading will appear. Attention Additional points regarding the operations are given here.

  • Page 13: Features

    Introduction Features DVD player with sharp video and dynamic sound (Page 66) Plays DVD Video recorded with high quality images and sound. (DVD media is able to record a movie with high quality video and digital sound that exceeds the quality of CD media.) MP3 player for music discs having 1/10 compression (Page 52) Plays CD-R (recordable) discs that have been...
  • Page 14 Selection and display of favorite wallpaper (screen backgrounds) (Page 32) Wallpaper of your choice can be switched and displayed for use as the background of the information screen and audio playback screens. The screen from a navigation unit can also be linked and selected.
  • Page 15 Introduction Features • SIRIUS tuner (Page 46) SIRIUS is a satellite broadcasting service offering music, news, sports and other programming with CD-quality sound; it is available on paying a subscription. System additions • CD changer (Page 62) A CD changer enables non-stop playing of multiple discs, for convenience at times such as taking a long drive.

  • Page 16: Before Using The Deck

    Introduction Before using the deck • Be very careful and pay full attention to safety when operating the audio controls while driving, otherwise accidents may occur. Also be sure to set volume so that you can still adequately hear sounds outside the vehicle. Improper use can contribute to occurrence of a traffic accident.
  • Page 17 Introduction Before using the deck • Do not apply excessive force to the monitor. Damage could result. • Do not place items such as cups or cans on top of the monitor, and do not leave the monitor tilted down when not in use.

  • Page 18: About Playable Discs

    About discs • Water droplets can form on the inside of the unit during cold or rainy weather in the same way car windows can fog up. (This is condensation.) When this happens, the audio can jump and playback can stop, so ventilate or dehumidify the vehicle for a short time before operating the equipment.

  • Page 19: About Handling Discs

    Introduction Before using the deck Rough Edges Ballpoint pen About handling discs • Be sure to store discs in their cases and keep them out of direct sunlight. Discs can warp and become unusable. • Do not apply paper-based tape to either the recording side or label side of a disc.

  • Page 20: About Rental Discs

    Cellophane tape • Do not use CD discs with attached cellophane tape, rental CD discs with glue protruding from labels or discs with the residue of peeled adhesives. Using discs with those conditions can prevent the player from properly Recorded surface opening and closing as well as cause other damage.

  • Page 21: Basic Operation

    Basic operation Switching the mode The deck can be used when the vehicle's ignition switch is on or in the ACC position. • This deck supports use of a remote control. The optional remote control is sold separately and can be purchased at your local retailer. Refer to page 94 for instructions on operation of the remote control.

  • Page 22: Operation Screen Of Each Mode

    Operation screen of each mode The operation screen for each mode will appear as shown below. ● AM radio operation screen ● CD player operation screen ● DVD player operation screen ● SIRIUS operation screen (optional) ● VTR operation screen (optional) When the operation screen for DVD or video (VTR) has not been operated for 6 seconds or more, the operation screen will automatically be canceled.

  • Page 23: Adjusting The Volume

    Basic operation Adjusting the volume Adjusting main volume Press the VOLUME switch. Pressing will increase volume. Pressing will decrease volume. • Each press of the switch will change the volume by two steps. When the volume reaches 50 or higher, the switch will change the volume by one step.

  • Page 24: Adjusting Sound Quality

    Basic operation Adjusting sound quality To adjust sound quality, touch the DSP, EQ or POS switch while the operation screen for a mode is displayed. Adjustments made in any mode will be saved and applied to all modes. In the DVD mode, display the sound quality adjustment switches by pressing from the operation modes, and then CONT either by pressing...

  • Page 25: Setting Dsp (Acoustics)

    Basic operation Adjusting sound quality Setting DSP (acoustics) The DSP function reproduces the sensation of various factory set performance environments by adding reverberation to the music being played. Touching the DSP touch switch brings up the acoustics mode screen as shown. •...

  • Page 26: Resetting Dsp (Acoustics) Levels

    Resetting DSP (acoustics) levels Default settings for the currently adjusted and saved DSP (acoustics) level can be reset. Touch until a beep is heard. • The acoustics level will be returned to default value. THEATER • Only has a default value of +5, in order to increase the sound effects of products such as DVD videos.

  • Page 27: Adjusting Eq (Equalizer)

    Basic operation Adjusting sound quality Adjusting EQ (equalizer) Adjusts sound quality to preferred characteristics according to the music genre and audio source. Each factory set equalizer pattern can be selected and adjusted to preference. Touching the touch switch brings up the equalizer mode screen as shown in the table.

  • Page 28: Resetting Eq Patterns

    Adjusting and saving equalizer (EQ) patterns Apart from these preset equalizer patterns, you can adjust and record other equalizer patterns to suit your own sound preferences. Touch the screen and slowly draw the image of the preferred equalizer curve with your finger. To make fine adjustments, touch the switch for the frequency to be adjusted.

  • Page 29: Setting Pos (Position Selector)

    Basic operation Adjusting sound quality Setting POS (position selector) The stereophonic position for obtaining optimum acoustic effects can be adjusted to match the number and position of passengers. In addition, front-to-back, right-to-left volume balance can be adjusted for the selected position.

  • Page 30: Adjusting Volume Balance

    Adjusting volume balance The set position for front-to-back, right-to-left volume balance can be adjusted. Touch on the POSITION setting screen to display the volume balance adjustment screen. Touch the screen at the preferred balance point. • To make fine adjustments, touch CENTER •...

  • Page 31: Setting The Beep Tone

    Basic operation Adjusting sound quality Setting the BEEP tone The guide tone that is emitted when touching a panel switch or touch switch can be set to on or off. Touch SETTING Touch • The pressed touch switch will become green. •...

  • Page 32: Setting Loudness

    Basic operation Setting LOUDNESS Audio can be modulated to correct for insufficient low and high sounds when listening at low volume. Touch SETTING on the INFORMATION screen. Touch LOUDNESS. • The pressed touch switch will become the selection color. Touch ENTER Setting subwoofer level When a woofer is connected, the preferred output level for audio can be set.

  • Page 33: Setting Background Screen

    Basic operation Setting background screen The background for the audio screen, information screen and navigation screen can be changed to a preferred wallpaper. Setting the wallpaper Touch SETTING on the INFORMATION screen. Touch PAPER. • The pressed touch switch will become green and the wallpaper (background) will change.

  • Page 34: Adjusting/Setting The Screen

    Adjusting/setting the screen Quality adjustments can be made for the images such as the audio operation screen, navigation screen and DVD or VTR (optional). Displaying the image adjustment screen Contrast, brightness and other picture settings can be adjusted to match preferences for viewing DVD video or the audio operation screen.

  • Page 35: How To Switch To Daytime Display When The Lights Are On

    Basic operation Adjusting/setting the screen Press DISP on the audio mode screen or DVD/VTR screen. Touch ENTER after making any adjustments. • If no adjustments are made after 20 or more seconds, the image quality adjustment screen will be canceled. ●...

  • Page 36: Adjusting Image Quality

    Adjusting image quality The day screen and night screen can be separately adjusted (on the audio operation screen, the navigation screen, and the DVD/VTR screen). ● When adjusting audio operation screen or navigation screen ■ CONTRAST Touch to strengthen contrast, ■...
  • Page 37 Basic operation Adjusting/setting the screen ■ NORMAL mode The screen is shown with vertical to horizontal ratio of 3 to 4 (normal TV screen size) and side edges are black. ■ WIDE 2 mode The screen for vertical to horizontal ratio of 3 to 4 (normal TV screen size) is uniformly expanded in the left and right directions (except for the central section...
  • Page 38 Basic operation...

  • Page 39: How To Operate The Tuner

    How to operate the tuner Operating the AM/FM radio Button (SOURCE) MENU Button TITLE Switch Listening to the AM/FM radio Press (SOURCE) MENU Touch to receive AM radio, or When an HD radio (IBOC) tuner is connected, the standard radio (analog radio) is also controlled through the HD radio tuner.

  • Page 40: Selecting Radio Stations

    Selecting radio stations Press • Each pressing of the switch moves the frequency one step up or down. (One step on the AM band is 10kHz. One step on the FM band is 0.2MHz.) (up switch): Raises frequency (down switch): Lowers frequency Automatic selection Press and hold the •...

  • Page 41: Saving Radio Stations

    How to operate the tuner Operating the AM/FM radio Saving radio stations There are two modes for saving radio stations, manual and AUTO.P, and these modes operate independently. Confirm that "AUTO.P" is not displayed in the upper part of the screen. •...
  • Page 42 About AUTO.P Because AUTO.P temporarily saves stations for the preset switches, stations saved manually will remain in memory even if AUTO.P is used. By manually saving stations that are used regularly, these manually saved stations can be restored even after AUTO.P has been used, such as after traveling. AUTO.P Touching while AUTO.P is being used or after AUTO.P has been used...

  • Page 43: Displaying Information About The Track Being Played

    How to operate the tuner Operating the AM/FM radio Displaying information about the track being played Information about the current track, such as the name of the radio station, the album and the title of the track can be displayed. Touch TITLE TITLE OFF...

  • Page 44: Operation When An Hd Radio (Iboc) Tuner Has

    How to operate the tuner Operation when an HD RADIO (IBOC) tuner has been connected Button (SOURCE) MENU Button Title Switch Listening to HD RADIO (IBOC) When receiving HD Radio (High Definition Radio) broadcasts, FM reception has the same quality as a CD, and AM reception has the same quality as conventional FM sound. Depending on the reception status, HD Radio can also receive analog broadcasts, which means reception is still possible in regions with no digital coverage.

  • Page 45: Selecting Radio Stations

    How to operate the tuner Operation when an HD RADIO (IBOC) tuner has been connected Selecting radio stations Press • Each pressing of the switch moves the frequency one step up or down. (One step on the AM band is 10kHz. One step on the FM band is 0.2MHz. (up switch): Raises frequency (down switch): Lowers frequency Press and hold the...

  • Page 46: Saving Radio Stations

    Saving radio stations There are two modes for saving radio stations, manual and AUTO.P, and these modes operate independently. Refer to "Operating the AM/FM radio" on page 40. Refer to "Operating the AM/FM radio" on page 40. Changing stations saved by AUTO.P Refer to "Operating the AM/FM radio"...

  • Page 47: Operation When A Sirius Satellite Radio Tuner Has

    How to operate the tuner Operation when a SIRIUS satellite radio tuner has been connected Button (SOURCE) MENU Button DIRECT Switch CATEGORY Switch Listening to SIRIUS satellite radio With SIRIUS satellite radio, over 100 channels are available including music, news, and entertainment programs.

  • Page 48: Changing The Sirius Band

    Changing the SIRIUS band Touch BAND on the SIRIUS operation screen. • The BAND changes. [SIRIUS 1] [SIRIUS 2] Selecting the channel you want to listen to Selecting from the available categories CATEGORY Touch Select the category that you want. •...

  • Page 49: Displaying Information About The Track Being Played

    How to operate the tuner Operation when a SIRIUS satellite radio tuner has been connected Displaying information about the track being played During SIRIUS broadcasts, information including the channel name, the album name, the title, and the artist can be displayed for the current track. Touch TITLE TITLE OFF...
  • Page 50 RADIO...

  • Page 51: How To Operate The Cd Player

    How to operate the CD player How to use the CD player Button (SOURCE) MENU Button Listening to a CD When a CD is inserted into the disc slot, it automatically starts playing. Press (SOURCE) MENU Touch • Playback will begin.

  • Page 52: Fast-Forwarding/Rewinding

    • The song to be played next is randomly selected at the end of current song, so it is possible that a single song could end up being played twice in a row. Turning off the CD player Press • Pressing...

  • Page 53: How To Operate The Mp3 Player

    How to operate the MP3 player How to use the MP3 player For safety considerations, some functions are disabled while the vehicle is in motion. Button (SOURCE) MENU Button The following operating procedures are based on this example of MP3 file structure below. Example of MP3 file structure Repeat Random...

  • Page 54: Playing Mp3

    Touch • Playback will begin. • The CD player screen will be shown for about 2 seconds as the system checks whether the inserted CD is a music CD or an MP3 disc. • Normally, tracks are played back in the order •...

  • Page 55: Fast-Forwarding/Rewinding

    How to operate the MP3 player How to use the MP3 player Fast-forwarding/rewinding It is possible to fast-forward/rewind in the song being played. Press and hold the • (up): Fast-forwards (down): Rewinds The deck switches to the fast-forward (rewind) mode when the beep is heard and will continue fast-forwarding (rewinding) until your finger is removed from the switch.

  • Page 56: Repeating The Same Music File

    Repeating the same music file Touch • The file currently being played will be repeated. • Setting RPT will cause repeating of the song until the function is canceled. Touching again will cancel repeating of the song. Playing songs in random order Touch RAND •...

  • Page 57: About Display Of File Information

    How to operate the MP3 player How to use the MP3 player About display of file information Folder names and file information (album name and song titles) recorded on the disc can be displayed. The number of characters that can be displayed is as shown below. Screen Display Folder/file names 8 characters max.

  • Page 58: About Mp3

    About MP3 MP3 (MPEG-1 Audio Layer III) is a standard format for audio compression technology. By using MP3, a file can be compressed to one-tenth the size of the original. This unit has limitations on MP3 file standards and recorded media and formats that can be used.

  • Page 59: Format Of Discs

    How to operate the MP3 player How to use the MP3 player The format of discs to be used must be ISO9660 Level 1 or Level 2. Also be sure to use "MODE 1" for recording. Discs recorded with "MODE 2" are not supported. MP3 files recorded in a format other than the one explained above may result in files that cannot be played normally and in file names and folder names that do not display properly.

  • Page 60: File Names

    Only files with the MP3 file extension ".mp3" can be recognized as MP3 and played. Be sure to save MP3 files with the ".mp3" file extension. Use half-width English capital letters to write "MP" of the extension. Multisessions are supported and CD-R/RW with recorded MP3 files can be played. When written with "Track at once", however, finalize the disc with session close or write protect.

  • Page 61: Making And Playing Mp3 Files

    How to operate the MP3 player How to use the MP3 player Making and playing MP3 files MP3 files created by recording broadcasts, records, audio recordings, video recordings or live performances cannot be used for purposes other than personal entertainment without permission of the copyright holder as set forth in copyright law.

  • Page 63: How To Operate The Cd Changer

    (SOURCE) MENU When only one CD changer is connected, touch changers are connected, touch Selecting a song Refer to "How to use the CD player" (Page 50). Fast-forwarding/rewinding Refer to "How to use the CD player" (Page 51). Disc Disc...

  • Page 64: Selecting A Cd

    Touch one of the disc changing switches. • The number for the selected CD will change color. Searching for a song or CD from all CDs in changer Refer to "How to use the CD player" (Page 51). Touch DISC SCAN •...

  • Page 65: Playing Songs In Random Order

    How to use the CD changer Playing songs in random order Playing songs on current CD in random order Refer to "How to use the CD player" (Page 51). Playing songs on all CDs in random order Touch DISC RAND DISC RAND •...
  • Page 66 CD changer...

  • Page 67: Before Using The Dvd Player

    How to operate the DVD player Before using the DVD player This unit can play high quality images and high quality digital sound of DVD videos. It is also possible to switch between different languages recorded on the DVD video (dubbing, subtitles, etc.), and with videos having several angles of the same scene recorded, the preferred angle can be selected and played.

  • Page 68: About Subtitles

    Some DVD discs have subtitles recorded in several different languages, and the subtitles can be switched during playback. The video can also be played without any subtitles displayed. About discs This unit conforms to NTSC color television methods, so please use discs that display "NTSC" on the disc or package.

  • Page 69: About Region Codes Of Playable Discs

    How to operate the DVD player Before using the DVD player About region codes of playable discs Some DVD discs display a geographical region where the disc can be played. This unit will not play discs that do not show "1" or "ALL" in this mark. Even if the disc does play, the message "Cannot play this disc" will be displayed on the screen.

  • Page 70: About Marks Displayed On Discs

    About marks displayed on discs The following marks may be displayed on a DVD disc or its package. Mark Meaning Shows number of voice tracks. Shows number of subtitle languages. Shows number of filmed angles. Shows available aspect ratio (television screen horizontal to 16:9 LB vertical ratio).

  • Page 71: About Dvd Disc Structure

    How to operate the DVD player Before using the DVD player Videos and songs recorded on a DVD are divided into many segments. Large segments are called "titles", and each title has a number ("title number"). Title segments are further divided into smaller segments called "chapters", and each chapter has a number ("chapter number").

  • Page 72: About Flow Of Operations

    About flow of operations The section below describes the flow for items such as operation and search of images and default settings for the DVD player. • Touching a touch switch brings up the operation screen shown below. ● DVD operation screen BACK ●...

  • Page 73: How To Use The Dvd Player

    How to operate the DVD player How to use the DVD player A DVD can be watched only if the vehicle is completely stopped in a safe location with the parking brake set and the ignition switch turned to ON or ACC. (Only sound can be heard if a DVD is played while the car is in motion.) Button (SOURCE) MENU...

  • Page 74: Operating The Video

    Operating the video Touch Fast-forwarding/rewinding It is possible to fast-forward or rewind through the video being played. Press and hold the • (up): Advances the video (down): Rewinds the video • The deck switches to the fast-forward (rewind) mode when the beep is heard and will continue fast-forwarding (rewinding) until your finger is removed from the switch.

  • Page 75: Pausing The Video

    How to operate the DVD player How to use the DVD player Touch • While paused ( will play in slow motion and touching will play frame-by- frame. Touch Pausing the video ), briefly touching Stopping the video...

  • Page 76: Operating The Disc Menu

    Operating the disc menu It is possible to use the menu recorded on the disc. Touch on the DVD operation screen. Touch MENU TOP MENU Touch Touch the video to play. Touch ENTER Turning off the DVD Press • Pressing again will start playing.

  • Page 77: Searching For A Desired Chapter

    How to operate the DVD player How to use the DVD player Searching for a desired chapter It is possible to search for a particular video segment by title and chapter or by menu number (number for divided segments). Press •...

  • Page 78: Searching By Menu Number

    Searching by menu number Touch on the DVD operation screen. Touch Touch NUMBER • The menu number input screen will be displayed. Input the menu number by touching • Touching changes the menu number by ones. • Touching changes the menu number by tens. Touch ENTER on the DVD...

  • Page 79: Changing The Touch Switch Display

    How to operate the DVD player How to use the DVD player Changing the touch switch display Display of the touch switches can be changed or turned off. Turning off the touch switches Touch on the DVD operation screen. CONT •...

  • Page 80: Switching Between Screen Display And Audio

    Switching between screen display and audio It is possible to change the language for subtitles, the language for audio and the display angle for the video being played. Switching the video angle When several angles of a scene are recorded on a disc, the angle can be switched. Touch on the DVD operation screen.

  • Page 81: Switching Subtitle Languages

    How to operate the DVD player How to use the DVD player Switching subtitle languages When subtitles in several languages are recorded on a disc, the subtitles can be switched. Touch on the DVD operation screen. Touch SUB TITLE • The subtitle number and language will be displayed.

  • Page 82: Switching Dubbed Audio Language

    Switching dubbed audio language When dubbed voices in several languages are recorded on a disc, the voices can be switched. Touch on the DVD operation screen. Touch AUDIO • The audio number and language will be displayed. Touch AUDIO • The audio number will change and the language of voices being played will be switched.

  • Page 83: Setting The Dvd Player

    How to operate the DVD player How to use the DVD player Setting the DVD player The language preference for voices, subtitles and menu display used during DVD playback can be set in advance. Optional display of the multiple angle mark, viewer restriction and other functions can also be set.

  • Page 84: Setting The Audio Language

    Pressing one of the switches that can switch screens ( (SOURCE) MENU the default setting screen will stop playing of the DVD. Touch operation screen to start playback again. (Refer to page 72.) Setting the audio language The preferred language for the video being played can be selected. Touch AUDIO LANGUAGE SET UP screen.

  • Page 85: Subtitle Language Setting

    How to operate the DVD player How to use the DVD player The preferred subtitles for the video being played can be selected. Touch SUB TITLE screen. Touch the preferred language. OTHER • Touching a language other than those displayed on the screen.

  • Page 86: Menu Language Setting

    Menu language setting Allows selection of a preferred menu language from those recorded on the disc. Touch MENU LANGUAGE SET UP screen. Touch the preferred language. OTHER • Touching enables setting of a language other than those displayed on the screen. Touch on the MENU OTHER...

  • Page 87: Setting Display Of Multi-Angle Mark (Angle Selection Mark)

    How to operate the DVD player How to use the DVD player Setting display of multi-angle mark (angle selection mark) The multi-angle mark can be set to display/not display for the video being played. Touch ANGLE INDICATOR SET UP screen. •...

  • Page 88: Viewer Restriction Setting

    Viewer restriction setting This function allows restriction of viewing so that discs with adult themes or violent scenes will not be available to children. Viewer restriction can be set at different levels to match restriction ratings. Touch PARENTAL SETTING Enter a password (4 digits) by touching one number at a time.

  • Page 89: Changing Video Output

    How to operate the DVD player How to use the DVD player Touch VIDEO OUT screen. • Each time VIDEO OUT is pressed, the screen size will be changed in the order shown below. 16:9 letter box Touch ENTER • 16:9 The video is displayed in normal wide size.

  • Page 90: Table Of Language Codes

    Table of language codes These codes are used to specify the language for audio tracks, subtitles and on-screen menu displays. Input Language code 1001 Japanese 0514 English 0618 French 0405 German 0920 Italian 0519 Spanish 1412 Dutch 1821 Russian 2608 Chinese 1115 Korean...

  • Page 91: How To Use The Vtr

    How to operate the VTR How to use the VTR Connecting a VTR deck enables watching of video tapes. Videos can be played only if the vehicle is completely stopped in a safe location with the parking brake set and the ignition switch turned to ON or ACC.

  • Page 93: How To Use The Steering Wheel Switch

    How to use the steering wheel switch About the steering wheel switches On vehicles equipped with steering wheel switches, these easy-access switches can be used to perform the main audio and other operations. Function names and summaries Channel selection (radio) switches Track selection (CD/CD changer, MP3 mode) switch Chapter selection (DVD) switch...

  • Page 94: Radio Operations

    Radio operations Switch Name • Calls up the preset broadcast channels in Channel order. selection switch • Pressing the switch until it beeps starts automatic channel selection. CD/MP3 player operations Switch Name Track selection Selects the next track or switches previous track.

  • Page 95: How To Use An Optional Remote Control

    How to use an optional remote control How to use an optional remote control (1602) The optional remote control is sold separately. Ask for one at the store of purchase. Precautions in use of the remote control • Be careful when handling the remote control, especially because it is small and light.

  • Page 96: Turning The Power On/Off

    Remote-Control light receptor Turning the power on/off When the power is turned on, the state used when the power was turned off such as CD and tuner playing is restored. Press • The power turns on or off each time the button is pressed. When the main unit is shut down, the remote control will not work.

  • Page 97: Switching Playback Modes

    How to use an optional remote control How to use an optional remote control (1602) Switching playback modes Press MODE • Press the button to switch modes in the following sequence: How to play the tuner Select the tuner mode first. Selecting a station (manually or automatically) A short press of the button will allow manual station tuning.

  • Page 98: Selecting Preset Stations

    Selecting preset stations A total of six stations may be selected (preset tuning) out of those already set in memory through the main unit. (Refer to "Saving radio stations" on page 40.) Press PRESET CH • button: Select the next higher number preset button. button: Select the next lower number preset button.

  • Page 99: How To Play Cds

    How to use an optional remote control How to use an optional remote control (1602) How to play CDs Select the CD mode first. Press BAND When one or two CD changers are connected, press player → CD changer 1 → CD changer 2. The indicator will skip a changer or player that has no discs loaded.

  • Page 100: Replacing The Battery

    Replacing the battery To prevent accidents, store batteries out of the reach of children. If a child has swallowed one, consult a doctor immediately. Use one CR2025 battery. On the back of the remote control, while pressing the locking knob on the battery slot cover toward your right, pull out the battery carrier with your fingernail.

  • Page 101: How To Use An Optional Remote Control (Rmc105)

    How to use an optional remote control How to use an optional remote control (RMC105) Precautions in use of the remote control • Be careful when handling the remote control, especially because it is small and light. Dropping or striking it hard may damage it, wear out the battery or cause a malfunction.

  • Page 102: Turning The Power On/Off

    Remote-Control light receptor Turning the power on/off When the power is turned on, the state used when the power was turned off such as CD and tuner playing is restored. Press • The power turns on or off each time the button is pressed. When the main unit is shut down, the remote control will not work.

  • Page 103: Switching Playback Modes

    How to use an optional remote control How to use an optional remote control (RMC105) Switching playback modes Press MODE • Press the button to switch modes in the following sequence: Tuner → Disc How to play the tuner Select the tuner mode first. Press BAND Each press will switch tuner modes from FM1 →...

  • Page 104: Selecting A Station (Manually Or Automatically)

    Switching disc modes Press BAND When one or two CD changers are connected, press CD player → CD changer 1 → CD changer 2. The indicator will skip a changer or player that has no discs loaded. TUNE•SEEK BAND button...

  • Page 105: Advancing To The Next Track Or Returning To The Beginning Of The Track Being Played

    How to use an optional remote control How to use an optional remote control (RMC105) DISC Advancing to the next track or returning to the beginning of the track being played Press TRACK • button: Skips to the next track. button: Returns to the beginning of the track being played.

  • Page 106: Replacing The Battery

    Replacing the battery To prevent accidents, store batteries out of the reach of children. If a child has swallowed one, consult a doctor immediately. Use two AAA-size batteries. Remove the back cover of the remote control unit by gently pressing and sliding it in the direction indicated by the arrow.

  • Page 107: For Reference

    For reference Information you should know If one of these messages appears If any of the following messages are displayed, check the unit while referring to the Cause and Remedy columns. Messages CD SEEK CD DOOR OPEN CHECK DISC NO DISC NO CD CD ERROR DVD ERROR...
  • Page 108 Messages ANTENNA ACQUIRING CALL888-539-SIRIUS SUB UPDATED INVALID UPDATING 1: If the DVD player still will not work after the disc is ejected, contact the place of purchase. 2: If this happens, wait for a while. When the temperature inside the unit returns to normal, the message will disappear and playback will start.

  • Page 109: Before Asking For Repairs

    For reference Information you should know Before asking for repairs Slight differences in operation can sometimes be mistaken for malfunctions, so check the following table before asking for any repairs. If the following fail to solve the problem, contact the place of purchase. Problem The screen is dark for a brief period when the power is turned on at low...

  • Page 110: Others

    For reference Others Products equipped with Dolby Digital Manufactured under license from Dolby Laboratories. "Dolby" and the double-D symbol are trademarks of Dolby Laboratories. Confidential Unpublished Works. Manufactured under license from Dolby Laboratories, Inc. "Dolby" and the double-D symbol are trademarks of Dolby Laboratories. Confidential unpublished work.

  • Page 111: Glossary

    For reference Glossary (Compact Disc Recordable) (Compact Disc Digital Audio) (Compact Disc ReWritable) EQ (Equalizer) (MPEG-1 Audio Layer-3) Copy Control CD (Universal Disc Format) This is a disc that can only be recorded once. CD-R Recorded data cannot be deleted. There are two types of CD-R, one having capacity of 650MB (74 minutes of music), the same as a regular CD, and the other having capacity of 700MB (80...
  • Page 112 This is a DVD video function that "Restricts Viewing Restriction playing of discs that support viewing restrictions, in accordance with the regulated levels of each country." Restrictions differ by DVD video and may completely prevent playing of the video or may skip or insert alternate scenes for extreme scenes.

  • Page 113: Index By Topic

    For reference Index by topic About screen and sound adjustment [Regarding screen adjustment] To make the audio operation screen or VTR screen easier to see "Adjusting/setting the screen" ....... . P33 To turn off the screen "Turning off the screen"...

  • Page 114: Usage When An Hd Radio (Iboc) Tuner Is Connected

    "Selecting a channel by direct input" ......P47 "Selecting from the available categories" ..... . . P47 About using the CD player/CD changer To play a CD "Listening to a CD"...

  • Page 115: About Using The Mp3 Player

    For reference Index by topic About using the MP3 player To play an MP3 file "Playing MP3"..........P53 To select a music file "Selecting a music file"...

  • Page 116: About Using The Dvd Player

    About using the DVD player To play a DVD video "Watching a DVD" ......... . . P72 To learn about discs •...

  • Page 117: About Using The Vtr

    For reference Index by topic About using the VTR To use the VTR "How to use the VTR" ........P90 Useful functions To operate the audio system by fingertip operations while driving "About the steering wheel switches"...
  • Page 118 For reference...
  • Page 119 How to use an optional remote control ... 100 How to use the CD changer ... 62 How to use the CD player ... 50 How to use the DVD player ... 72 How to use the MP3 player ... 52 How to use the VTR ...
  • Page 120 TINT ... 35 Turning off the screen ... 34 Volume balance ... 29 VOLUME switch ... 22 Wallpaper (background) ... 32 WIDE 1 mode ... 36 WIDE 2 mode ... 36 WIDE 3 mode ... 36 Woofer ... 31...

Table of Contents
