Eclipse AVN6610 Installation Manual page 15

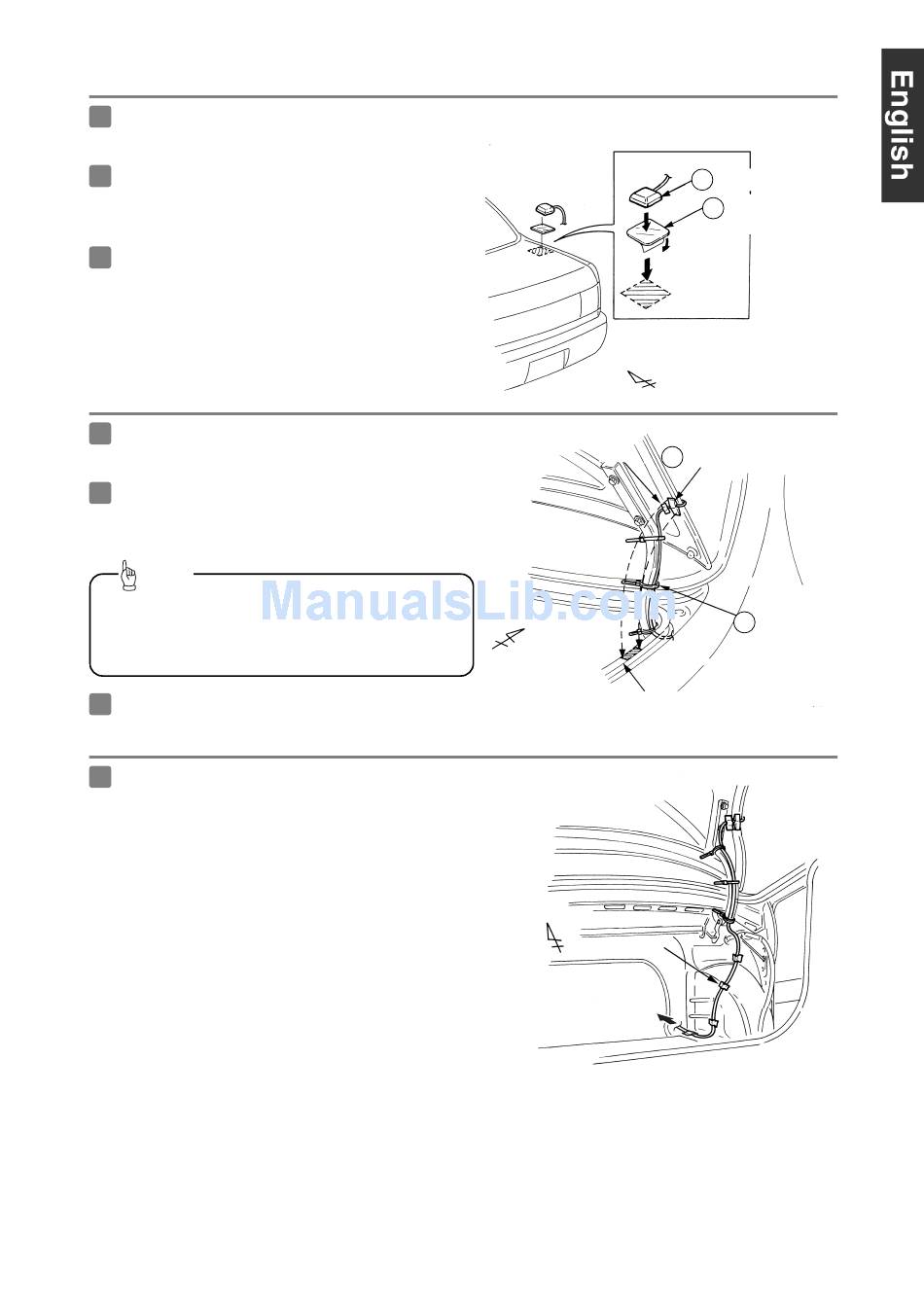

- Installation outside the vehicle (example) -
1
Choose an installation location where the GPS
antenna can be attached securely.
2
Remove the backing paper from the body
protective sheet and attach the sheet to the
vehicle.
3 Install the GPS antenna on top of the body
protective sheet.
4
Route the GPS antenna wire inside the vehicle's
trunk and secure it with tape.
5
Attach the waterproof cushion so that the GPS
antenna wire is flat against the weatherstrip when
the trunk lid is closed.
Tip
To aid in sliding the waterproof cushion in finding
the desired mounting location, apply plain or
soapy water to the waterproof cushion.
6
Route the GPS antenna wire while securing it
with wire ties.
7
Route the GPS antenna wire to the main unit
while securing it with tape.
Front of vehicle
Tape
Front of vehicle
Weatherstrip
Front of vehicle
Route to
main unit
- 15 -
13 GPS antenna
Body protective
16
sheet (clear)
14 Waterproof cushion
17
Wire tie
Tape
