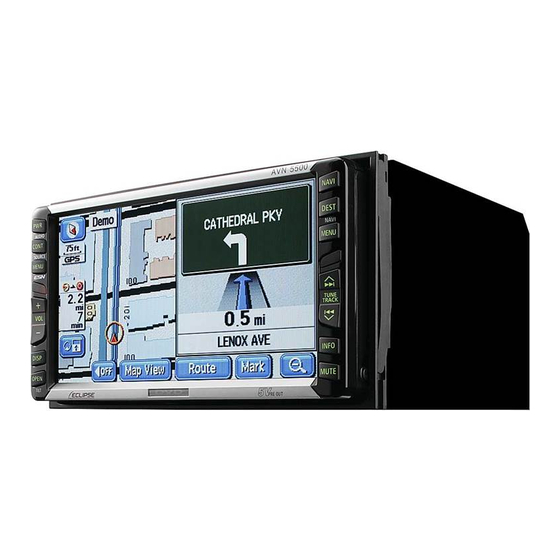

DVD Navigation System with 6.5" Wide TFT Display and DVD Multi-Source Receiver
INSTALLATION MANUAL
Be sure to read this installation manual thoroughly prior to installation and making connections. If
installation methods or non-standard parts not specified in this installation manual are used, accidents
or injury may result.
Professional installation is recommended, contact the place of purchase to schedule an appointment.
After reading the owner's manual and the installation manual thoroughly, keep them in a safe place for
later reference.
To dealers:
Give this installation manual to the customer after installation and all connections have been
completed.
Contents
Contents
Before
For your safety in using the AVN5500
installation
Names and functions of terminals
Connections
Connecting the vehicle speed pulse, parking brake, and reverse wires
Installation
MODEL
2
3
5
6
10
12
13
16
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Eclipse AVN 5500
Summary of Contents for Eclipse AVN 5500
-
Page 1: Installation Manual
DVD Navigation System with 6.5" Wide TFT Display and DVD Multi-Source Receiver MODEL INSTALLATION MANUAL Be sure to read this installation manual thoroughly prior to installation and making connections. If installation methods or non-standard parts not specified in this installation manual are used, accidents or injury may result. - Page 2 Components Components Main unit components Main unit x 1 interconnecting wires (Power and front speaker connector) Panel Hex-head bolt MAP DVD-ROM GPS antenna components GPS antenna Waterproof cushion Wiring components Wire tie (for GPS antenna) When installing the main unit, some vehicle models may require the use of items that need to be obtained separately such as a power supply adaptor wire, radio antenna adaptor wire or mounting bracket.
- Page 3 or y our saf ety in using the A or y our saf ety in using the A Warnings and caution signs, illustrated bellow, are posted throughout this manual as well as on the AVN5500. They show safe and correct ways to handle the main unit to prevent personal injury to you and others and avoid damage to property.
- Page 4 • • Do not place the vinyl storage bag over a person's head. It may cause a serious accident or death by suffocation. • • Do not disassemble or rebuild this main unit. Doing so may cause an accident, fire, or electrical shock. •...
- Page 5 Installation Diag Installation Diag GPS antenna (When installing outside the vehicle) • • If installing the GPS antenna inside the vehicle, the location and the slope of the vehicle's windshield will determine the accuracy of the GPS antenna to receive the GPS signal. If the GPS antenna location inside the vehicle is hindering the accuracy of the GPS antenna, then you may want to install the antenna outside of the vehicle.
- Page 6 Name and functions of ter Name and functions of ter • • Never cut the insulation on the power wire or use it to power any other equipment. If the rated current capacity of the power wire is exceeded, fire and electric shocks may result. •...
- Page 7 Wire colors and connection points for connection wires Never connect the power supply to the speaker wires (No.6 and No.7), otherwise it will cause damage to the main unit. Caution B+ (Yellow) Connect where power is constantly available, regardless of the ignition key's position. ACC (Red) Connect where the power comes on when the ignition is in the ACC position.
- Page 8 Main unit connections ACC ON/OFF power supply terminal (blue/white) If you use this terminal to connect main unit such as an external amplifier, you can still hear the audio guidance from the navigation system even when audio is turned off. Connect it to the control terminal for the external amplifier or other main unit.
- Page 9 - Vehicle connections - • • You will need to purchase the necessary vehicle component adapter wire for the vehicle so that the power supplies can be utilized. (Contact the dealer for further details.) • • Be sure to wrap the connection wires with electrical tape or another insulation method to insulate them. - Example of using vehicle adapter wires - Power supplies for combined...
- Page 10 Connecting the v Connecting the v , and re erse wires , and re erse wires • • Check the vehicle speed pulse signal, parking brake signal, and reverse signal carefully before making the connections. If the wires are incorrectly connected, accidents or problems with correct operation may result.
- Page 11 - A connecting the point for parking brake (example) - Use a splicing connector to connect the parking brake signal wire (red/white) coming from the main unit to the parking brake signal wire of the vehicle. Route the parking brake signal wire to the main unit.
- Page 12 System connection e System connection e • • Never cut the insulation on the power wire or use it to power any other main unit. If the rated current capacity of the power wire is exceeded, fire and electric shocks may result. •...
- Page 13 Installing the GPS antenna Installing the GPS antenna • • The wires should be bound together with tape or a similar securing method (example: wire ties) so that they do not interfere with driving. If it becomes wound or entangled around parts such as the steering wheel, shifting lever, or brake pedal, accidents may result.
- Page 14 - Installation inside the vehicle (example) - Choose an installation location on the dashboard which is flat and has a clear view of the sky. • • Select a location that is at least 20 in. away from the main unit. If this is not done, the GPS measurement precision will drop.
- Page 15 - Installation outside the vehicle (example) - Choose an installation location where the GPS antenna can be attached securely. Remove the backing paper from the body protective sheet and attach the sheet to the vehicle. Install the GPS antenna on top of the body protective sheet.
-
Page 16: Installing The Main Unit
Installing the main unit Installing the main unit - Installation angle - To maintain proper function, the main unit must be mounted less than 30 degrees. If the angle is in excess of 30 degrees, DVD/CD skipping and improper DVD/CD ejection may occur. - Mounting the main unit - •...
