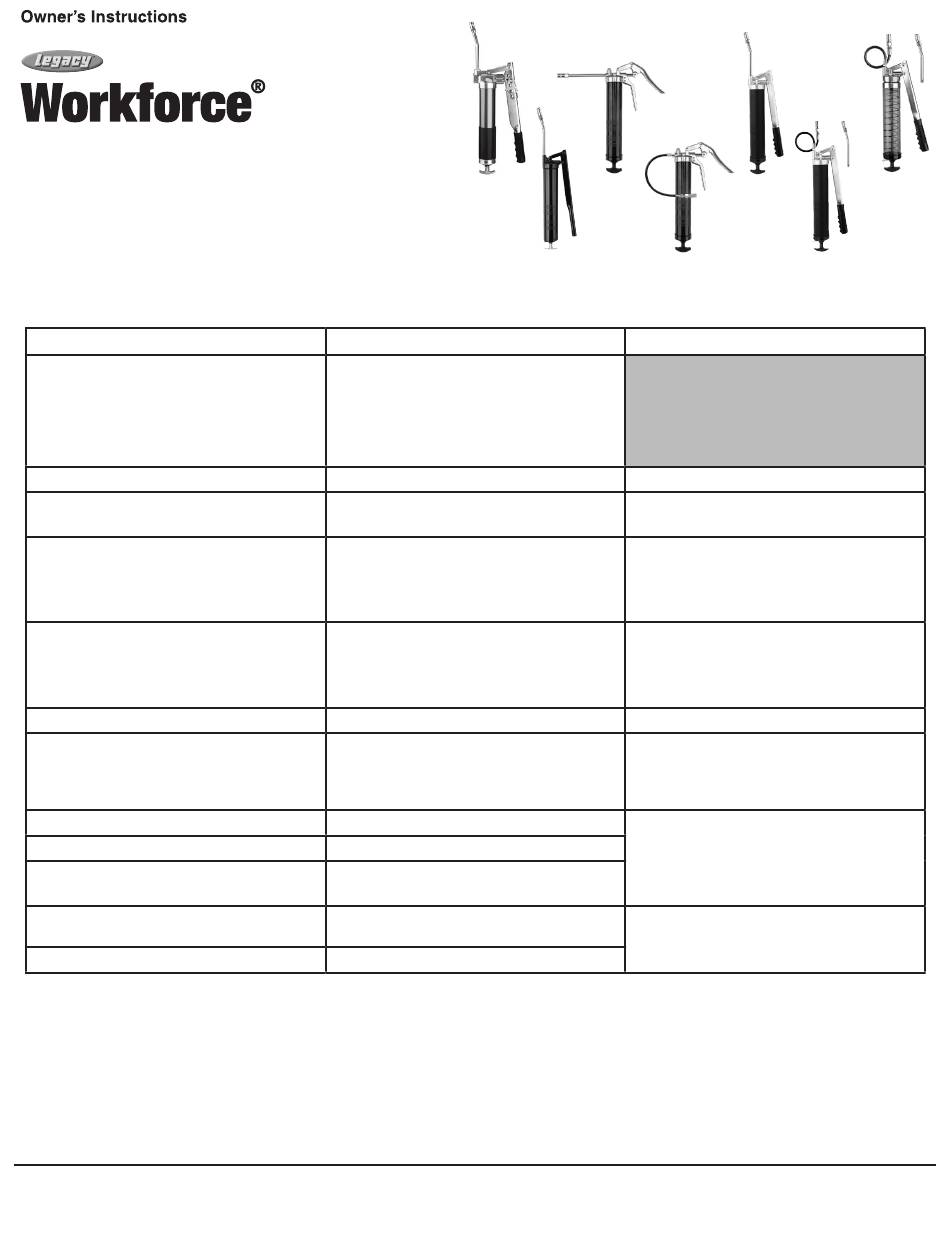

Legacy Workforce L1025 Owner's Instructions

Workforce Manually Operated Grease Guns
®
Part No.: L1025, L1310, L1320, L1325,
L1350, L1355, L1355C
Loading Your Grease Gun
Cartridge Loading
Pull follower rod from barrel
and lock into place.
Unscrew barrel from head.
Remove cap from end
of grease cartridge
Insert cartridge into barrel,
open end down.
Remove pull tab from top
of grease cartridge.
Make sure cartridge is pushed
down completely.
Screw barrel into head until snug.
Unscrew barrel slightly.
(Approximately two revolutions)
Release follower rod.
Push follower rod into barrel.
Screw barrel into head.
Prime.
(see "Priming Your Grease Gun")
Begin greasing.
Priming Your Grease Gun
• Point outlet up at least 45 degrees.
• Using slow, complete strokes, stroke handle
repeatedly until grease flows without air.
(Should require 10 - 20 strokes)
Workforce is a registered trademark of Weems Industries, Inc.
Legacy Manufacturing Company
Marion, IA 52302 USA
L1025
Suction Loading
Pull follower rod from barrel
and lock into place.
Unscrew barrel from head.
Insert open end of gun barrel
two inches below surface of grease.
Slowly pull back follower rod
to draw in grease. Pull follower rod
back all the way and lock into place.
Screw barrel back into head.
Unlock follower rod and push into barrel.
If no bleeder valve is installed,
unscrew barrel slightly.
(Approximately two revolutions)
(Skip this step if bleeder valve is installed)
Release follower rod.
Push follower rod into barrel.
Depress bleeder valve to release air.
(If bleeder valve is installed)
Prime.
(see "Priming Your Grease Gun")
Begin greasing.
Greasing a Zerk (Grease Fitting)
• Press coupler onto zerk.
• Keep coupler and zerk as closely aligned as possible.
• Begin greasing.
• To Remove Coupler From Zerk:
• Tilt coupler to one side, twist and pull.
Failure to follow above procedure may result in damage to coupler or fitting.
