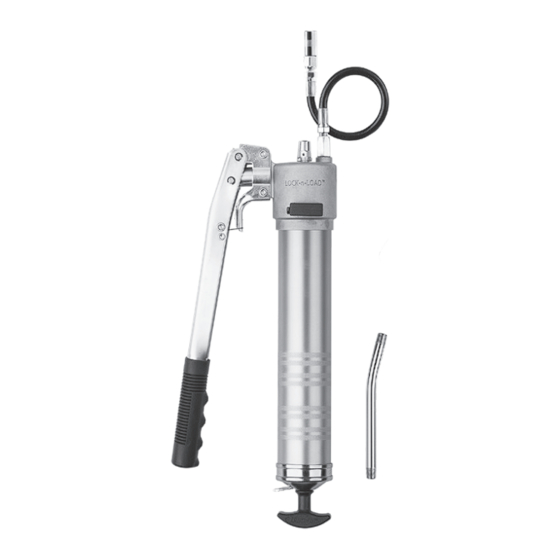

Legacy Lock-n-Load L1045L Owner's Instructions

Legacy Lock-n-Load L1045L Owner's Instructions

Lever and pistol grease gun

Advertisement

Quick Links

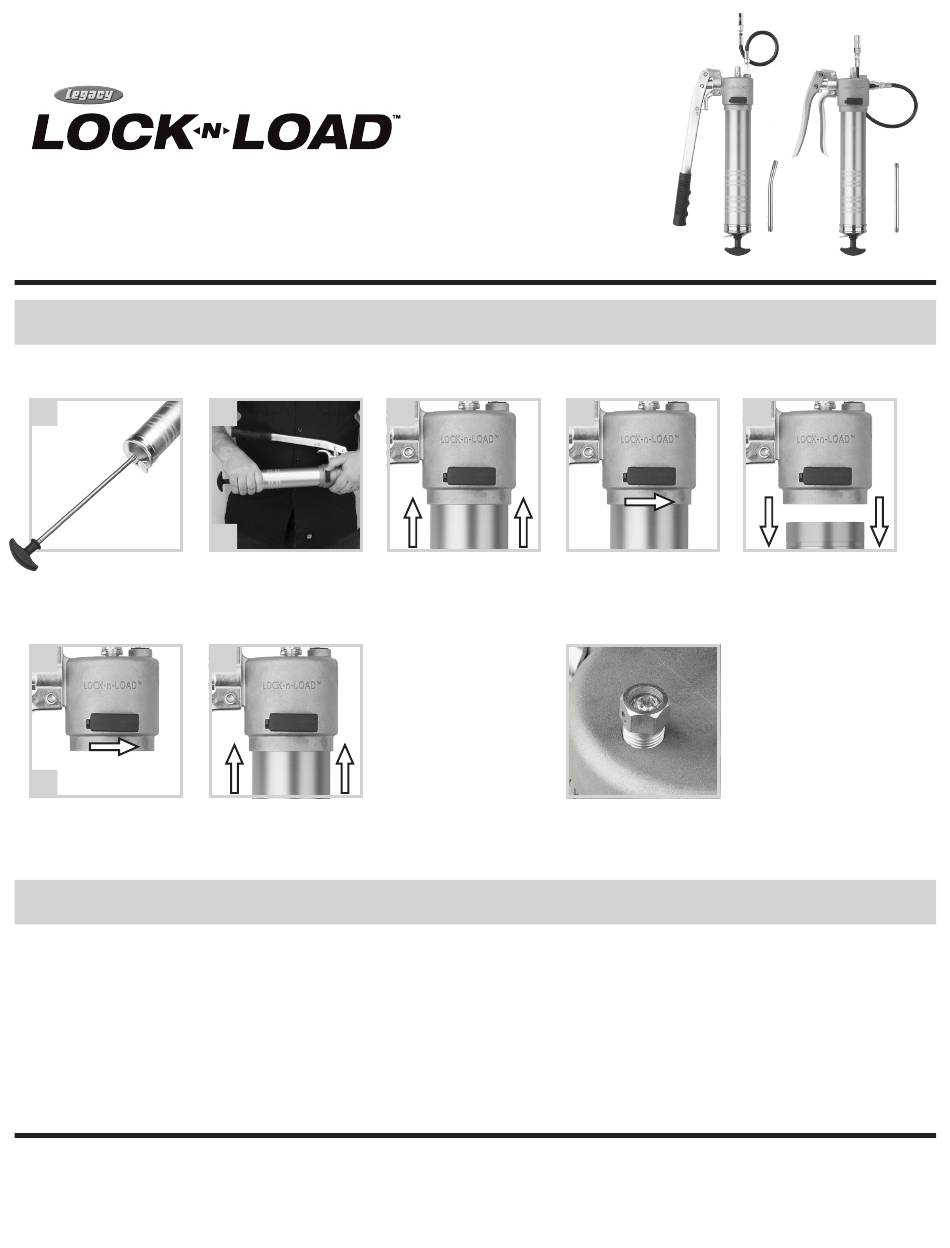

OWNER'S INSTRUCTIONS
Part No.: L1045L and L1075L
Lock-n-Load
Lever and Pistol Grease Gun
CARTRIDGE LOADING PROCEDURE
IMPORTANT - Follow each step in sequence to ensure proper loading of grease
1
Pull follower rod back
completely and lock into place as
shown. YOU MUST PERFORM THIS
STEP BEFORE DISENGAGING
BARREL FROM HEAD.
3
A
A. Slide Lock-n-Load switch.
B. Push barrel into head and
release Lock-n-Load switch.
Unlock follower rod by pressing
tab.
LOCK-N-LOAD
BEST PRACTICES
1. To remove barrel to refill:
a. Pull the follower rod aggressively and lock.
b. (See FIG. A) Right hand, grip barrel.
c. Hold horizontally, waist high.
d. Left hand, turn head so outlet is away from you.
e. Left hand, grip head so thumb can reach Lock-n-Load switch.
f. Right hand, slightly push barrel into head and hold.
g. Push Lock-n-Load switch forward as far as possible.
h. Right hand, pull barrel from head aggressively.
• A slight twist of barrel is suggested when pulling barrel from head.
2. To install barrel after refill:
a. Left hand, grip head so thumb can reach Lock-n-Load switch.
b. Hold horizontally, waist high, outlet is away from you.
c. Right hand, grab barrel.
d. Left hand, thumb, push Lock-n-Load switch forward as far as possible.
Lock-n-Load is a trademark of Weems Industries, Inc.
US Pat. No. 8,297,476 CA Pat. No. 2,743,126
Legacy Manufacturing Company
Marion, IA 52302 USA
2
A
A. Position right hand on gun
B. Push barrel into head
barrel as shown. Hold gun head
with left hand, left thumb on
Lock-n-Load
switch.
B
Ph: 319.373.7305
B
C
C. Slide Lock-n-Load switch.
e. Right hand, insert barrel into head aggressively.
• A slight twist of barrel is suggested when pulling barrel from head.
f. Left hand, release Lock-n-Load switch.
g. Right hand, barrel, pull barrel away from head slightly to lock.
• You will see Lock-n-Load switch move toward you.
• You will see Lock-n-Load switch move toward barrel.
• You will hear a slight "click" .
3. When inserting cartridges into barrel:
a. Follower rod must be pulled and locked.
b. Make sure cartridge is completely pushed down.
c. Make sure cartridge stays down.
4. Bulk filling, before attempting to grease:
a. Repeat the load process to extract air from grease.
• Pull follower rod and lock.
• Disengage barrel from head.
service@legacymfg.com
legacymfg.com
D
D. Disengage barrel from head.
Load new cartridge into barrel.
AUTOMATIC BLEEDER
• Bleeds air when reconnecting the
barrel and head.
• Reduces air locks & priming
problems.
• If air does not escape quickly,
press screw to bleed.
INS1045L
(Published 01/03/19 Revised 02/15/22)
1
