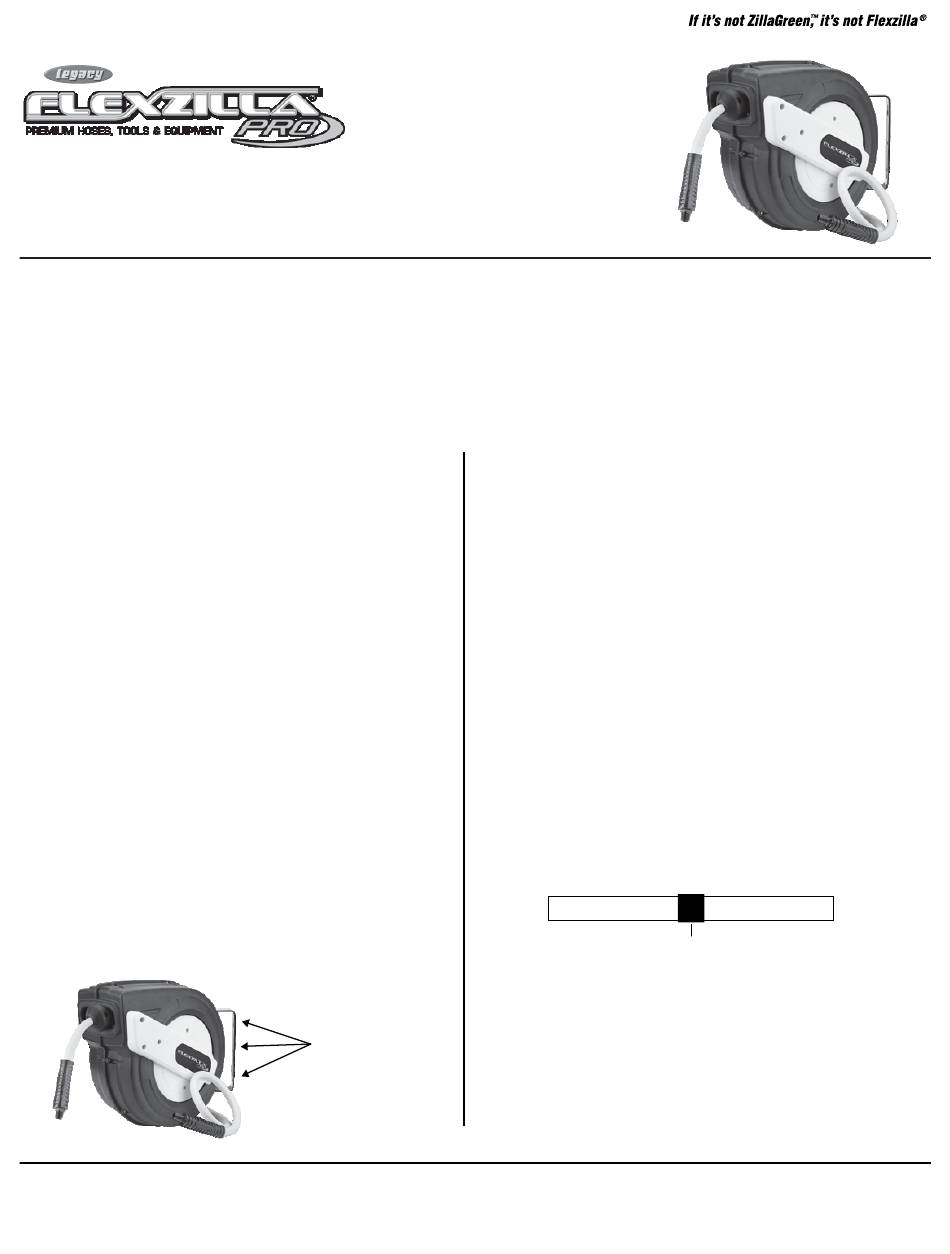

Legacy FLEXZILLA PRO Owner's Instructions

Owner's Instructions
Part No.: L8251FZP

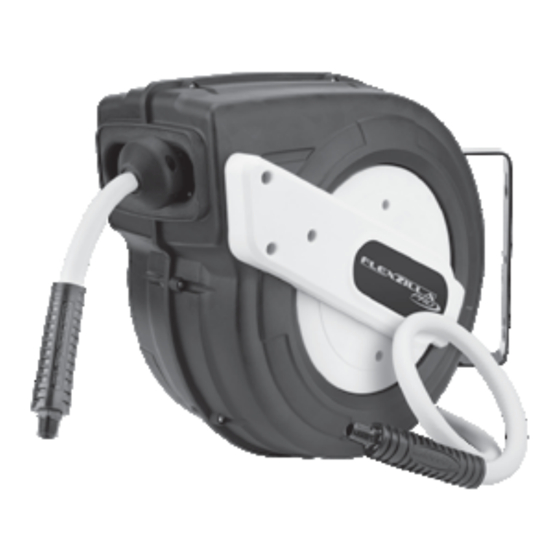

Retractable Air Hose Reel, 50 ft.
CAUTION: Read all instructions and warnings before operating this product.
CAUTION: Inspect hose before each use. Do not exceed 150 psi working pressure. Do not kink, twist, knot or abrade hose. Do not
wrap hose around body. Keep hose away from hot surfaces and/or chemicals. KEEP CHILDREN AWAY FROM WORK AREA!
SAFETY INSTRUCTIONS
• Do not allow tools to hang on the end of the hose when not
in use.
• Do not allow the hose to contact hot, sharp or heated
surfaces that could damage it.
• Always recoil hose back into the reel when work is completed.
• Do not allow hose to retract uncontrolled.
MOUNTING OPTIONS
INSTALLATION AND
Choose fasteners suitable for the mounting surface, the weight
of the reel, and the force of pulling the hose. Use a leveling
device for proper positioning. Use hex head fasteners up to
5/16" (8 mm) in diameter, with a minimum 1/2" (12.5 mm) hex
head. Mounting fasteners not included. See mounting diagram
on last page.
Wall Mounting Option:
Recommended height is 5 ft. (1.5 m) to 8 ft. (2.5 m)
Ceiling Mounting Option:
Recommended ceiling height is 8 ft. (2.5 m) to 10 ft. (3 m)
Installation:
1. Locate 3 holes on mounting bracket
2. Observe both sides of reel housing and remove screws
that hold bracket pivots in reel. Remove pivots and bracket
from reel.
3. Mount bracket to surface.
4. Re-install reel to bracket with the pivots. Re-install screws.
The color CHARTREUSE as applied to the body of the air hose is a registered trademark of Weems Industries, Inc.
The color CHARTREUSE as applied to the body of the air hose reel is a trademark of Weems Industries, Inc.
The Flexzilla Stylized X is a trademark of Weems Industries, Inc.
Legacy Manufacturing Company
Marion, IA, 52302 USA
SAVE THESE INSTRUCTIONS! READ ALL INSTRUCTIONS!
Bracket
mounting holes
Ph: 319.373.7305
OPERATION
The reel can lock the air hose at approximately 17-inch intervals.
Each latching interval is announced by a series of five "clicks."
This "ratcheting" sound lets you know that the reel is in the
latching zone as the air hose is pulled out.
1. Latching Hose -
After pulling out the desired length of hose, allow it to
retract slightly until you feel it stop. The reel is now latched.
2. Rewinding Hose -
Pull out approximately one extra foot from latch position and
allow hose to retract. The reel will continue rewinding until
hose is fully retracted. Do not allow the hose to rewind
uncontrolled back into the reel. Personal injury can result.
3. Hose Stopper Adjustment -
To modify the hose stopper position, pull out hose to the
desired length and latch reel. Loosen screws holding the
two halves of the hose stopper together, slide stopper to
opening of reel and tighten screws.
NOTE: ENSURE THE REEL IS COMPLETELY LATCHED
BEFORE LOOSENING THE HOSE STOPPER.
4. Do not extend hose beyond the indicator shown in the image below.
Red label indicator located at end of hose
service@legacymfg.com
legacymfg.com
Flexzilla is a registered trademark of Weems Industries, Inc.
INS8251FZP
(Published 10/21/2021)
