Owner's Instructions
T H R E A D L E S S B A R R E L G R E A S E G U N S

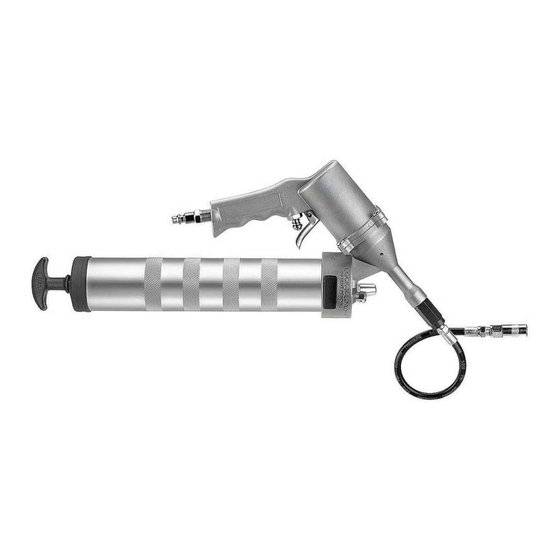

L1455L - Lock-n-Load
L1466L - Lock-n-Load
Lock-n-Load™ technology is protected by the following patents:
US Pat. No. 8,297,476
CA Pat. No. 2,743,126

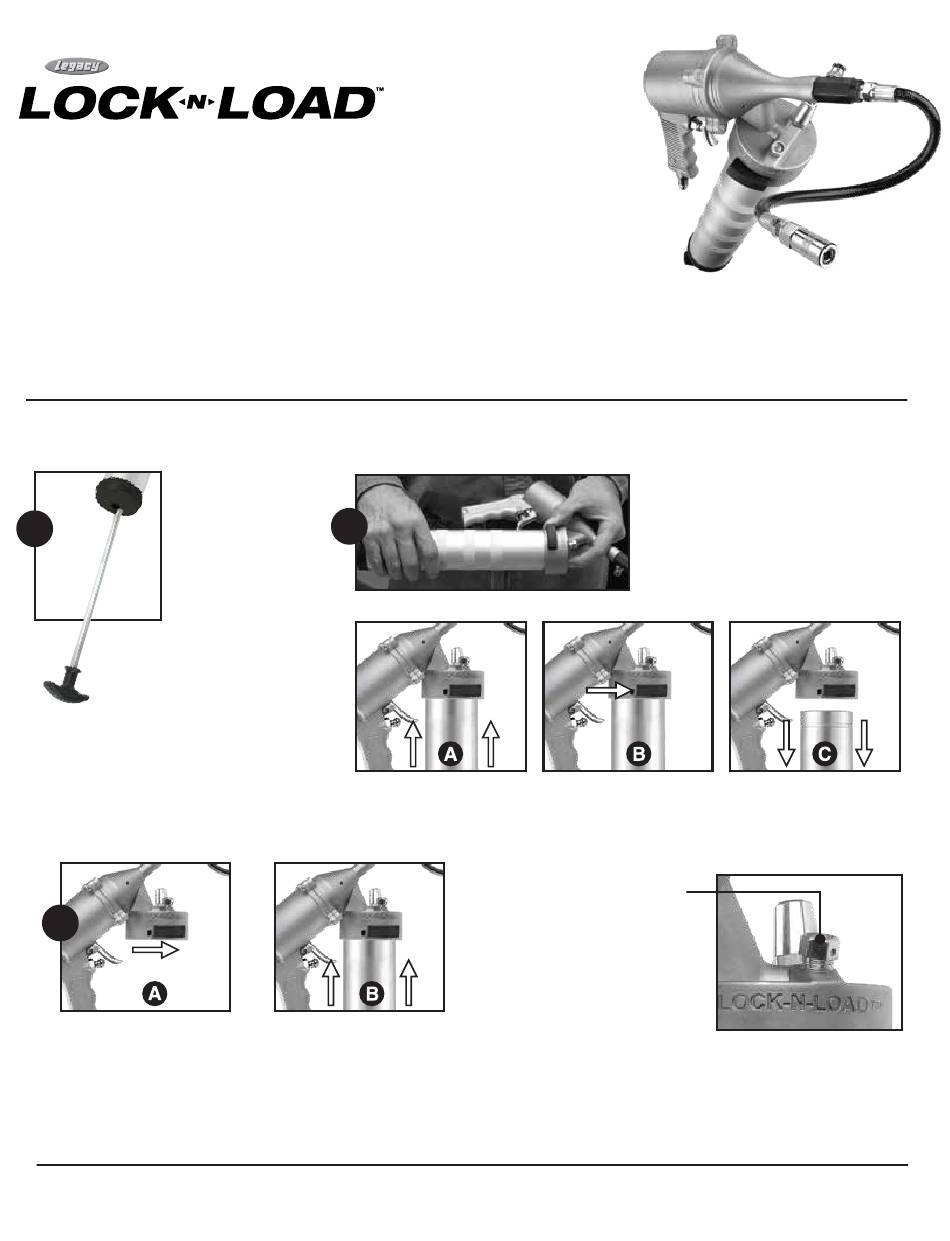

Cartridge Loading Procedure:
IMPORTANT
Pull follower rod from
barrel and lock into
1
place as shown.
YOU MUST PERFORM
THIS STEP BEFORE
DISENGAGING BARREL
FROM HEAD.
3
A. Slide Lock-n-Load
switch.
Legacy Manufacturing Company
Marion, IA 52302 USA
Air Powered Single Shot Grease Gun
™
Air Powered Continuous Flow Grease Gun (36" Whip)
™
-
follow each step in sequence to ensure proper loading of grease
2
A. Push barrel into head
B. Push barrel into head
™
and release
Lock-n-Load
™
Unlock follower rod.
Ph: 319.373.7305
Fx: 319.373.7309
B. Slide Lock-n-Load
switch.
Automatic Bleeder
• Bleeds air when reconnecting
the barrel and head.
• Reduces air locks & priming
problems.
• If air does not escape quickly,
press screw to bleed.
switch.
service@legacymfg.com
legacymfg.com
Position right hand on gun barrel as
shown. Hold gun head with left hand,
left thumb on Lock-n-Load
™
C. Disengage barrel
™
from head.
Load new cartridge
into barrel.
(Published 12/10/2012 Revised 12/12/2019)
switch.
INS1455L
