Owner's Instructions

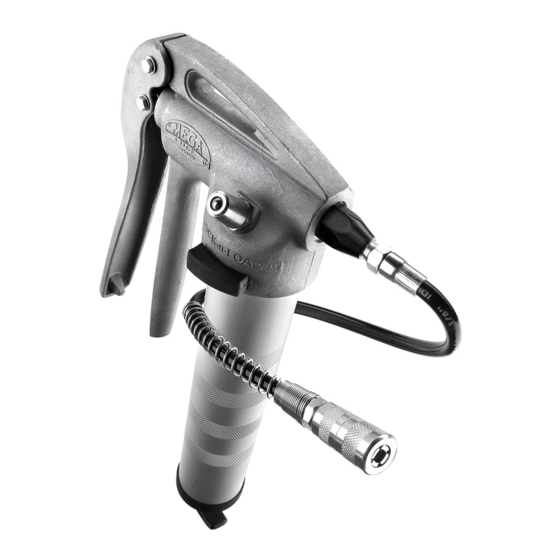

L1175L - Lock-n-Load™ Pistol Grip Grease Gun
Lock-n-Load™ technology is protected by the following patents:
US Pat. No. 8,297,476
Cartridge loading procedure using Lock-n-Load™ Quick Connect Barrel
IMPORTANT -
follow each step in sequence to ensure proper loading of grease
Pull follower rod
from barrel and
lock into place as
1
shown.
IT IS REQUIRED TO
PERFORM THIS
STEP BEFORE
DISENGAGING BARREL
FROM HEAD.
3
A
A. Slide Lock-n-Load™
switch.
Legacy Manufacturing Company
Marion, IA, U.S.A.
CA Pat. No. 2,743,126
2
A. Push barrel into head
B
B. Push barrel into head
and release
Lock-n-Load™ switch.
Unlock follower rod.
Ph: 319.373.7305
Fx: 319.373.7309
A
B
B. Slide Lock-n-Load™
switch.
Automatic Bleeder
• Bleeds air when reconnecting
the barrel and head.
• Reduces air locks & priming
problems.
Images of Legacy's L1185L grease gun are shown above
service@legacymfg.com
legacymfg.com
Position right hand on gun barrel
as shown. Hold gun head with left
hand, left thumb on Lock-n-Load™
switch.
C
C. Disengage barrel
from head. Load
new cartridge into
barrel.
(Published 07/09/13
Revised 11/19/15)
INS1175L
Advertisement
Table of Contents
Related Manuals for Legacy Lock-n-Load L1175L
Summary of Contents for Legacy Lock-n-Load L1175L
- Page 1 • Reduces air locks & priming problems. A. Slide Lock-n-Load™ B. Push barrel into head switch. and release Lock-n-Load™ switch. Images of Legacy’s L1185L grease gun are shown above Unlock follower rod. Legacy Manufacturing Company Ph: 319.373.7305 service@legacymfg.com Marion, IA, U.S.A. Fx: 319.373.7309 legacymfg.com...
- Page 2 Lock-n-Load™ Best Practices: 1. To remove barrel to refill: a. Pull the follower rod aggressively and lock. b. (See image shown) Right hand, grab barrel. c. Hold horizontal, waist high. d. Left hand, turn head so outlet is away from you. e.
- Page 3 Watch the Lock-n-Load Loading Demo: lock-n-load.info/pages/misc/videos.html How to Bulk Load L1175L Manual Grease Filler Pump Loading Procedure 1. Make sure the barrel’s follower rod is unlocked and pushed in. 2. Wipe bulk filler nipple clean. 3. Insert the grease gun bulk filler nipple into loader Suction Loading Procedure pump / transfer pump receptacle.
-
Page 4: Troubleshooting Guide
), will be free from defects in material and workmanship for a period of one (1) year from the date of purchase, under normal use.* LEGACY’S sole obligation under this warranty is limited to replacing or repairing, free of charge, any equipment that proves to be defective under normal conditions and use according to the recommendations of LEGACY.
