Zaxcom RX-8

Pin Configuration

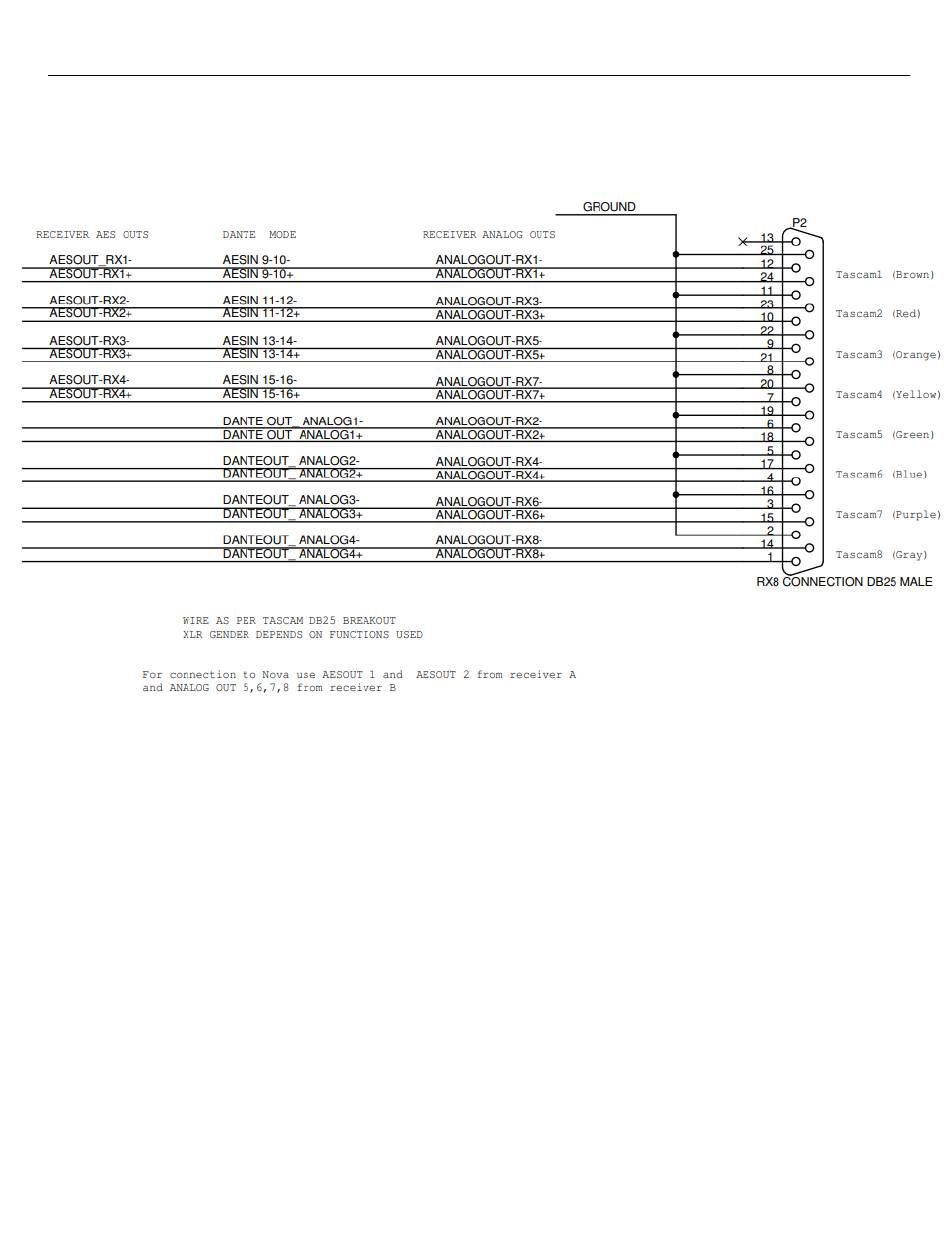

DB25

Power Connector DC Power In / DC Out (Hirose-4 Connector
Pin 1 – Ground ( - )
Pin 2 – Not Connected
Pin 3 – Not Connected
Pin 4 – DC ( + )
13
Pin Configuration
)
