RX-8 Receiver

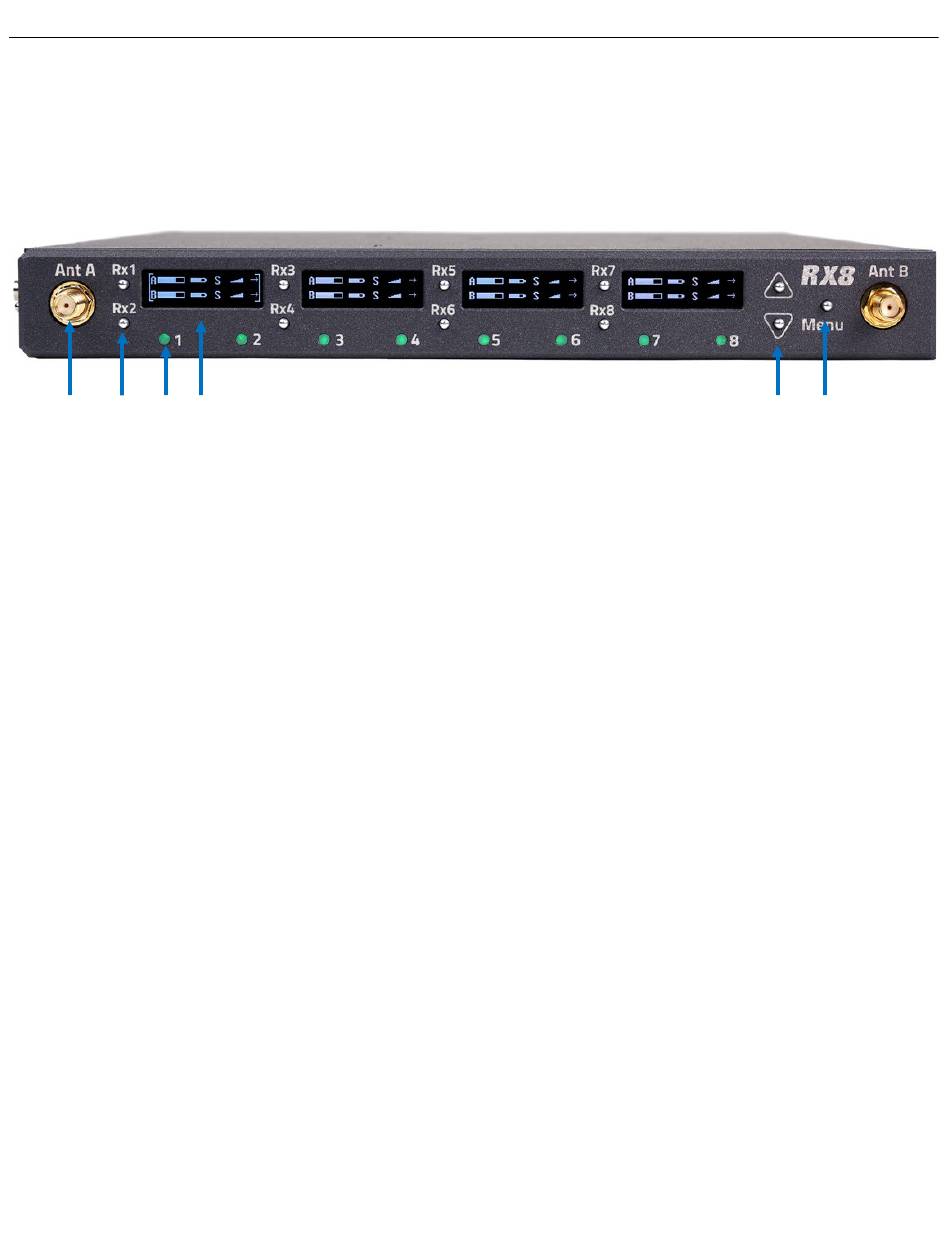

Front

1 2 3
1. UHF Antenna Connectors (2) - SMA connectors.
2. Receiver Select keys (8) - Rx keys press to select a receiver. When a receiver is active a bracket will
appear around the display for that receiver.
3. Receiver Status Indicators (8)
Green - Receiver is receiving a valid signal.
Red - Receiver is not getting a valid signal.
4. OLED Displays (4)
5. INC Key - Up key used to increase the parameters of a menu item.
6. Dec Key - Down key used to decrease the parameters of a menu item.
Press and hold the DEC key to access the extended menu.
7. Menu Key - Press to advance to the next menu item.
4
3
Front Panel
5 / 6 7
