Instruction manual
5B60M8690GB
Built-in oven

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 5B60M8690GB and is the answer not in the manual?

Questions and answers

Related Manuals for Blaupunkt 5B60M8690GB

Summary of Contents for Blaupunkt 5B60M8690GB

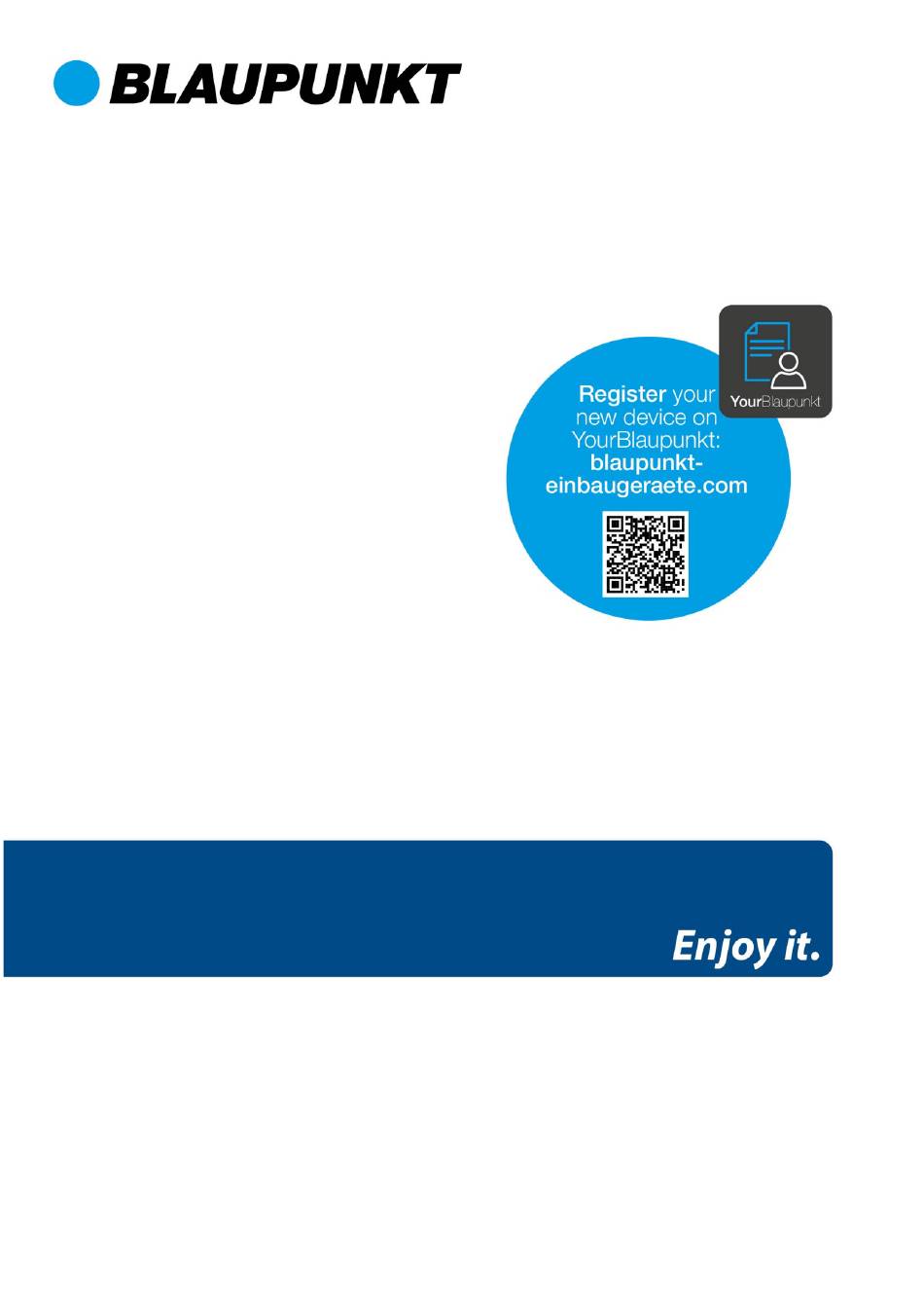

  • Page 1 Instruction manual 5B60M8690GB Built-in oven...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS SAFETY INSTRUCTIONS Intended purpose Warning Causes of damage INSTALLATION OPERATING THE APPLIANCE Operating elements Before using the appliance Operating modes Using your appliance AUTOMATIC PROGRAMMES ACCESSORIES ENERGY-EFFICIENT USE ENVIRONMENT HEALTH MAINTENANCE OF YOUR APPLIANCE APPLIANCE DOOR TROUBLESHOOTING CUSTOMER SERVICE TIPS AND TRICKS TEST FOOD ACCORDING TO EN 60350-1...

  • Page 3: Safety Instructions

    SAFETY INSTRUCTIONS Intended purpose Thank you for choosing a microwave/oven combination unit from Blaupunkt. Please read this manual thoroughly before unpacking your new appliance. Only then will you be able to operate your appliance safely and correctly. We strongly recommend that you keep the manual and installation instructions for future use or for future owners.
  • Page 4 2. The cable insulation of electrical appliances can melt if they come into contact with hot appliance parts. Never allow the cables of electrical appliances to come into contact with hot appliance parts. 3. Do not use high-pressure cleaners or steam cleaners, as this can cause an electric shock. 4.
  • Page 5 Risk of fire! 1. Flammable objects stored in the cooking chamber may ignite. Do not store flammable objects in the cooking chamber. Never open the appliance door if there is smoke inside. If this happens, switch off the appliance and unplug the power plug from the power outlet or turn off the circuit breaker in the fuse box.

  • Page 6: Causes Of Damage

    Causes of damage 1. Accessories, foil, oven paper or ovenware on the cooking chamber floor: Do not place any accessories on the cooking chamber floor. Do not cover the cooking chamber floor with any kind of foil or oven paper. Do not place any ovenware on the cooking chamber floor if the temperature is set above 50 ºC.

  • Page 7: Installation

    INSTALLATION To ensure the safe operation of this appliance, it must be properly installed in accordance with the installation instructions. Damage caused by incorrect installation is not covered by the warranty. Wear protective gloves during installation to prevent cuts from sharp edges. Check the appliance for damage before installation.
  • Page 8 INSTALLATION Slide the microwave/oven combination unit into the opening provided. Fasten it with the screws Caution To avoid damage to the appliance or the appliance housing, do not over-tighten the screws Use a screwdriver only!

  • Page 9: Operating The Appliance

    OPERATING THE APPLIANCE OPERATING ELEMENTS 1. ON/OFF Switches the oven on/off. Use the microwave and microwave/oven Microwave symbol combination function. Use timer/press button for 3 seconds to turn on 3. Timer / child lock child lock. 4. End time Set an end time for the cooking process. 5.

  • Page 10: Before Using The Appliance

    BEFORE USING THE APPLICANCE First-time use Before you use the appliance for the first time to prepare food, you must clean the cooking chamber and accessories. 1. Remove all stickers, surface protection films and transport protection parts. 2. Remove all accessories and the slide-in strips from the cooking chamber. 3.

  • Page 11: Operating Modes

    OPERATING MODES Your appliance has various operating modes. To help you choose the right type of heating for your dish, we will now explain the differences and areas of application. Operating modes Temperature For traditional baking and roasting at one level. Top/bottom heat 30～250 °C Especially suitable for cakes with a moist topping.

  • Page 12: Using Your Appliance

    Caution! If you open the appliance door while a process is running, the process will be stopped. In this case there is a risk of burns! Notes 1. To defrost large portions of food, you can remove the guide rails and place the container on the cooking chamber floor.
  • Page 13 Set end time You can set the time at which the cooking process is to be ended here. 1. Tap . Use the Smart Slider or tap the “+/-” symbol to set the end time in hours. Tap again to set the end time in minutes. When you have finished setting, tap to save the setting.
  • Page 14 Microwave and microwave/oven combination function 1. Your appliance has 4 microwave functions, including a single microwave and a microwave/oven combination function. Time Default Default Temperature Operating modes power temperature range Microwave 800 W 00:01–30:00 min Microwave + 320 W 160 °C 50～250 °C 00:01–01:30 h hot air...

  • Page 15: Automatic Programmes

    Child lock Your appliance has a child lock so that children cannot accidentally turn it on or change settings. You can activate and deactivate the child lock at any time, regardless of whether the oven is switched on or not. Press and hold the button for 3 seconds to turn the child lock on and off.

  • Page 16: Accessories

    For sheet cakes and small baked goods. For roasts and grilled dishes. Use only original accessories. It is specially designed for your appliance. You can find the right accessories in our online shop at www.blaupunkt-einbaugeraete.com or from your specialist dealer. Note 1.
  • Page 17 Inserting accessories The cooking chamber has five guide rails. The guide rails are counted from bottom to top. The accessories can be pulled out about halfway without tilting. Notes 1. Make sure that you always insert the accessories the right way round in the cooking chamber. 2.
  • Page 18 Inserting accessories Ceramic clips at the back at the front...

  • Page 19: Energy-Efficient Use

    ENERGY-EFFICIENT USE Remove all accessories that are not necessary during the cooking process. Do not open the door while cooking is in progress. If you open the door while cooking, switch the operating mode to “light” (without changing the temperature setting). In the case of operating modes with no fan, reduce the temperature setting to 50 °C 5 min to 10 min before the end of the cooking process.

  • Page 20: Health

    HEALTH Acrylamide is formed especially when starchy foods (e.g. potatoes, chips, bread) are heated to very high temperatures for a long time. Tips 1. Select short cooking times. 2. Cook the food until it has a golden yellow surface colour. Do not let food burn until it has a dark brown colour.
  • Page 21 Oven area Cleaning Stainless steel front Warm soapy water: Clean with a tea towel and then dry off with a soft cloth. Remove lime spots, grease, starch and albumin (e.g. protein) immediately. Rust can form under such spots. Special stainless steel cleaning agents for cleaning hot surfaces are available from specialist dealers.
  • Page 22 Notes 1. Slight differences in colour on the front of the appliance are due to the use of different materials such as glass, plastic and metal. 2. Shadows on the door panels that look like stripes are caused by reflections of the interior lighting. 3.

  • Page 23: Appliance Door

    APPLIANCE DOOR Guide rails If you want to clean the guide rails and cooking chamber thoroughly, you can remove the guide rails and clean it. With good care and cleaning, your appliance will retain its appearance and remain fully functional for a long time. 1.

  • Page 24: Troubleshooting

    TROUBLESHOOTING If a fault occurs, be sure that it is not due to incorrect operation before calling customer service. First, try to correct the fault yourself using the following overview. You can often easily correct technical problems with the appliance yourself. If a dish does not turn out exactly as you would like it to, you will find many cooking tips and instructions at the end of the operating manual.
  • Page 25 Warning – Danger of electric shock! Incorrectly performed repairs are hazardous. Repairs and the replacement of damaged power cables may only be carried out by one of our trained service technicians. If the appliance is defective, disconnect it from the mains or switch off the circuit breaker in the fuse box. Contact customer service.

  • Page 26: Customer Service

    If your appliance needs to be repaired, our customer service is there for you. We always find the right solution. Please contact the dealer from whom you purchased this device or the Blaupunkt customer service directly. You can find the contact information on the back of this manual.

  • Page 27: Tips And Tricks

    TIPS AND TRICKS You want to prepare your own First try to use settings of similar recipes and optimise the recipe cooking process based on the result. Insert a wooden stick into the cake about 10 minutes before the specified baking time. If there is no more raw dough on the stick Is the cake ready-baked? after pulling it out, the cake is ready.
  • Page 28 Any heat-resistant ovenware can be used. Aluminium should not What type of ovenware can be come into direct contact with food, especially if the food is acidic. used? Please ensure that the container and lid close well. Preheat the oven for 5 minutes and place the food in the level indicated in this manual.

  • Page 29: Test Food According To En 60350-1

    Chicken 75–80 tray Baking tray: Level 1 DATA SHEET (EU 65/2014 & EU 66/2014) Built-In Oven with Microwave 5B60M8690GB Mass of the oven 45kg Number of cooking chambers Heat source Electrical Useful volume Note All the operating modes described on page 9 are main functions of the oven.
