Installation

The initial installation of the Room Alert 26W can be completed quickly and easily provided the
instructions below are followed with detail and care. Before beginning, please lay out the contents of the
Room Alert 26W package so that the components can all be located and accessed with ease.

Package Contents

The main components included with the standard (default) Room Alert 26W package include:
• One (1) Room Alert 26W ID Box (with built-in temperature, humidity, power, flood & UPS)
• One (1) Ethernet Cable (10' length, red)
• One (1) AVTECH 5v 1A Power Adapter (110-240v, 50-60Hz)
• One (1) Digital Temperature Sensor
• One (1) Room Entry Switch Sensor
• One (1) Wireless Sensor Hub (WiSH Sensor, not included with Room Alert 24E)
• One (1) Wireless Antenna (not included with Room Alert 24E)
• One (1) Room Alert 26W User's Guide & Reference Manual (you're reading it)
• One (1) Getting Started With PageR Enterprise manual
• One (1) AVTECH Update CD
• One (1) Small Room Alert Phillips Screwdriver
• One (1) Set Of Four (4) Rack Mount Bolts & Square Plug Adapters
• One (1) Package Of Literature & Additional Information
NOTE: Some of the components arriving with this package may be individually wrapped and contain additional supporting
components. Please remember to keep these components together as they will be required for proper setup. If you received
additional components (i.e. like additional sensors) that are not mentioned above, instructional material explaining the proper
setup of that component should be included with it. If you cannot find the proper instructional materials, check the included CD or
'Support' and 'Downloads' sections of the AVTECH.com website for any appropriate installation or application note that will instruct
you on the proper installation and use of that component. Install those components after the Room Alert 26W setup is completed.

Room Alert 26W ID Box

The graphics below identify the primary components of the Room Alert 26W ID box that are visible on
the front and rear panels.

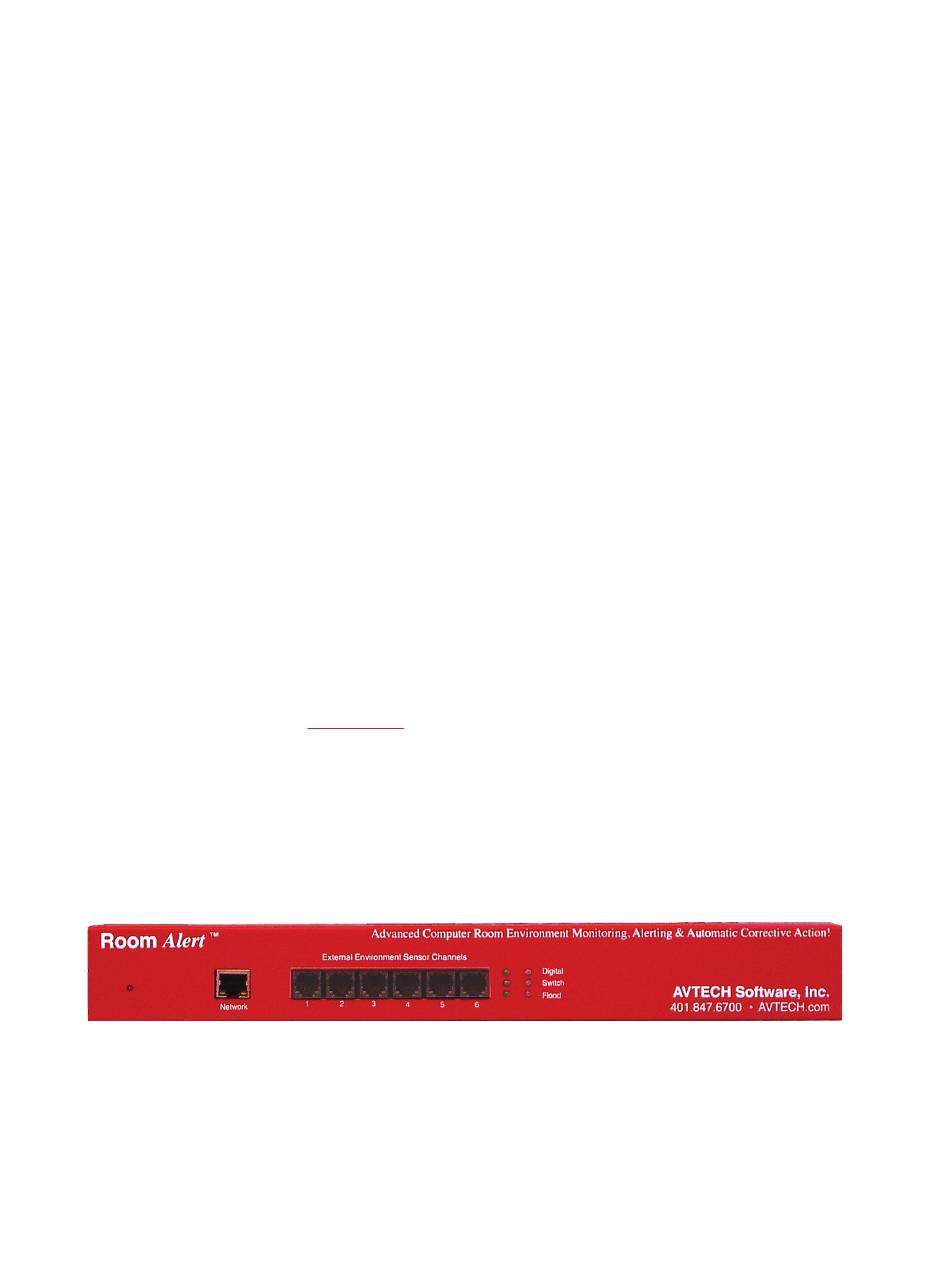

Front View (shown here without rack mounting brackets)
A
A. Built-In UPS Status Indicator — This LED indicates the current status of the built-in
Uninterruptible Power Supply (UPS) of the Room Alert 26W unit. If this LED is illuminated
green, this indicates that the Room Alert 26W unit is running on internal battery backup power.
B. Network Port — Attach the Room Alert 26W unit to the network by plugging the Ethernet
cable into this port and then connecting the other end to the network. The left LED below the
AVTECH Software Inc.
B C D E
Installation
