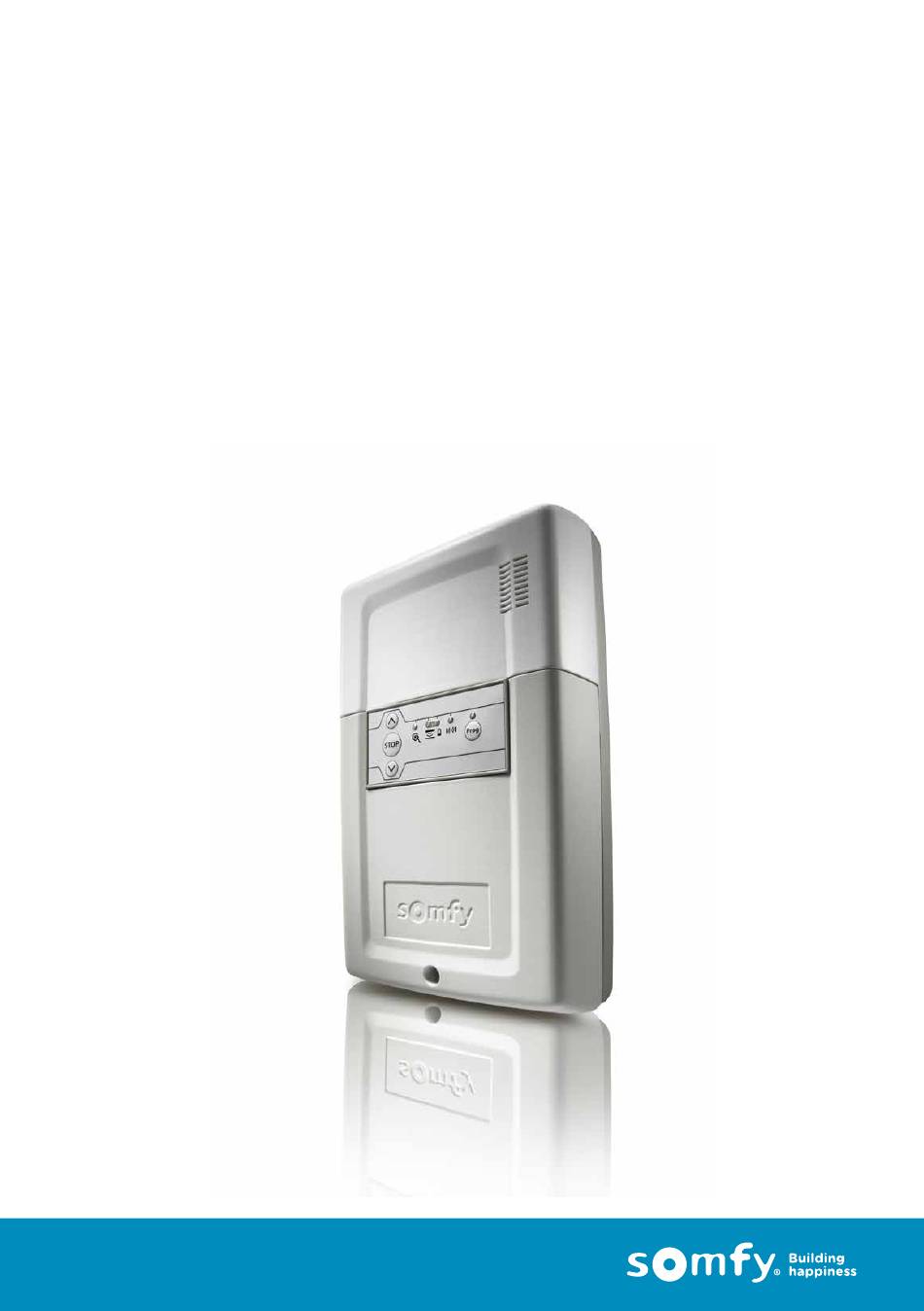

- Page 1 Rollixo io Installation manual for rolling doors...
-
Page 2: Table Of Contents
Rollixo io Contents Description of the interface for external programming Installation Fixation of the Rollixo receiver Motor connection Safety brake connection Checking and setting the rotation direction 1 Checking the rotation direction 2 Setting the rotation direction 3 Setting the upper end limit... -
Page 3: Description Of The Interface For External Programming
Rollixo io Description of the interface for external programming Description Function UP button Opens the door STOP button Stops the door STOP Prog DOWN button Closes the door PROG button Programming the remote controls + safety edge transmitter PROG LED... -
Page 4: Safety Brake Connection
Rollixo io Safety brake connection Stop Safety Edge If the safety brake is not connected to the Rollixo, place a shunt between 5 and 6 Checking and setting the rotation direction 1 Checking the rotation direction STOP Prog STOP Prog Go to motor setting mode;... -
Page 5: Setting The Lower End Limit
Rollixo io 4 Setting the lower end limit STOP Prog Press the UP button ..the product Release at the lower See the Somfy See the Simu goes downwards. position. Adjust if manual for manual for necessary with the setting the... -
Page 6: Connection Photocells
Rollixo io Connecting photocells 24V Cell Sec Cell Test 24V dc Connection reflex photocells 24V Cell Sec Cell Test 24V dc Brown Blue Black Grey... -
Page 7: Alarm
Rollixo io Alarm At least one remote control must be programmed. The alarm can only be stopped with a programmed remote control. Activating/deactivating the alarm ‘Beep’ Prog Prog STOP STOP At the same time press the STOP and ...4 LEDS start flashing quickly. -
Page 8: Programming The Remote Controls
Clearing one Keygo io remote control To clear a Keygo io from the Rollixo io, the same action must be taken as when programming the Keygo io remote control Clearing all remote controls All programmed... -
Page 9: Locking/Unlocking The Programming Buttons
Rollixo io Locking/unlocking the programming buttons The programming buttons must be locked to guarantee the safety of the users. If the programming buttons are locked, the following functions cannot be used: access to programming mode by pressing the Prog button of the receiver... -
Page 10: Diagnosis
Rollixo io Diagnosis Status of the LED Meaning LED is off Installation working LED flashes slowly Waiting for an action or setting LED flashes quickly Detection/activation working LED stays on Failure/defect in the installation Diagnosis Safety brake not connected or no connection to the connector between 5 and 6. Safety brake... -
Page 11: Technical Details
5 AT - 250 V - supplied spare fuse Temperature conditions of use - 20 ° C/+ 60 ° C - Protection category IP 20 Radio frequency Somfy io 868 - 870 MHz Number of remote controls to be installed Connections Mains cable... - Page 12 Somfy Ltd Moorfield Road Yeadon Leeds West Yorkshire LS19 7BN 0113 391 3030 sales.uk@somfy.com www.somfy.co.uk...
