  • Page 1 STOP Prog ROLLIXO RTS Installation manual Instrukcja montażu Manual de instalación Εγχειρίδιο εγκατάστασης 5108206C...

  • Page 3: Table Of Contents

    9.1 Different operating modes with the standard EN 60335-2-95, this product must be 9.2 Programming operating modes installed with a Somfy RDO CSI motor and a Somfy safety 9.3 Automatic closing mode edge solution. The assembly is together designated as a 9.4 Holiday mode...
  • Page 4 DanGer 1.6 regulations Do not connect the motorisation to a power source before SOMFY declares that this product complies with the installation is complete. essential requirements of applicable European directives. A Declaration of Conformity is available at www.somfy.com/ce WarninG (Rollixo RTS).

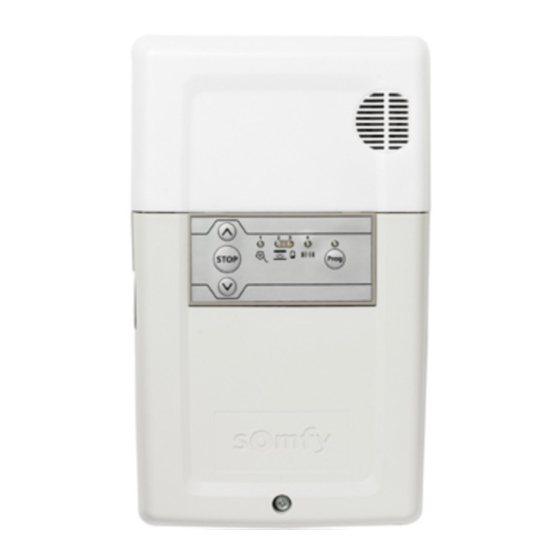

  • Page 5: Description Of The Rollixo Receiver

    Zone 1 Zone 4 reCeiver 2.1 area of application The ROLLIXO receiver, linked to a Somfy RDO CSI motor and a Somfy safety edge solution, is designed to drive a vertically opening roller garage door for risK soLution residential use with the following external dimensions:...

  • Page 6: Description Of The External Programming Interface

    [2]. Lock the motor cable with the cable clamp provided. The motor cable must be placed in the receiver's 230 V insulation area. safety edge transmitter safety edge 24v insulation zone 230v insulation zone Copyright © 2014 Somfy SAS. All rights reserved.

  • Page 7: Connecting The Receiver To The Mains Power Supply

    [8] to exit motor adjustment mode. [4]. Press button to position the garage door in the upper position. Adjust the top position with buttons and . STOP Prog STOP Prog Copyright © 2014 Somfy SAS. All rights reserved.

  • Page 8: Installing An Optical Radio Safety Edge Or Resistive Safety Edge With Xse Transmitter

    [1]. Press the button on the receiver until the indicator light comes on Prog permanently. [2]. Using the tip of a pen, press the transmitter PROG push-button for 4 seconds. Copyright © 2014 Somfy SAS. All rights reserved.

  • Page 9: Installing A Resistive Radio Safety Edge With Ese Transmitter

    6.2 installing the resistive safety edge and its ese transmitter mounting plate transmitter Follow the instructions provided with the ESE transmitter and the resistive safety edge lengthening kit. Base magnet Copyright © 2014 Somfy SAS. All rights reserved.

  • Page 10: Recognising Magnets

    7.4 Cells If the cells are blocked when the door is closed, it stops, then re-opens fully. If the cells are blocked when the door is opened, the door continues its movement. Copyright © 2014 Somfy SAS. All rights reserved.

  • Page 11: Parameter Setting For Wiring Options

    It is compulsory to install photoelectric cells if: - the automatic control device is being controlled remotely (user unable to see it), - automatic closure is activated. 24V dc 24V Cell Sec Cell Test Copyright © 2014 Somfy SAS. All rights reserved.
  • Page 12 > orange LeD (part no. 9017842) Dipswitch 3 receiver set to ON → 2-second warning activated Dipswitch 3 receiver set to OFF → No warning KeySwitch 24V C Flash 24V dc STOP Prog 4 W max. Copyright © 2014 Somfy SAS. All rights reserved.

  • Page 13: Advanced Parameter Setting

    2 seconds. Semi-automatic > holiday mode parameter setting Comments Programming Interface locked (default (remote controls and keyswitch Dipswitch 5 setting) active) Holiday mode Remote controls locked (programming interface and keyswitch active) Copyright © 2014 Somfy SAS. All rights reserved.

  • Page 14: Storing The Remote Controls

    The transmitter is memorised in the receiver. [3]. Restart the magnet recognition procedure (see section 6.3). STOP Prog STOP Prog > With a 3-button remote control safety edge < 1s STOP Prog STOP Prog Copyright © 2014 Somfy SAS. All rights reserved.

  • Page 15: Clearing The Remote Controls

    If a radio safety edge transmitter is stored in the receiver, clear it (see section 13). STOP Prog to lock the programming buttons, repeat the locking procedure described above. Copyright © 2014 Somfy SAS. All rights reserved.

  • Page 16: Xse Transmitter

    - If LED2 lights up green then the safety edge and transmitter are operating If the fault persists, replace the safety edge transmitter batteries. correctly. Squeeze the safety edge and check that LED2 lights up red. - If not, go to step 3. Copyright © 2014 Somfy SAS. All rights reserved.

  • Page 17: Ese Transmitter

    Up-Stop-Down buttons in the control Perform the installation with magnet Control buttons panel procedure again. Automatic closing mode Maintenance assistance Real time status with 5 indicator lights Copyright © 2014 Somfy SAS. All rights reserved.
  • Page 19 Somfy 50 avenue du Nouveau Monde BP 152 - 74307 Cluses Cedex France www.somfy.com...
