DM-NUX-L2-1G and DM-NUX-R2-1G
DM NUX USB over Network Wall Plates with Routing
The DM NUX USB over Network Wall Plates with Routing
(DM-NUX-L2-1G
and DM-NUX-R2-1G) deliver reliable, high-speed USB
signal extension and routing for USB 1.0, 1.1, and 2.0 devices throughout
a home, business, or campus for distances up to 330 ft (100 m).
Featuring Virtual Hub capabilities, five DM-NUX-R2-1G endpoints may
simultaneously be connected to a single DM-NUX-L2-1G endpoint.
Creating this virtual hub allows numerous USB devices to control a
single host device (such as a PC).
the local network and managed through a Crestron control system.
The DM-NUX-L2-1G and DM-NUX-R2-1G are functionally similar. For
simplicity within this guide, the term "USB endpoint" is used except
where noted. The USB endpoints are also compatible with the USB over
Ethernet Extenders with Routing
1
The USB signals are transported over
(DM-NUX-L2
and DM-NUX-R2).
In the Box
1
1

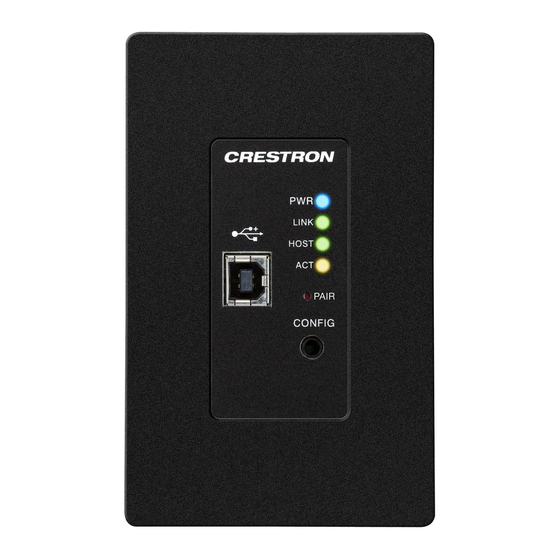

DM-NUX-L2-1G
or DM-NUX-R2-1G
Additional Items
2
Screw, 6-32 x 1/4 in., Pan Head, SEMS (2007218)
1
Connector, 2-Pin (2003574)
1
Ferrite Bead, Cable Mount (2054945)
1. Refer to the
DM-NUX-L2-1G
and
DM-NUX-R2-1G
Quick Start
1
product pages for color variations.
1
Advertisement
Related Manuals for Crestron DM-NUX-L2-1G
Summary of Contents for Crestron DM-NUX-L2-1G
- Page 1 (such as a PC). The USB signals are transported over Screw, 6-32 x 1/4 in., Pan Head, SEMS (2007218) the local network and managed through a Crestron control system. Connector, 2-Pin (2003574) The DM-NUX-L2-1G and DM-NUX-R2-1G are functionally similar. For Ferrite Bead, Cable Mount (2054945) simplicity within this guide, the term "USB endpoint"...
- Page 2 DM-NUX-L2-1G also receives power from the USB host port. The CAT5e (or better) cable must have a straight-through The DM-NUX-L2-1G and DM-NUX-R2-1G may be used without a control conductor configuration with no crossovers and must be system or DigitalMedia™ system to offer point-to-point USB extension terminated with 8-conductor RJ45 connectors at both ends.
- Page 3 *Connection to a 24VDC power supply is not required when PoE is used to power the USB extender or when the DM-NUX-L2-1G is connected to the Host device. NOTE: The CONFIG jack on the USB endpoint is reserved for factory use only.
-
Page 4: Check The Installation
Check that the ACT, HOST, LINK, and PWR LEDs light on both the 1. Install any software on the host computer that is required to operate DM-NUX-L2-1G and the DM-NUX-R2-1G. If the HOST or LINK LEDs do the USB device(s). Refer to the USB device documentation for not light, then the cabling between the USB endpoints and the network installation instructions. - Page 5 DM NUX USB over Network Wall Plates with Routing For macOS Software: 2. On the DM-NUX-L2-1G, press and hold the PAIR button for less than 10 seconds. The LINK LED on the front panel of the endpoint starts 1. Open System Profiler.
- Page 6 1. Disconnect all USB devices from the DM-NUX-R2-1G. Host LED is off. The DM-NUX-L2-1G is not connected to the 2. Disconnect the DM-NUX-L2-1G from the host device. computer. 3. Disconnect the DM-NUX-R2-1G from the AC power. The host device is not recognizing the 4.
- Page 7 Development Tools License Agreement. Crestron product operating system software is licensed to Crestron dealers, CSPs, and end-users under a separate End-User www.crestron.com/model/6512570 License Agreement. Both of these Agreements can be found on the Crestron website at www.crestron.com/legal/software_license_agreement. The product warranty can be found at www.crestron.com/warranty.
