Summary of Contents for Schletter ALUTILE

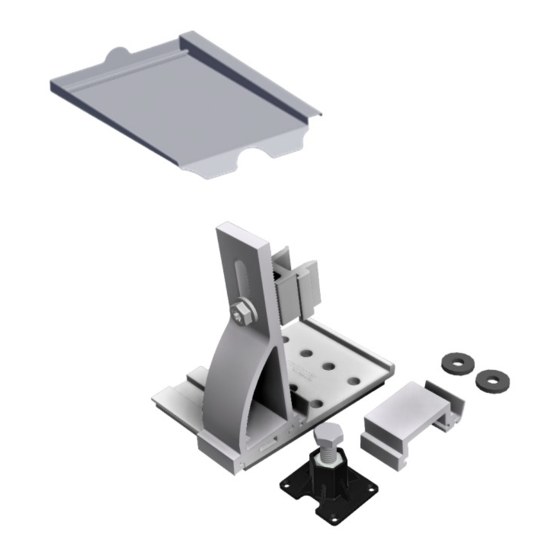

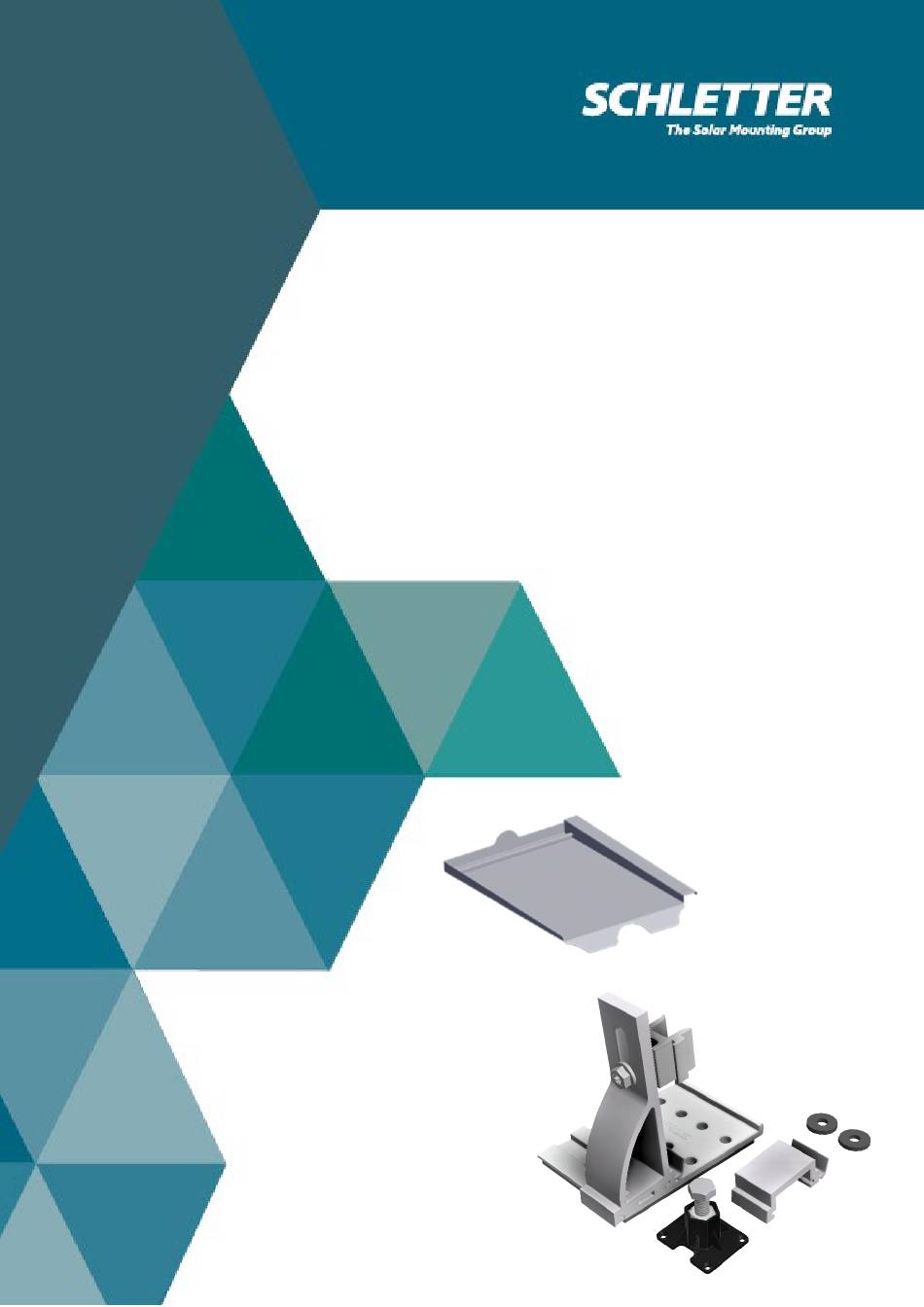

- Page 1 ALUTILE MOUNTING INSTRUCTION...
- Page 2 Injury hazard! Falling objects pose a risk of injury to people. Prior to installation, set up barriers in the hazard area to warn people nearby. ALUTILE | V1 | MOUNTING INSTRUCTION | 202112 SCHLETTER SOLAR GMBH | SUBJECT TO CHANGES...
- Page 3 • Select mounting position along the rafter • Cover the tile that is to be replaced with the AluTile replacement tile • Push bricks lying above or next to, the AluTile up or aside respectively Remove more bricks if necessary Preassemble load support Flex •...
- Page 4 2. Covering sheet metal replacement tile • Slightly lift the upper shingle Hook sheet metal replacement tile to battens • Apply waterproofing plate to underlying brick • ALUTILE | V1 | MOUNTING INSTRUCTION | 202112 SCHLETTER SOLAR GMBH | SUBJECT TO CHANGES...
- Page 5 3. Position mounting plate and install AluTile system hooks • Position mounting plate in the guide integrated in the sheet metal set tile above the rafter • Drill through the existing holes of the mounting plate into the sheet metal replacement tile –...
- Page 6 More information on our systems can be found at our website: www.schlettergroup.com in the Downloads area. ALUTILE | V1 | MOUNTING INSTRUCTION | 202112 SCHLETTER SOLAR GMBH | SUBJECT TO CHANGES...
- Page 7 SCHLETTER SOLAR GMBH Alustraße 1 83527 Kirchdorf GERMANY www.schletter-group.com We reserve the right to changes, including technical modifications.
