Rohm BD7411G-EVK-001 User Manual

Hall IC
BD7411G-EVK-001 Manual

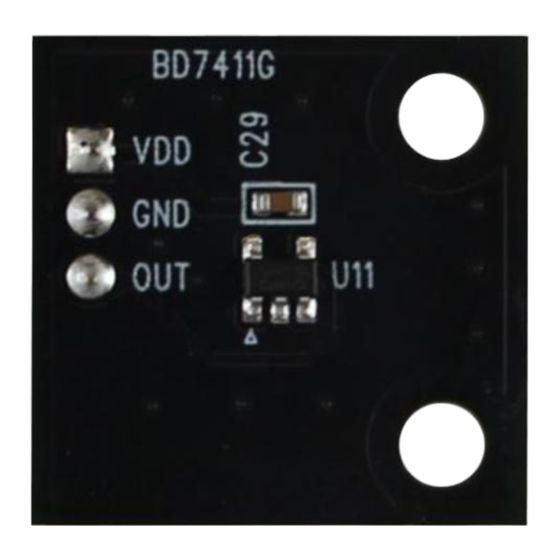

BD7411G-EVK-001 is an evaluation board for BD7411G, which is a ROHM Hall IC. This User's Guide is about how to use BD7411G-EVK-001
together with SensorShield* 1 . *1 SensorShield is sold as Shield-EVK-001.
Preparation
 Arduino Uno
 Personal Computer installed Arduino IDE
 Requirement : Arduino 1.6.7 or higher
 Please use Arduino IDE which can be
downloaded from the link below:
http://www.arduino.cc/
 USB cable for connecting Arduino and PC
 SensorShield
 BD7411G-EVK-001
 Magnet
Setting
Connect the Arduino and the SensorShield (Figure 1)
1.
USB connecter
Figure 1. Connection between the Arduino and the
SensorShield
Connect BD7411G-EVK-001 to the socket of GPIO area
2.
on the SensorShield (Figure 2)
Set Voltage of the SensorShield to 5.0V (Figure 2)
3.
© 2018 ROHM Co., Ltd.
1pc
1pc
1pc
1pc
1pc
1pc
Connect the Arduino to the PC using a USB cable
4.
Download BD7411G.zip from the link below:
5.
http://www.rohm.com/web/global/sensor-shield-support
SensorShield
Launch Arduino IDE
6.
Select [Sketch]->[Include Library]->[Add.ZIP library...],
7.
install BD7411G.zip
Select [File]->[Examples]->[BD7411G]->[example]->
8.
[BD7411G]
1/2
User's Guide
Figure 2. Connection between BD7411G-EVK-001 and
the SensorShield
No. 60UG061E Rev.001
Apr.2018
