Rohm BD96801-SPA7-EVK-301 Quick Start Manual

QUICK START
GUIDE
Evaluation board for PMIC BD96801, supplying a Xilinx Spartan-7 FPGA
BD96801-SPA7-EVK-301
This quick start guide will help you understand the connection, operating Instructions and important notices and warnings that need to be carefully
reviewed prior to use of the board (see Figure 1).
The evaluation board has been designed to demonstrate the performance of the PMIC BD96801 when powering a Xilinx Spartan-7 FPGA. The
BD96801 contains 4 buck converters and 3 LDOs that can be flexibly configured via factory OTP settings, user EEPROM settings or I2C commands.
For further information please refer to the user guide (No. 65UG018E Rev.001).

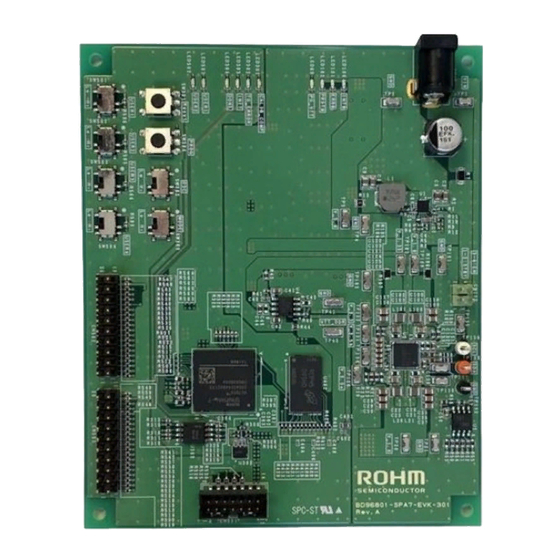

Figure 1: Evaluation board
Important Notice
This evaluation board is intended for product evaluation in a research and development context only and is not intended for resale to end
consumers and it is not authorized for end customer or household use. This board may not comply with CE or similar standards (including, but not
limited to the EMC directive 2004/EC/108) and may not fulfil other requirements of the country it will be operated in by the user. The user shall ensure
that the evaluation board will be handled in a way that is compliant with all the standards and regulations in the country it will be operated in.
