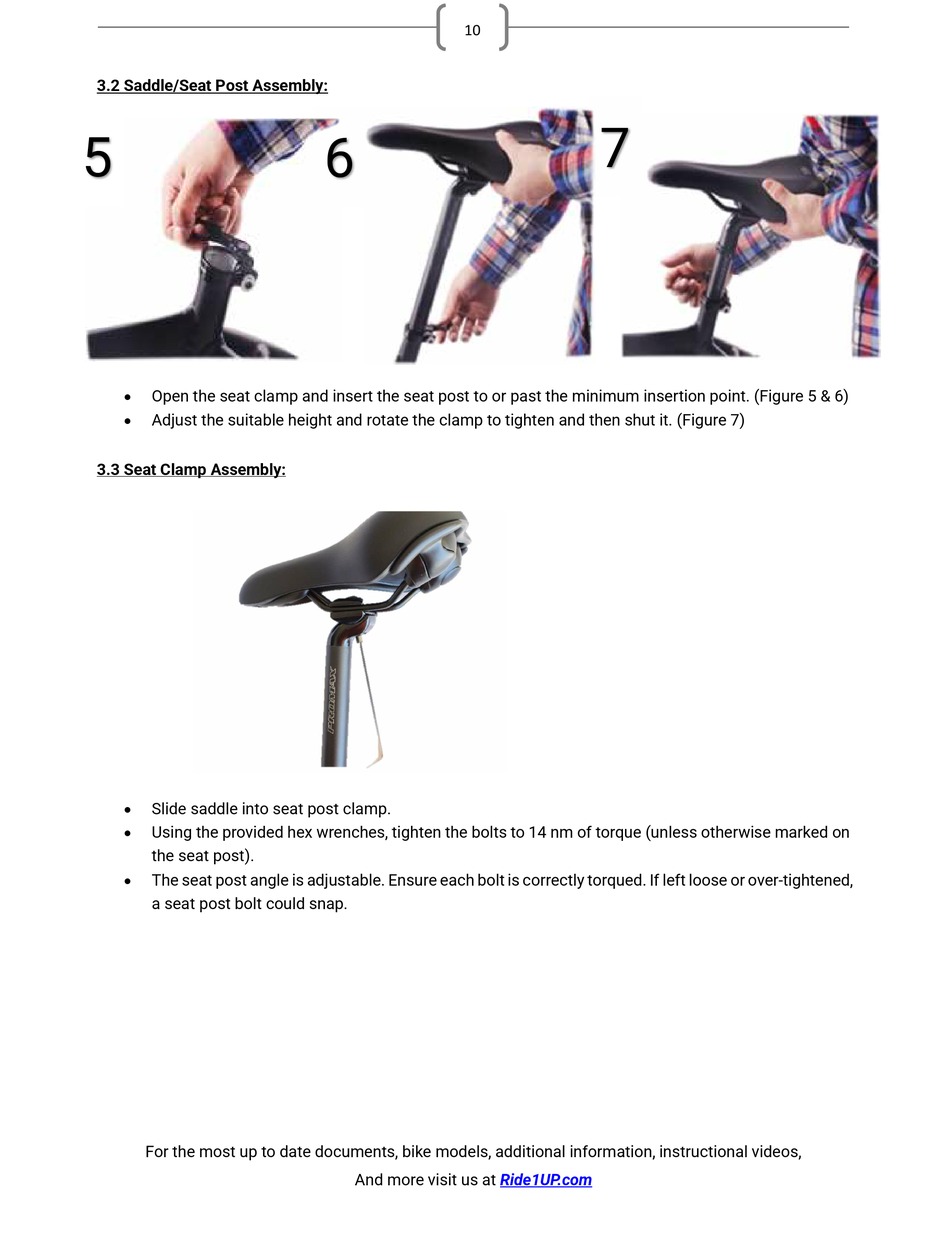

3.2 Saddle/Seat Post Assembly:

5

Open the seat clamp and insert the seat post to or past the minimum insertion point. (Figure 5 & 6)

Adjust the suitable height and rotate the clamp to tighten and then shut it. (Figure 7)

3.3 Seat Clamp Assembly:


Slide saddle into seat post clamp.

Using the provided hex wrenches, tighten the bolts to 14 nm of torque (unless otherwise marked on
the seat post).

The seat post angle is adjustable. Ensure each bolt is correctly torqued. If left loose or over-tightened,
a seat post bolt could snap.
For the most up to date documents, bike models, additional information, instructional videos,
10
6
And more visit us at Ride1UP.com
7
