Owner's Instructions
Part No. : L8710, L8711, L8711FZ, L8721, L8731, L8741
Industrial Hose Reels
DESCRIPTION

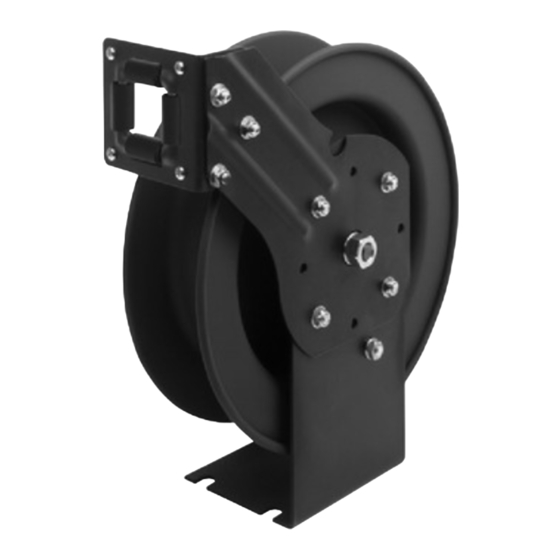

Open hose reel for air, water, grease, or oil, depending on model. Hose can be pulled to desired length and held in place
by a latching mechanism. Pulling the hose gently releases the latch and the hose is automatically coiled.
1
• Installation
• Hose Stopper Adjustment
• Hose Replacement
• Spring Load Adjustment
• Swivel Replacement
CAUTION:
Read all instructions and warnings before operating this product.
SAVE THESE INSTRUCTIONS! READ ALL INSTRUCTIONS!
Models L8710, L8711, L8711FZ, L8721, L8731, L8741
Repair Part
RP001056-FZ
RP001056
RP001057-FZ
RP001059
RP001066
RP006037
Description
3/8 in. x 50 ft. Flexzilla air hose
3/8 in. x 50 ft. air hose
1/2 in. x 50 ft. Flexzilla air hose
Swivel
1/2 in. x 50 ft. air hose
1/4 in. x 50 ft. grease hose
