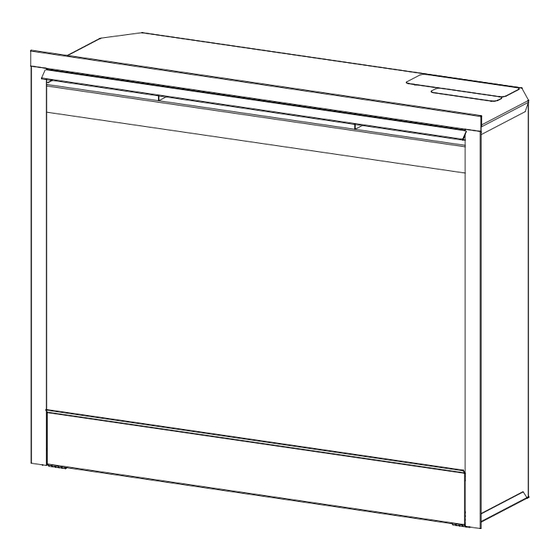

Dimplex BF8000ST Owner's Manual
Electric fireplace
Hide thumbs
Also See for BF8000ST:
- Owner's manual (17 pages) ,
- Practical user's manual (31 pages) ,
- Service manual (16 pages)
Advertisement
Table of Contents
Owner's Manual
Model Numbers:
BF8000ST
Serial Number
Model Number
Part Number
Valued Customer,
Thank you and congratulations for purchasing a Dimplex
electric fireplace. Over the years, valuable memories
will occur around the warmth and comfort of your
fireplace. Thank you for allowing our product to be the
backdrop for those special moments.
Quality checked by:
7208680300rev03
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Dimplex BF8000ST
Summary of Contents for Dimplex BF8000ST
- Page 1 Owner’s Manual Model Numbers: BF8000ST Serial Number Model Number Part Number Valued Customer, Thank you and congratulations for purchasing a Dimplex electric fireplace. Over the years, valuable memories will occur around the warmth and comfort of your fireplace. Thank you for allowing our product to be the backdrop for those special moments. Quality checked by: 7208680300rev03...
- Page 2 QUICK REFERENCE GUIDE 1. Prior to the first use of the fireplace verify the following: • Are the circuit breakers for the fireplace on? • Are the light bulbs in your fireplace loose? (To check, follow the instructions for replacing the light bulbs under the maintenance section of this manual) 2. The heater on your fireplace may emit a slight, harmless odor when first used. This odor is a normal condition caused by the initial heating of internal heater parts. 3. The information regarding the model of your fireplace can be found on a label located behind the control panel on the front of the fireplace. Refer to page 6 of the manual. 4. If you have any technical questions regarding the operation of your fireplace, or require service for your fireplace contact Dimplex North America customer service at 1-888-DIMPLEX (1-888-346-7539).
-
Page 3: Table Of Contents
CONTENTS Important Instructions ....PAGE 4 Model and Serial Number Information. . .PAGE 6 Fireplace Assembly ....PAGE 6 Site Selection and Preparation ..PAGE 7 Fireplace Insert Installation . -
Page 4: Important Instructions
1. Read all instructions before using the electric fireplace. 2. This fireplace is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. The trim around the heater outlet becomes hot during heater operation. 3. Extreme caution is necessary when any heater is used by or near children or invalids and whenever the unit is left operating and unattended. 4. Young children should be supervised to ensure that they do not play with the appliance. 5. The appliance is not intended for use by young children or infirmed persons without supervision. 6. The appliance must be positioned so that the plug is accessible. 7. Always unplug the electric fireplace when not in use. 8. If the supply cord is damaged, it must be replaced by the manufacturer, or its service agent, or a qualified person in order to avoid a hazard. 9. Do not operate any unit with a damaged cord or plug, or if the heater has malfunctioned, or if the electric fireplace has been dropped or damaged in any manner. Contact Dimplex Technical Service 1-888-346-7539. 10. Do not use outdoors. 11. Never locate fireplace where it may fall into a bathtub or other water container. 12. Do not install the fireplace directly on carpet or a similar surface which may restrict air circulation beneath the unit. 13. Do not run the cord under carpeting. Do not cover cord with throw rugs, runners, or the like. Arrange cord away from traffic area and where it will not be tripped over. 14. Do not locate the heater immediately below a fixed socket-outlet. 15. To disconnect the fireplace, turn the controls off, then remove the plug from the outlet. 16. Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an electric shock or fire, or damage to the heater. 17. Although this unit is of zero clearance design, to prevent a possible fire, do... -
Page 5: Save These Instructions
like a bed, where openings may become blocked. 18. All electrical heaters have hot and arcing or sparking parts inside. Do not use in areas where gasoline, paint, or flammable liquids are used or stored or where the unit will be exposed to flammable vapors. 19. Do not modify the electric fireplace. Use it only as described in this manual. Any other use not recommended by the manufacturer may cause fire, electric shock or injury to persons. 20. Avoid the use of an extension cord. Extension cords may overheat and cause a risk of fire. If you must use an extension cord, the cord shall be No. 14 AWG minimum size and rated not less then 1875 Watts. 21. Do not burn wood or other materials in the electric fireplace. 22. Do not strike the fireplace glass. 23. Always use a certified electrician should new circuits or outlets be required. 24. Always use properly grounded, fused and polarized outlets. 25. Disconnect all power supply before performing any cleaning, maintenance or relocation of the unit. 26. When transporting or storing the unit and cord, keep in a dry place, free from excessive vibration and store so as to avoid damage. NO USER-SERvICEAbLE PARTS INSIDE SAVE THESE INSTRUCTIONS NOTE: Procedures and techniques that are considered important enough to emphasize. CAUTION: Procedures and techniques which, if not carefully followed, will result in damage to the equipment. WARNING: Procedures and techniques which, if not carefully followed, will expose the user to the risk of fire, serious injury, illness or death. CAUTION RISk OF ELECTRIC ShOCk DO NOT OPEN... -
Page 6: Model And Serial Number Information
Model and Serial Number Information If you have any questions regarding our products please have the product model number and serial numbers available upon calling Dimplex customer service or technical support. To locate the model and serial number labels see below. Record the model number, serial number on the front cover of this manual for future reference (Figure 1). Figure 1 Serial Number WARNING: Ensure the power cord is not installed so that it is pinched or against any sharp edges and ensure that the power cord is stored or secured to avoid tripping or snagging to reduce the risk of fire, electric shock or injury to persons. -
Page 7: Site Selection And Preparation
Figure 2 Foam block Cable Ties Site Selection and Preparation This section provides instructions for selecting a location and preparing the site to install the fireplace into your Dimplex mantel surround. 1. Select a suitable location that is not susceptible to moisture and is away from drapes, furniture and high traffic. 2. For ease of electrical hook up you may wish to locate the fireplace near an existing outlet (refer to NOTE 1). 3. Store the fireplace in a safe dry and dust free location. CAUTION: Clearance for air circulation beneath the fireplace is provided by two spacers. Do not install fireplace directly on Figure 3... -
Page 8: Fireplace Insert Installation
Install the fireplace assembly into the mantel (refer to mantel assembly instructions). ! NOTE: A 15 Amp, 120 volt circuit is required. A dedicated circuit is preferred but not essential in all cases. A dedicated circuit will be required if after installation the circuit breaker trips or fuse blows on a regular basis when the heater is operating. Additional appliances on the same circuit may exceed the current rating of the circuit breaker. ! IMPORTANT: If not using a Dimplex mantel, the fireplace must be installed in an enclosure with the following MINIMUM dimensions (Figure 5). 26 ¼” (663 mm) 23 ½” (596 mm) 8 ¾” (222 mm) - Page 9 New Wall Construction 1. Select a suitable location that is not susceptible to moisture and is away from drapes, furniture and high traffic. 2. Place the fireplace in the desired location to see how it will look in the room. 3. Mark the desired location on the floor. 4. Use studs to frame an opening of 26 ¾ inch (679 mm) wide x 2 3 ⅛ inch (587 mm) high x 9 inch (229 mm) deep. Option #1: The power cord can be run from behind the trim and along the wall to an outlet near the fireplace.
-
Page 10: Operation
directly on carpet or similar surfaces which may restrict air circulation. If installing the fireplace in a carpeted area, place a one-piece, solid, flat surface under the fireplace insert. Ensure that all three (3) of the insert’s feet rest securely on this surface. For Bathroom Use If this unit is installed in a bathroom it must be protected by a GFI receptacle or circuit. If receptacle is used it must be readily accessible. To prevent electrical shock this unit is an electrical appliance that is not watertight and must be installed as to prevent water from entering unit. This must be installed away from showers, tubs, etc. Never locate fireplace where it may fall into a bathtub or other water container. high temperatures may be generated under certain abnormal conditions. Do not partially or fully cover or obstruct the front of this heater. Operation Electric Fireplace Manual Controls The manual controls for the fireplace are behind the access panel located at the bottom of the fireplace (Figure 6). -
Page 11: Maintenance
C. Interior Light Control Turn the interior light control knob to increase or decrease the brightness of the interior light. D. Heater Thermostat Control To adjust the temperature to your individual requirements, turn the thermostat control clockwise all the way to turn on the heater. When the room reaches the desired temperature, turn the thermostat knob counter clockwise until you hear a click. Leave in this position to maintain the room temperature at its setting. For additional heat, turn clockwise until you hear the click again and the heater will turn on. To turn the heater off, rotate the knob fully counter clockwise. E. Main On/Off Switch The Main On/Off Switch supplies power to all fireplace functions. Resetting the Temperature Cutoff Switch This unit is equipped with a thermostat which controls the temperature of the room by turning the heater on and off. The heater is protected with a safety device to prevent overheating. Should the heater overheat, an automatic cut out will turn the heater off and it will not come back on without being reset. It can be reset by switching the Main On/Off Switch to off and waiting five (5) minutes before switching the unit back on. - Page 12 to be replaced when you notice a dark section of the flame or when the clarity and detail of the log Ember bed exterior reduces. There are three (3) bulbs under the Log Set, which generate the flames and embers, and two (2) bulbs above the log that illuminate the log exterior. Lower Light Bulb Requirements Quantity of three (3) clear chandelier or candelabra bulbs with an E-12 (small) socket base, 60 Watt rating. Example: GE 60bC or Philips 60CTC. Do not exceed 60 Watts per bulb. Helpful Hints It is a good idea to replace all light bulbs at one time if they are close to the end of their rated life. Group replacement will reduce the number of times you need to open the unit to replace light bulbs. Replacement: 1. Slide fireplace out of mantel. 2. Lay unit on it’s back for safe removal of front glass. 3. Remove four (4) Phillips screws from the right side of Trim. 4. Remove Trim. 5. Slide glass to right side of fireplace to remove (Figure 7). Figure 7 Lower bulbs Front Log Set Glass 6. Pull the front edge of the plastic Ember bed or plastic grate up and forward until the rear tab releases from the ledge located at the...
- Page 13 IMPORTANT: Only handle the Log Set by the Ember bed. NOTE: Log Set fits tightly into firebox, some force may be necessary to remove. 7. Set Log Set in front of fireplace. 8. Remove flicker rod by sliding flicker rod to the left away from the flicker motor and lifting out. 9. Remove light bracket for easier access to light bulbs. 10. U nscrew bulbs counter clockwise. 11. Insert new bulbs. 12. R eplace the Log Set by inserting the front edge of the fireplace and push down on the rear edge of the Ember bed until it snaps into place (Figure 8). 13. L ay unit on it’s back and slide front glass back into position and attach trim. NOTE: Ensure the Log Set is installed tightly under the back ledge to prevent light leakage. Upper Light Bulb Requirements Quantity of two (2) clear chandelier or candelabra bulbs with an E-12 (small) socket base, 15 Watt rating. Do not exceed 25 Watts per bulb. To access the upper light bulb area: 1. Slide fireplace out of mantel.
-
Page 14: Warranty
Fireplace Surface Cleaning Use a cloth dampened with warm water only to clean painted surfaces of the electric fireplace. Do not use abrasive cleaners. Two Year Limited Warranty Products to which this limited warranty applies This limited warranty applies to your newly purchased Dimplex electric fireplace. This limited warranty applies only to purchases made in any province of Canada except for Yukon Territory, Nunavut, or Northwest Territories or in any of the 50 States of the USA (and the District of Columbia) except for hawaii and Alaska. This limited warranty applies to the original purchaser of the product only and is not transferable. Products excluded from this limited warranty Light bulbs are not covered by this limited warranty and are the sole responsibility of the owner/purchaser. Products purchased in Yukon Territory, Nunavut, Northwest Territories,... - Page 15 What Dimplex will do in the event of a defect In the event a product or part covered by this limited warranty is proven to be defective in material or workmanship during (i) the 2 year limited warranty period for products other than fireplace surrounds (mantels) and trims, and (ii) the 1 year limited warranty period for surrounds (mantels) and trims, you have the following rights: • Dimplex will in its sole discretion either repair or replace such defective product or part without charge. If Dimplex is unable to repair or replace such product or part, or if repair or replacement is not commercially practicable or cannot be timely made, Dimplex may, in lieu of repair or replacement, choose to refund the purchase price for such product or part. • Limited warranty service will be performed solely by dealers or service agents of Dimplex authorized to provide limited warranty services. • For products other than surrounds (mantels) and trims, this 2 year limited warranty entitles the purchaser to on-site or in-home warranty services. Accordingly, Dimplex will be responsible for all labour and transportation associated with repairing or replacing the product or part except as follows: (i) charges which may be levied for travel costs incurred to travel to the purchaser’s site where the product is located...
- Page 16 Such costs shall be the purchaser’s responsibility. What Dimplex and its dealers and service agents are also not responsible for: IN NO EvENT WILL DIMPLEX, OR ITS DIRECTORS, OFFICERS, OR AGENTS, bE LIAbLE TO ThE PURChASER OR ANY ThIRD PARTY. WhEThER IN CONTRACT, IN TORT, OR ON ANY OThER bASIS, FOR ANY INDIRECT, SPECIAL, PUNITIvE, EXEMPLARY, CONSEQUENTIAL, OR INCIDENTAL LOSS, COST, OR DAMAGE...
Need help?
Do you have a question about the BF8000ST and is the answer not in the manual?
Questions and answers
Hi, I have a electric fireplace in my rv model Dimplex BF8000ST, and was needing to know if it is possible to add a external wall thermostat.
No, the Dimplex BF8000ST electric fireplace cannot be connected to an external wall thermostat. It includes a built-in thermostat and does not mention compatibility with external wall thermostats.
This answer is automatically generated
