Page 1

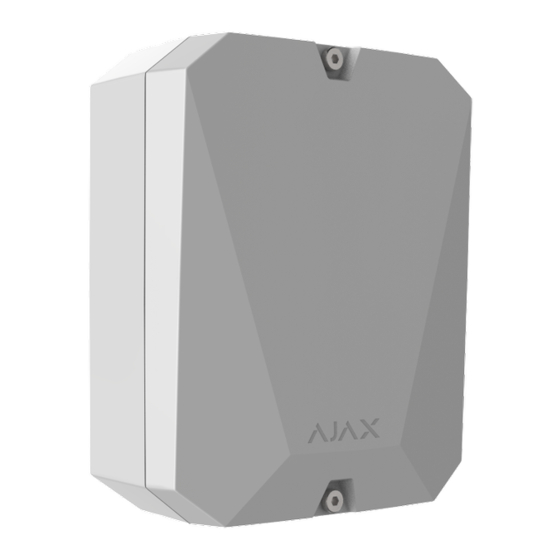

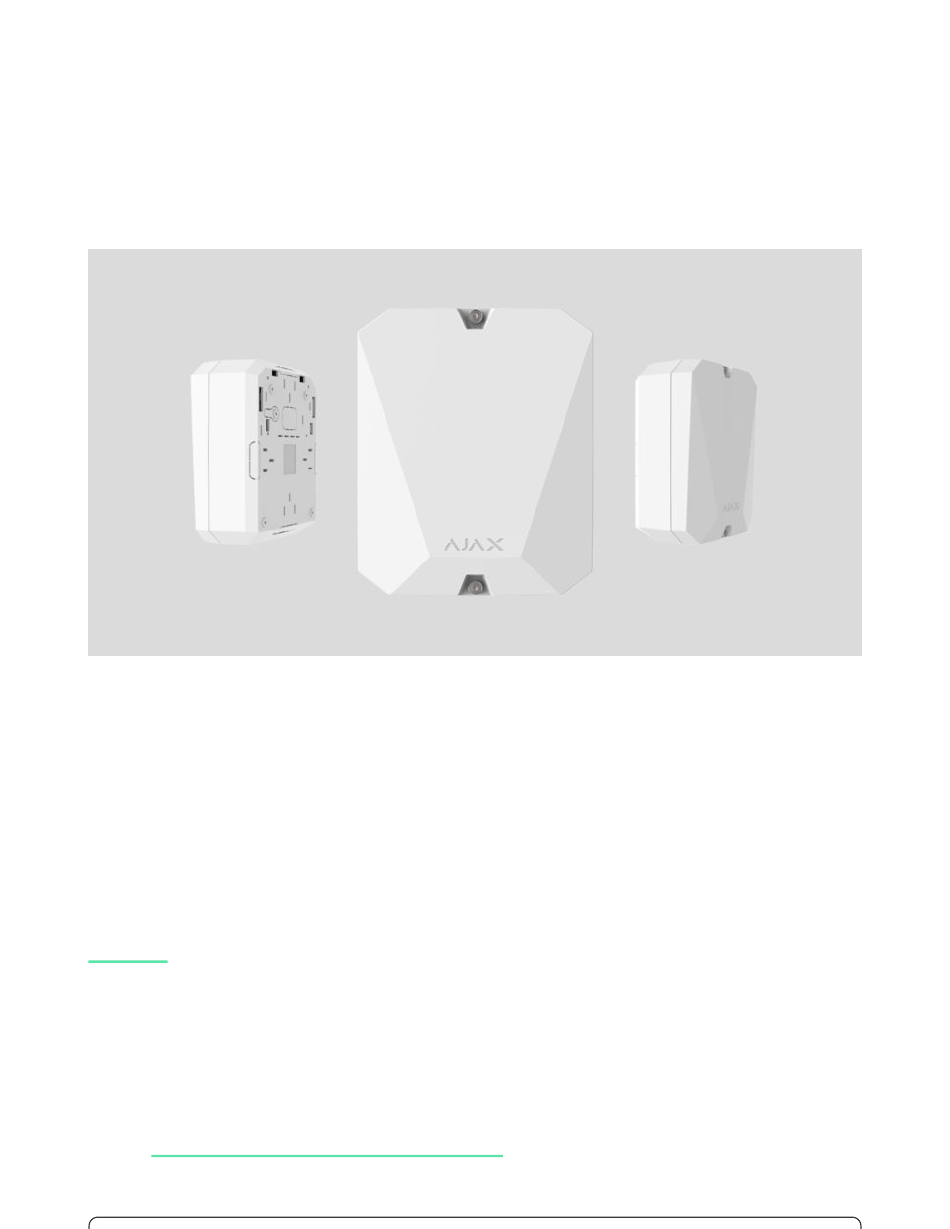

Ajax security system. To protect against dismantling, MultiTransmitter is equipped with two tampers. It is powered from the mains 100– 240 V AC, and can also run on a 12 V backup battery. It can supply 12 V power to connected detectors.
Android, macOS, and Windows. All alarms and user events are reported by push notifications, SMS, and calls if enabled. Ajax security system can be connected to the central monitoring station of the security company. The list of authorized...
Page 3
MultiTransmitter card elements 1. Power supply terminals for fire detectors 2. Power supply input 110/230 V 3. Tamper button. Signals if MultiTransmitter body lid is removed 4. Terminals for connecting a 12 V backup battery 5. Power button . LED indicator 7.
MultiTransmitter terminals Left-hand terminals: GND — MultiTransmitter common ground +EXT — 12 V power supply output for fire detectors COM — common input for connecting power supply circuits and signal contacts of wired detectors Right-hand terminals: Z1–Z18 — input for wired detector сonnection +12 V —...
Page 5
MultiTransmitter LED indicator may light up white, red, or green, depending on the status of the device. Please note that the LED indicator is not visible when the body lid is closed, but the status of the device can be found in the Ajax app. LED indication...
If MultiTransmitter is not assigned to the hub or has lost connection with it, the integration module will not give an indication of the battery status or the presence of external power supply. Operating principle MultiTransmitter is designed for connecting third-party wired detectors and devices to the Ajax security system.
Page 7
Intrusion alarm Fire alarm Medical alarm Panic button Gas concentration alarm...
Page 8
The loop (zone) number of the integration module and the devices connected to it can be found in Ajax apps, in the Groups menu of the hub settings. To learn the loop (zone) number, select the group in which the integration module is located or the desired connected device.
Page 9
2. Check that the hub is on and has access to the internet (via Ethernet cable, Wi- Fi, and/or mobile network). You can do this in the Ajax app or by looking at the hub logo on the front panel. The logo should light up white or green if the hub is connected to the network.
Page 10
Updating device statuses in the list depends on the ping time defined in Jeweller settings. The default value is 36 seconds. MultiTransmitter states Icons Icons display some of the MultiTransmitter states. You can view them in the Ajax app, in the Devices tab Icon Value Jeweller signal strength —...
Page 11
What is a tamper External Power The presence of external power supply 110/230 V The ReX range extender connection status. Displayed if MultiTransmitter is working via a ReX “range extender name” ReX radio signal range extender Detector power line Status of detector power terminals: OK —...
Page 12
(specified in the settings for Devices Auto Deactivation). The feature is configured in the Ajax PRO app. By timer — the device is automatically disabled by the system when the recovery timer expires (specified in the settings for...
Page 13
The name can contain up to 12 Cyrillic characters or up to 24 Latin symbols Selecting the virtual room to which MultiTransmitter is assigned. The room name is Room displayed in the text of SMS and notifications in the event feed...
Page 14
States of connected detectors and devices You can find the states of connected wired detectors and devices in the Ajax app 1. Go to the Devices tab 2. Select MultiTransmitter in the device list. 3. Click on Devices. 4. Select the device from the list.
Page 15
Parameter Value Click to open the malfunctions list of the connected wired detector. Malfunction The field is displayed only if a malfunction is detected Delay time when entering in seconds. Delay when entering (alarm activation delay) is the time you have to disarm the security system after entering the premises Delay when entering, sec...
Page 16
Status is only available in case of an EOL NO connection When enabled, the detector is always in armed Always active mode Status and name of the MultiTransmitter to which the wired detector is connected: Connected — MultiTransmitter is connected to MultiTransmitter the hub No connection —...
Page 17
Settings can be changed in the Ajax app 1. Go to the Devices tab 2. Select MultiTransmitter in the device list. 3. Click on Devices. 4. Select the desired device from the list. 5. Go to Settings by clicking on the...
Page 18
Setting Value The name of the detector or device that can be changed. The name is displayed in the text of SMS and notifications in the event feed. First field The name can contain up to 12 Cyrillic characters or up to 24 Latin symbols Selecting the virtual room to which a detector or device is assigned.
Page 19
Type of connected detector or device: Pulse — e. g., a motion detector. After an alarm, a recovery event is not sent if the detector returns to the normal state Bistable — e. g., an opening detector. After an alarm, a recovery event is also sent when the External detector type detector returns to the normal state Set the type that matches the connected detector.
Page 20
Can be set from 1 kΩ to 7.5 kΩ in increments of 100 ohms. Resistance MultiTransmitter automatically measures the resistance of the connected resistor and displays it in this field as the recommended value Selecting the detector alarm type:...
Page 21
Unpair device Deletes wired detector or device settings Connecting wired detectors and devices to MultiTransmitter How to connect a wired detector or device When connecting third-party detectors and devices, do not twist the wires together, but solder them. The ends of wires of the devices or detectors, which will be inserted into the...
Page 22
1. Select the MultiTransmitter zone to which you would like to connect a detector or device. 2. Route the wires of the detector or device into the integration module body. 3. Connect a wired detector or device to the appropriate MultiTransmitter terminals.
Page 23
Tests are available in the device settings menu (Ajax app Devices MultiTransmitter Settings Jeweller Signal Strength Test Attenuation Test Selecting MultiTransmitter placement The placement of the integration module determines its distance from the hub and the presence of obstacles between them that impede the passage of the radio signal: walls, inter-floor constructions, or large-sized objects located in the room.
4. Connect wired detectors and devices to the integration module. Turn on the integration module. 5. Install the lid on the body and secure it with the bundled screws. After installation, be sure to check the MultiTransmitter tamper status in the Ajax app. Do not install the integration module: Outdoors.
Page 25
Do not use any substances containing alcohol, acetone, gasoline, and other active solvents to clean the device. Malfunction notifications MultiTransmitter can report malfunctions to the central monitoring station of the security company, as well as to users through push notifications and SMS. Notification...
In case of alarms of the fire detectors connected to MultiTransmitter, the window prompting of the need to reset the alarms is displayed in the Ajax app. This will make the detectors return to their normal state and continue to respond to a fire.
Tamper 868.0–868.6 MHz or 868.7–869.2 MHz, Radio signal frequency band depending on the sales region hubs range Operates only with all Ajax , and Compatibility extenders Maximum RF output power Up to 7.29 mW (25 mW limit) Radio signal range...
Warranty The warranty for the “AJAX SYSTEMS MANUFACTURING” Limited Liability Company products is valid for 2 years after the purchase. If the device does not work correctly, you should first contact the support service. In half of the cases, technical issues can be solved remotely!
