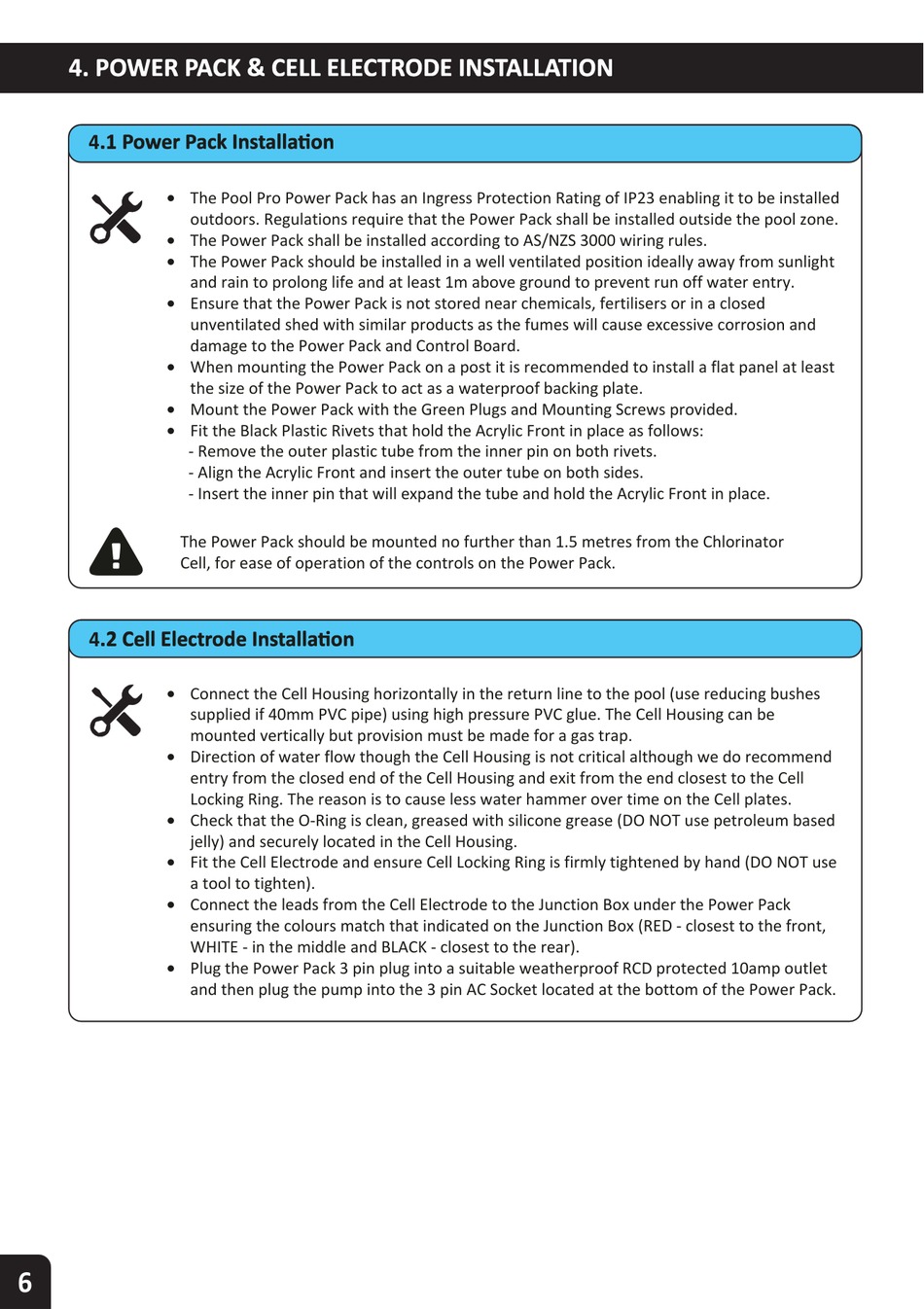

4. POWER PACK & CELL ELECTRODE INSTALLATION

4.1 Power Pack Installation

• The Pool Pro Power Pack has an Ingress Protection Rating of IP23 enabling it to be installed
outdoors. Regulations require that the Power Pack shall be installed outside the pool zone.
• The Power Pack shall be installed according to AS/NZS 3000 wiring rules.
• The Power Pack should be installed in a well ventilated position ideally away from sunlight
and rain to prolong life and at least 1m above ground to prevent run off water entry.
• Ensure that the Power Pack is not stored near chemicals, fertilisers or in a closed
unventilated shed with similar products as the fumes will cause excessive corrosion and
damage to the Power Pack and Control Board.
• When mounting the Power Pack on a post it is recommended to install a flat panel at least
the size of the Power Pack to act as a waterproof backing plate.
• Mount the Power Pack with the Green Plugs and Mounting Screws provided.
• Fit the Black Plastic Rivets that hold the Acrylic Front in place as follows:
- Remove the outer plastic tube from the inner pin on both rivets.
- Align the Acrylic Front and insert the outer tube on both sides.
- Insert the inner pin that will expand the tube and hold the Acrylic Front in place.
A
The Power Pack should be mounted no further than 1.5 metres from the Chlorinator
Cell, for ease of operation of the controls on the Power Pack.

4.2 Cell Electrode Installation

• Connect the Cell Housing horizontally in the return line to the pool (use reducing bushes
supplied if 40mm PVC pipe) using high pressure PVC glue. The Cell Housing can be
mounted vertically but provision must be made for a gas trap.
• Direction of water flow though the Cell Housing is not critical although we do recommend
entry from the closed end of the Cell Housing and exit from the end closest to the Cell
Locking Ring. The reason is to cause less water hammer over time on the Cell plates.
• Check that the O-Ring is clean, greased with silicone grease (DO NOT use petroleum based
jelly) and securely located in the Cell Housing.
• Fit the Cell Electrode and ensure Cell Locking Ring is firmly tightened by hand (DO NOT use
a tool to tighten).
• Connect the leads from the Cell Electrode to the Junction Box under the Power Pack
ensuring the colours match that indicated on the Junction Box (RED - closest to the front,
WHITE - in the middle and BLACK - closest to the rear).
• Plug the Power Pack 3 pin plug into a suitable weatherproof RCD protected 10amp outlet
and then plug the pump into the 3 pin AC Socket located at the bottom of the Power Pack.
6
