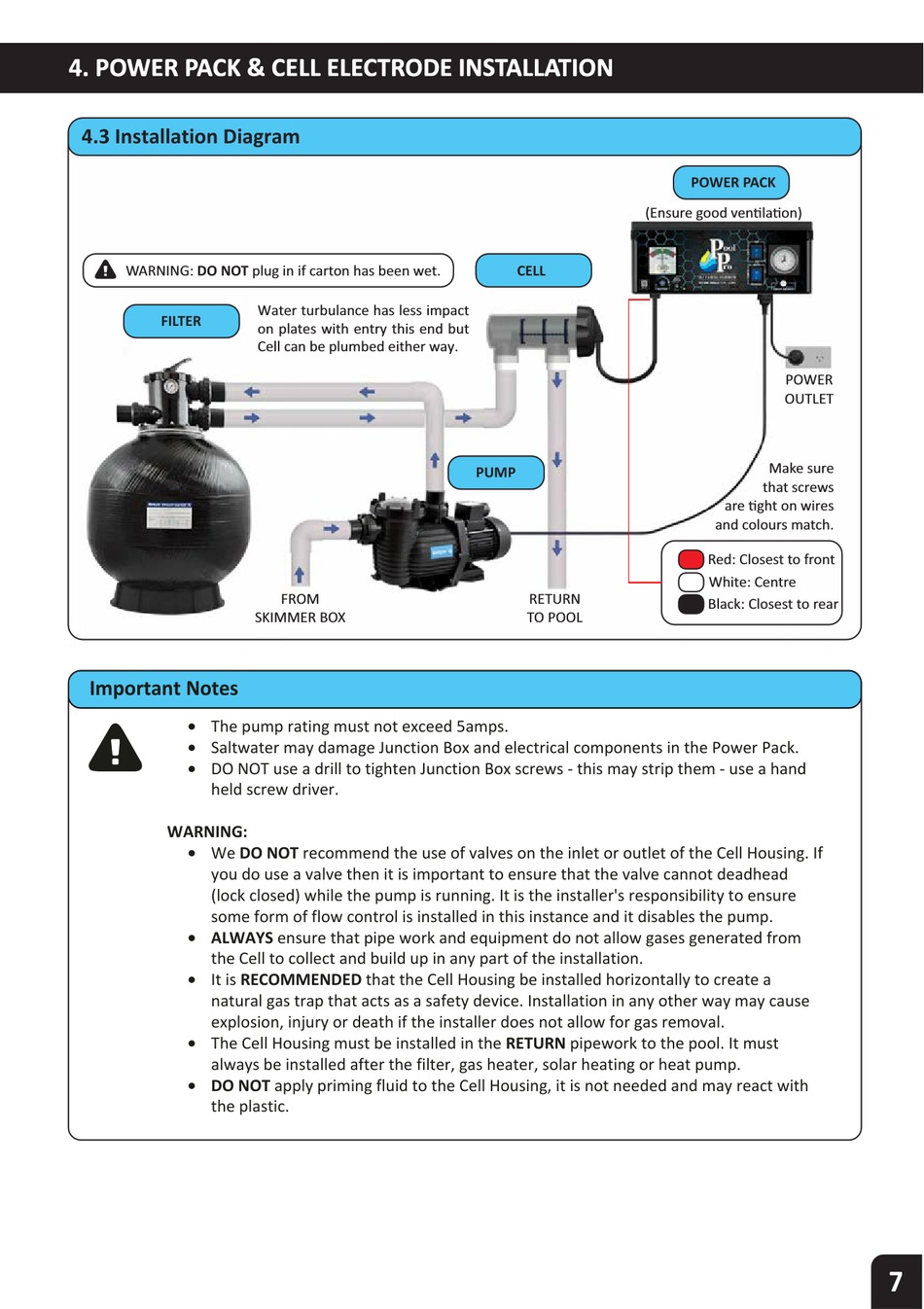

4. POWER PACK & CELL ELECTRODE INSTALLATION

4.3 Installation Diagram

WARNING: DO NOT plug in if carton has been wet.
FILTER
Important Notes
A
• The pump rating must not exceed 5amps.
• Saltwater may damage Junction Box and electrical components in the Power Pack.
• DO NOT use a drill to tighten Junction Box screws - this may strip them - use a hand
held screw driver.
WARNING:
• We DO NOT recommend the use of valves on the inlet or outlet of the Cell Housing. If
you do use a valve then it is important to ensure that the valve cannot deadhead
(lock closed) while the pump is running. It is the installer's responsibility to ensure
some form of flow control is installed in this instance and it disables the pump.
• ALWAYS ensure that pipe work and equipment do not allow gases generated from
the Cell to collect and build up in any part of the installation.
• It is RECOMMENDED that the Cell Housing be installed horizontally to create a
natural gas trap that acts as a safety device. Installation in any other way may cause
explosion, injury or death if the installer does not allow for gas removal.
• The Cell Housing must be installed in the RETURN pipework to the pool. It must
always be installed after the filter, gas heater, solar heating or heat pump.
• DO NOT apply priming fluid to the Cell Housing, it is not needed and may react with
the plastic.
Water turbulance has less impact
on plates with entry this end but
Cell can be plumbed either way.
FROM
SKIMMER BOX
(Ensure good ven la on)
CELL
PUMP
RETURN
TO POOL
POWER PACK
POWER
OUTLET
Make sure
that screws
are ght on wires
and colours match.
Red: Closest to front
White: Centre
Black: Closest to rear
