5.5 Dimensions and position of pipe connection RX35 / 50/65 - Low
model.

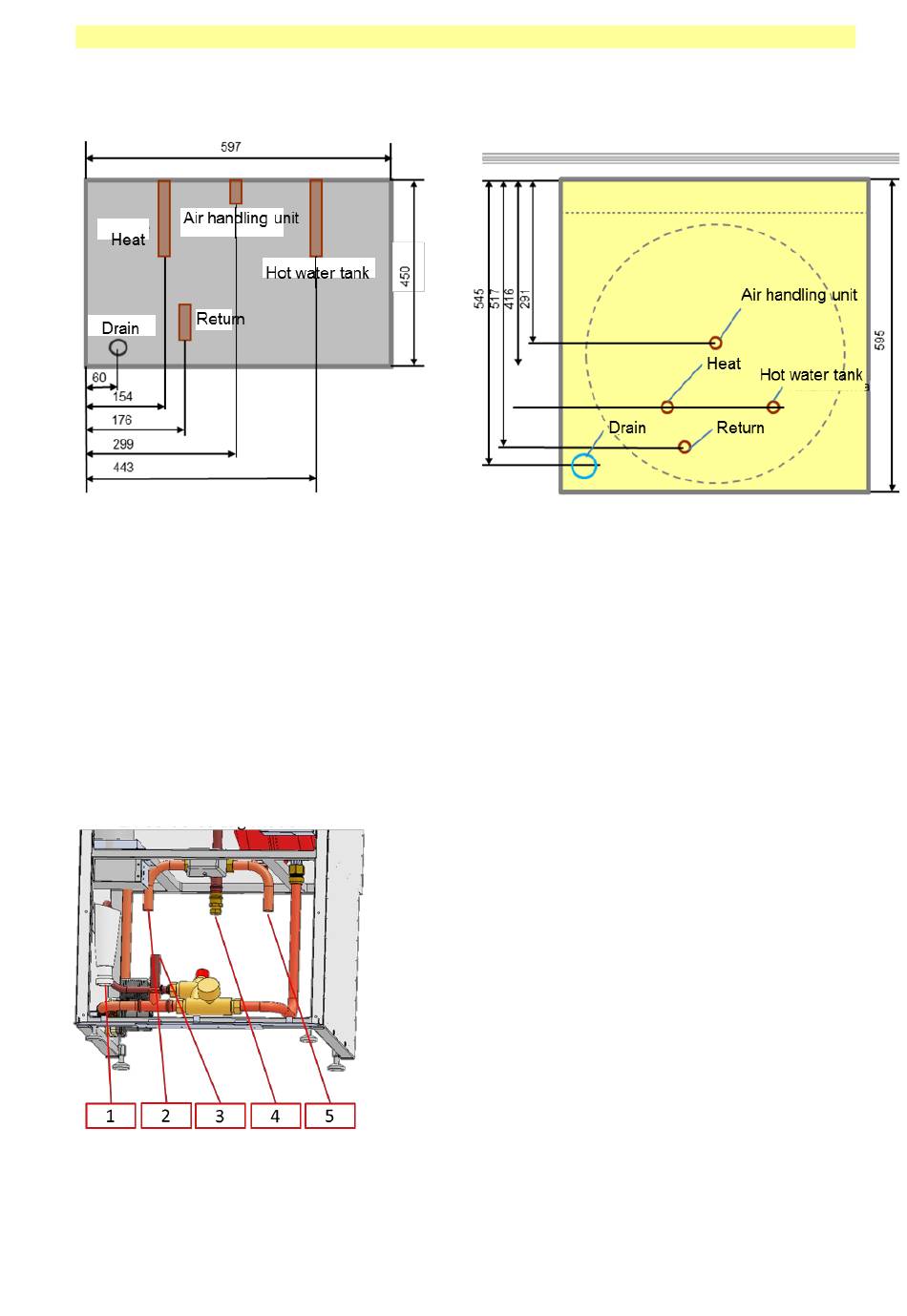

Pipe dimensions
Heat
Return
Hot water tank
Air handling unit
Drain
Pipe connections
EX-35-50-65 Low model
Flow pipe, circulation water
Return pipe, circulation water
Connection hot water tank
Connection of air supply units,
plugged in on delivery, optional
connected.
Drain water discharge
1. Drain water, connected to floor drain.
2. Heat circulation water to the house.
3. Return from the house, hot water tank and optionally
4. Connection for air supply units, optional.
5. Supply for hot water tank.
air supply unit.
22
service & maintenance
Pipe Ø 22 mm
Pipe Ø 22 mm
Compression Ø 22 mm
External screw DN15
PVC pipes 32 mm, ex M42x2
