Blancett FloClean Installation Instructions Manual

100 East Felix St. South, Suite 190
Fort Worth, Texas 76115
817.920.9998
800.235.1638• • Fax: 817.921.5282
Www.blancett.com
INSTALLATION & INSTRUCTION MANUAL
FloClean™ ™
Turbine Meter Repair Kits
Rev. A

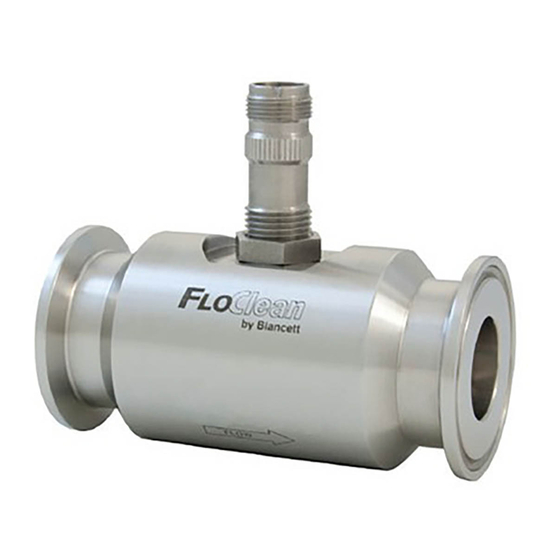

GENERAL DESCRIPTION:

The FloClean™ turbine flow meter is designed with wear resistant moving parts to provide
trouble free operation and long service life per 3-A specifications. The kit allows easy field
repair of a damaged flow meter, rather than replacing the entire flow meter. Repair parts are
constructed of stainless steel alloy and tungsten carbide.
Fluid moving through the turbine flow meter causes the rotor to turn at a speed proportional to the
flow rate. The rotor blade cuts the magnetic field of the magnetic pick-up, which in turn
generates a frequency output signal that is directly proportional to the speed. The signal is used
to represent flow rate and/or totalization of fluid passing through the turbine flow meter. See

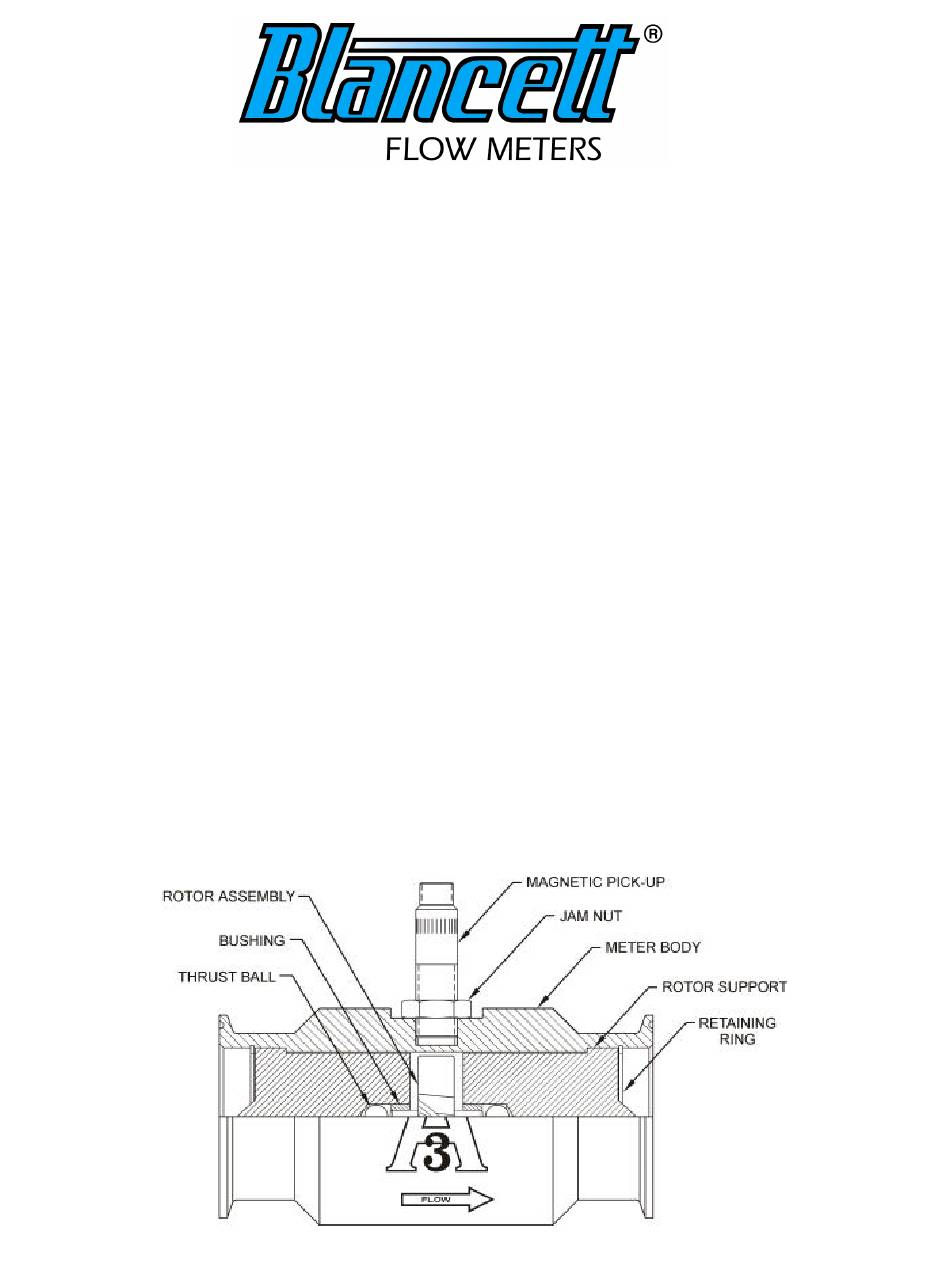

Figure 1 for typical turbine meter assembly.
Each FloClean repair kit is factory calibrated to ensure accuracy throughout the entire flow range.
Each kit is complete and includes a new K-Factor, which is the calibrated number of pulses
generated by each gallon of liquid. This K-factor will be used to recalibrate the monitor, or other
electronics, to provide accurate output data.
FloClean™-RK 1
