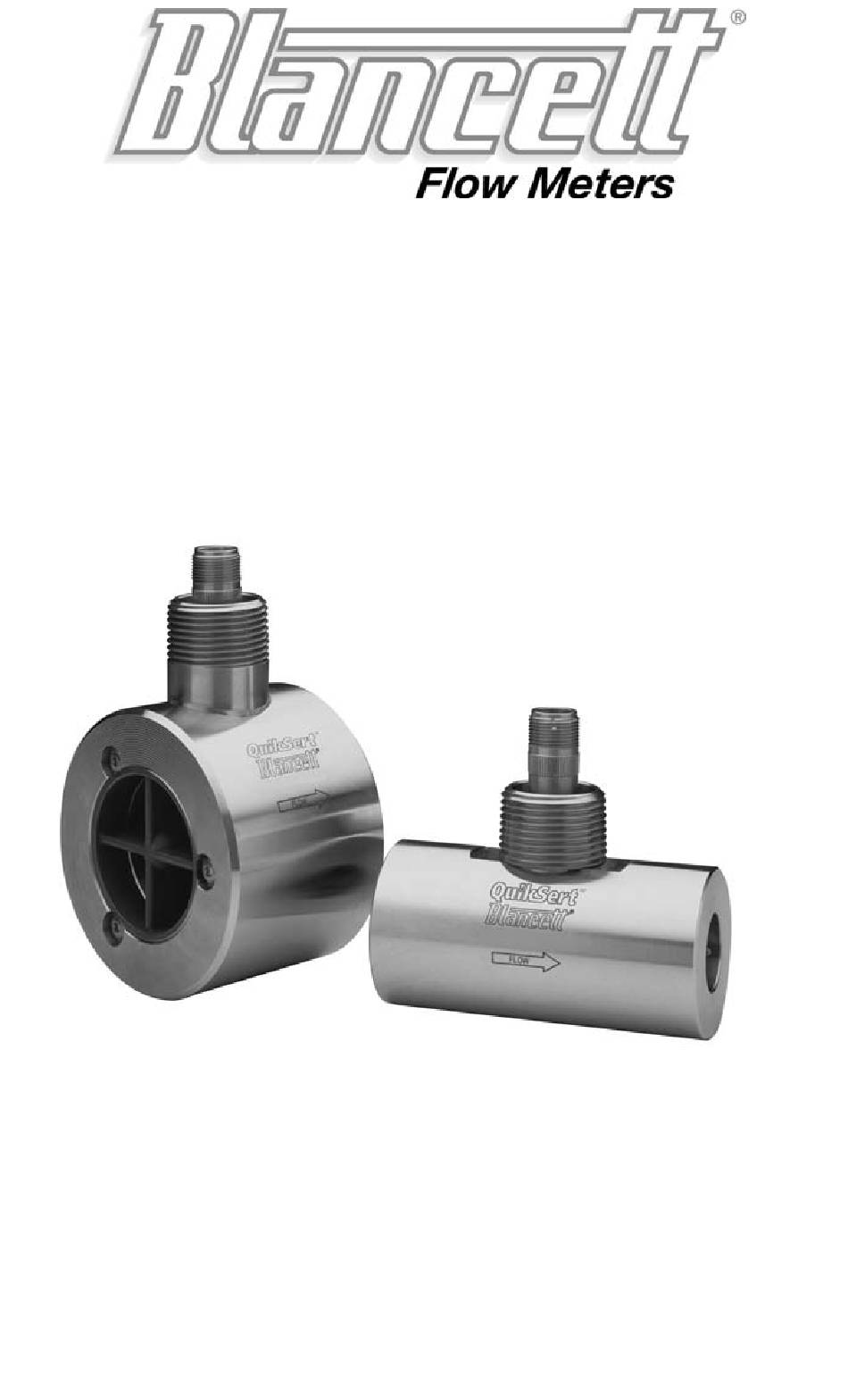

- Page 1 ™ QUIKSERT FLOW METER OPERATION & INSTALLATION MANUAL 8635 Washington Ave. Racine, Wisconsin 53406 Technical Toll-Free: 877.722.4631 Sales Toll-Free: 800.235.1638 Phone: 262.639.6770 Fax: 262.639.2267 www.blancett.com...
-
Page 2: Table Of Contents
Specifications.………………………..……………..4 Illustrations…...………….…………………………...5 Installation Instructions……………..……………..6 Operational Startup…….……………………………9 Calibration…….……………………………………...9 Troubleshooting……………………………………...10 Part Numbering Information………………….……11 Repair Kit Information…….………………………..12 Statement of Warranty……………………………...13 Note: Blancett reserves the right to make any changes or improvements to the product described in this manual at any time without notice. -
Page 3: Introduction

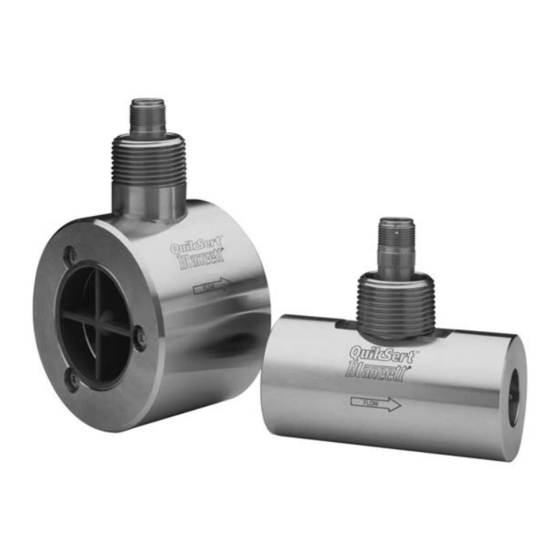

The QuikSert™ turbine flow meter is designed with wear resis- tant moving parts to provide trouble free operation and long ser- vice life. The Quiksert™ Meter Repair Kit is designed for easy field service of a damaged flow meter, rather than replacing the entire flow meter (see Appendix C for repair kit information). -
Page 4: Specifications
SPECIFICATIONS Temperature: -150 ºF to 350 ºF (-101 ºC to 177 ºC) Not to be used on temperatures below the freezing point of the liquid Accuracy: 1% of reading Repeatability: 0.1% Pressure: Varies based on class of ANSI flanges used for mounting. See table below Note: Pressure in excess of allowable rating may cause the housing to burst and cause serious personal injury. -
Page 5: Illustrations
ILLUSTRATIONS FIGURE 1 - Models B131-038 through B131-100 FIGURE 2 - Models B132-050 through B139-900... -
Page 6: Installation Instructions
INSTALLATION INSTRUCTIONS Before installation, the flow meter should be checked internally for foreign material and to be sure that the rotor spins freely. Fluid lines should also be cleared of all debris. The flow meter must be installed with the flow indication arrow, etched on the exterior of the meter body, pointing in the correct direction of flow. - Page 7 The preferred plumbing setup is one containing a by-pass line (Fig. 3) that allows meter inspection and repair without interrupt- ing flow. If a by-pass line is not utilized, it is important that all control valves be located down-stream of the flow meter (Fig. 4). Caution: Damage can be caused by striking an empty me- ter with high velocity flow stream.
- Page 8 FIGURE 3 - Meter installation utilizing a bypass line FIGURE 4 - Meter installation without utilizing a bypass line.
-
Page 9: Operational Startup
K-Factor. For maximum accuracy, the meter should be calibrated with the ac- tual fluid being measured. The QuikSert™ meter can be recali- brated by any conventional meter proving processes used to cali-... -
Page 10: Troubleshooting
APPENDIX A TROUBLE SHOOTING GUIDE Trouble Possible Cause Remedy • • Cavitation Increase back pressure • • Debris on rotor support Clean meter Meter indicates • • Build up of foreign ma- Clean meter higher than actual terial on meter bore rate •... -
Page 11: Part Numbering Information
APPENDIX B PART NUMBER INFORMATION... -
Page 12: Repair Kit Information
APPENDIX C REPAIR KIT INFORMATION... -
Page 13: Statement Of Warranty
Blancett’s obligation under this warranty is lim- ited to the repair of replacement of a defective product, at no charge to the end purchase, if the product is inspected by Blancett and found to be defective. Repair or replacement is at Blancett’s discretion. A... - Page 14 NOTES...
- Page 16 8635 Washington Avenue • Racine, Wisconsin 53406 Technical Toll-Free: 877.722.4631 Sales Toll-Free: 800.235.1638 Phone: 262.639.6770 • Fax: 262.639.2267 www.blancett.com Form: QuikSert Manual Revision 03/06...
