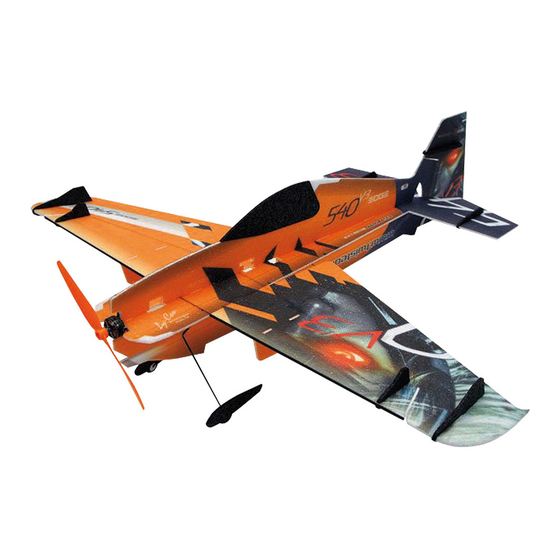

Pichler Edge V3 Indoor Manual

Edge V3 Indoor
840 mm 900 mm 150g
Kit Contents:
*Fuselage
*Wings
*Backbone
*Horizontal Stab
*Vertical Stab
*SFG's
*Landing gear
* Acessory Pack
*Canopy
Acessory Pack Contents:
1x Motor mount
1x Thrust vectoring motor mount
4x Ball Joint 3mm
2x Screw M2x8
1x Threaded end o 1,5
12x Stabs pushrod guides
6x lastic clevises P
1x Plastic frame
Plastic frame:
1. Aileron servo horn
2. Elevator, rudder horns
3. Aileron horns
4. Wing/torsion bracing fuselage root
5. Landing gear parts
You Will Also Need:
* sharp hobby knife
* screwdriver
* pliers
* round needle file
All manuals and user guides at all-guides.com
Li-pol 2s
300mAh
*Carbon reinforcements:
- 2x o 0,8x560,440 ... Rudder+Elevator pushrod
- 4x0,5x670 ... Wing spar
- 3x0,5x600 ... Wing reinforcement
- 4x o 1x250 ... Wing strut
- 4x o 0,8x330 ... Aileron strut
- 2x 2,5x1,5x200 ... Landing gear
- 2x o 0,8x440 ... Backbone reinforcement
- 5x o 0,8x500 ... Backbone reinforcement
- 3x0,2x585 ... Fuselage reinforcement
- 3x0,2x220 ... Rudder reinforcement
- 1,5x210 ... Thrust vectoring pushrod
- 3x0,5x330 ... Elevator reinforcement
1x eatshrink tube H
4x djustable link+quicklock washer A
Carbon 3x0,2x100+125 ... Rudder reinforcement
2x Carbon 3x0,2x140+165 ...
Carbon 2x0,2x165 ...
Elevator reinforcement
2x Carbon 3x0,5x100 ... Aileron Horn
Carbon 4x0,5x40 ... Landing gear
x Carbon o 1x200 ... Aileron pushrod
- 2
3
1
3
* CA medium+thin, CA kicker
* ruler
* sandpaper 100-500
* thread
