Summary of Contents for Pfeiffer Vacuum GAUGE/IO
- Page 1 SUPPLEMENTARY INFORMATION Translation of the Original GAUGE/IO...
- Page 2 These operating instructions describe all models and variants of your product. Note that your product may not be equipped with all features described in this document. Pfeiffer Vacuum constantly adapts its products to the latest state of the art without prior notice. Please take into account that online operating instructions can deviate from the printed operating instructions supplied with your product.
-
Page 3: Table Of Contents
Table of contents Table of contents About this manual Validity Applicable documents Product description Scope of delivery Gauge/IO option Gauge interface 2.3.1 Connecting gauges 2.3.2 Operating mode display via LED Operation with the OmniControl 3/10... -
Page 4: About This Manual
This document applies to units with the following part numbers: ● OmniControl ─ Pfeiffer Vacuum article number PE D2X XXX X ─ Pfeiffer Vacuum article number PE D4X XXX X ─ Pfeiffer Vacuum article number PE D5X XXX X ─... -
Page 5: Product Description

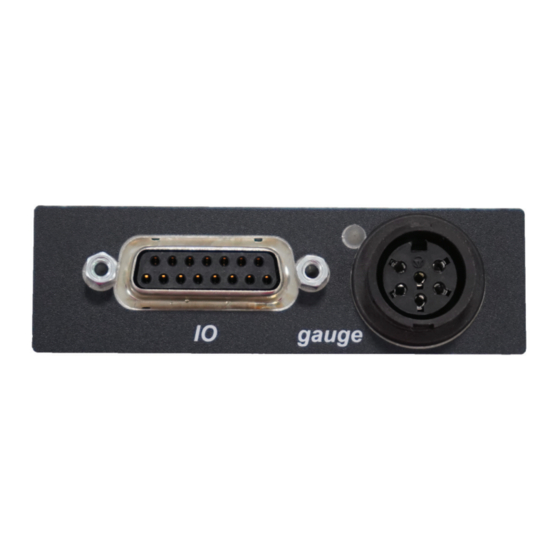

2.1 Scope of delivery ● Gauge/IO option, included in control unit's scope of delivery 2.2 Gauge/IO option The option designated “gauge/IO” is intended for the connection of a Pfeiffer Vacuum pressure gauge, as well as various digital and analog inputs, outputs, and relays. gauge Fig. -
Page 6: Gauge Interface
Product description 2.3 Gauge interface 2.3.1 Connecting gauges With a gauge/IO option, the connection socket designated “gauge” is used to connect a Pfeiffer Vacuum gauge. Gauge Display Selection re Rated input quired < 5 W TPR 280, TPR 281 TPR 28x ×... - Page 7 Product description LED status Display Meaning Green flashing With multi-sensor gauges only: Sensor for high pressure active, value OK Flashing green/yellow DeGas active Illuminated yellow Below/above measuring range Red illuminated Error Tbl. 4: Behavior and meaning of the LED of the gauge socket 7/10...
-
Page 8: Operation With The Omnicontrol
Operation with the OmniControl 3 Operation with the OmniControl WARNING Danger to life due to incorrect operation The OmniControl and its options are not designed as safety-related controllers. Manual misuse of the OmniControl or options, or automatically executed programming of the OmniControl’s auto control function may result in damage relating to materials, the environment, health, or life. - Page 9 Operation with the OmniControl ActiveLine pressure (hPa) 1.65 E 1 1 E -6 1 E 3 ActiveLine name gauge on PBR 260 1 E -6 1 E 3 2x ActiveLine Fig. 3: Example data view with gauge 1 Gauge pressure Name of gauge 2 Switch gauge on/off Configure data view...
