Installing the Balanced Body
with Riser Konnector

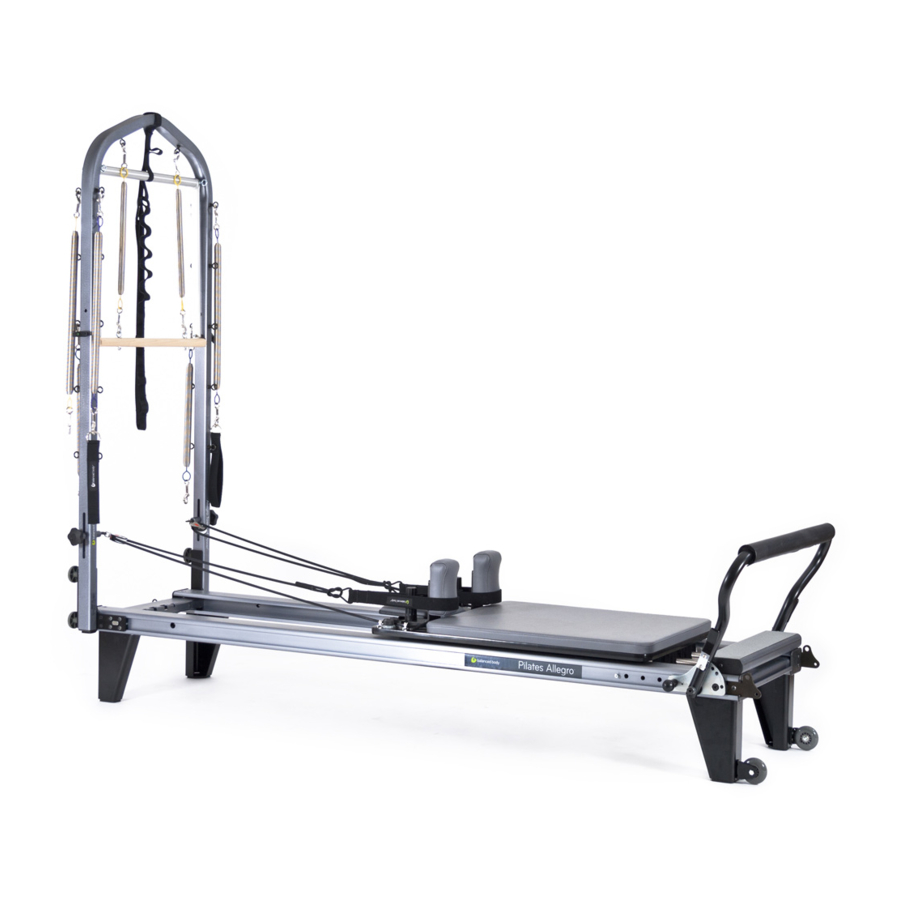

The Konnector is compatible with Balanced Body Allegro
Reformers with removable shoulder rests with Twist Lock posts
ONLY. If you aren't sure whether this system will work with your
equipment, please contact Balanced Body at 1-800-PILATES (US
and Canada), or +1-916-388-2838 (all other countries).
To view the installation podcast, please visit
www.pilates.com/instructions
PARTS LIST (INCLUDED):
ITEM
Konnector Rope
Tri-Loops (Grey)
Tri-Loops (Black) with pulleys
Pulley Block Riser Assembly
Lower Mount Allegro Assembly
Under Carriage Mount Assembly
Twist Lock Flanged Cap
1/4"-20x4.25 Socket Head Screws
1/4-20 Nylock nut
1/4" Flat Washer
5/32" Allen wrench
3/16" Allen wrench
7/16" Wrench
Spacer, Black, 1.5" Diameter**
**
"If your machine has legs disregard these spacers. If you
machine has rubber feet, unscrew each foot. Install the spacer
on top of the threaded rubber foot. Screw the foot/spacer
assembly back on machine so spacer is between the machine
and rubber foot.
1
2
™
WARNING: Using the existing shoulder posts with a Konnector
system can cause the loops to fall off the posts during use
which may cause injury.
REMOVE ROPES, POST AND SHOULDER BRACKETS
1. Remove the rope from the cam cleats, carriage and pulleys.
They are no longer needed.
2. Unthread each post from the shoulder rest bracket by hand
and completely remove them from the shoulder rest bracket.
PART NO.
QTY
You will no longer need them. Remove the shoulder rest
210-073
1
bracket from the carriage. Repeat on the other side.
210-061
2
210-060
2
3. Using the provided Allen key and 7/16" wrench, remove the
624-005
2
four nuts and washers from the bolts as shown in Figure A.
624-006
2
624-004
2
616-401
2
GEN9575
2
GEN9021
2
GEN9305
4
GEN9282
1
GEN9280
1
616-113
1
ALL0516
4
Figure A
3
4
Allegro 1B
®
WARNING: If you are only using some of the loops, the
unused loops MUST be stored on the flanged shoulder
posts.
Contact Us
1-800-PILATES | +1-916-388-2838
pilates.com | info@pilates.com
400-452 | 10.30.18
