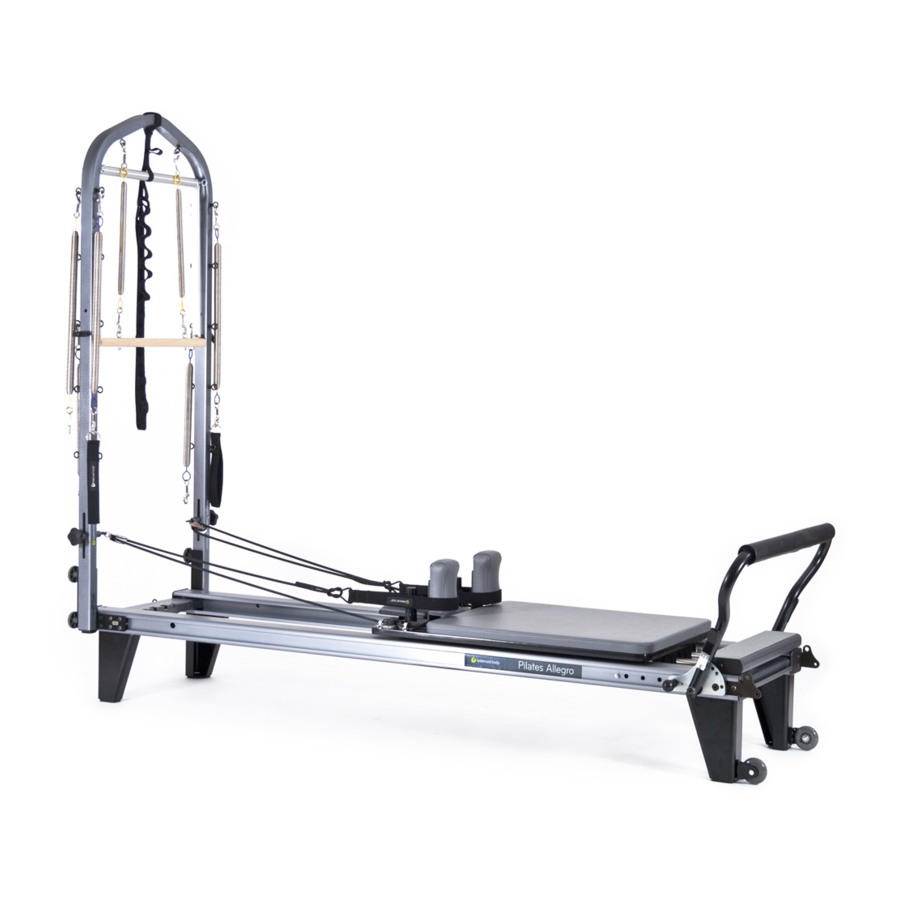

Balanced Body Allegro 1B Installing

Installing the Balanced Body
with Tower Konnector
The Konnector is compatible with Balanced Body Allegro
Reformers with removable shoulder rests with Twist Lock posts
ONLY. If you aren't sure whether this system will work with your
equipment, please contact Balanced Body at 1-800-PILATES (US
and Canada), or +1-916-388-2838 (all other countries).
To view the installation podcast, please visit
www.pilates.com/instructions
TOOLS TO MAKE IT EASIER (NOT INCLUDED):
» 7/16" wrench or socket (recommended)
PARTS LIST (INCLUDED):
ITEM
Konnector Rope
Tri-Loops (Grey)
Tri-Loops (Black) with pulleys
Pulley Block Tower Assembly
Lower Mount Allegro Assembly
Under Carriage Mount Assembly
Twist Lock Flanged Cap
Delrin Washer, Allegro Tower
1/4"-20x4.25 Socket Head Screws
1/4" Flat Washer
5/32" Allen wrench
3/16" Allen wrench
Double Open End Wrench
Spacer, Black ,1.5" Diammeter **
1 2
™
WARNING: Using the existing shoulder posts with a Konnector
system can cause the loops to fall off the posts during use
which may cause injury.
REMOVE ROPES, POST AND SHOULDER BRACKETS
1. Remove the rope from the cam cleats, carriage and pulleys.
They are no longer needed.
2. Unthread each post from the shoulder rest bracket by hand
and completely remove them from the shoulder rest bracket.
You will no longer need them. Remove the shoulder rest
bracket from the carriage. Repeat on the other side.
3. Using the provided Allen key and 7/16" wrench, remove the
PART NO. QTY
four nuts and washers from the bolts as shown in Figure A.
210-074 1
210-061 2
210-060 2
624-009 2
624-006 2
624-004 2
616-401 2
600-015 2
GEN9575 2
GEN9305 2
GEN9282 1
GEN9280 1
Figure A
616-113 1
**If your machine has legs disregard these spacers. If you
ALL0516 4
machine has rubber feet, unscrew each foot. Install the spacer on
top of the threaded rubber foot. Screw the foot/spacer assembly
back on machine so spacer is between the machine and rubber
foot.
3 4
WARNING: If you are only using some of the loops, the
unused loops MUST be stored on the flanged shoulder
posts.
