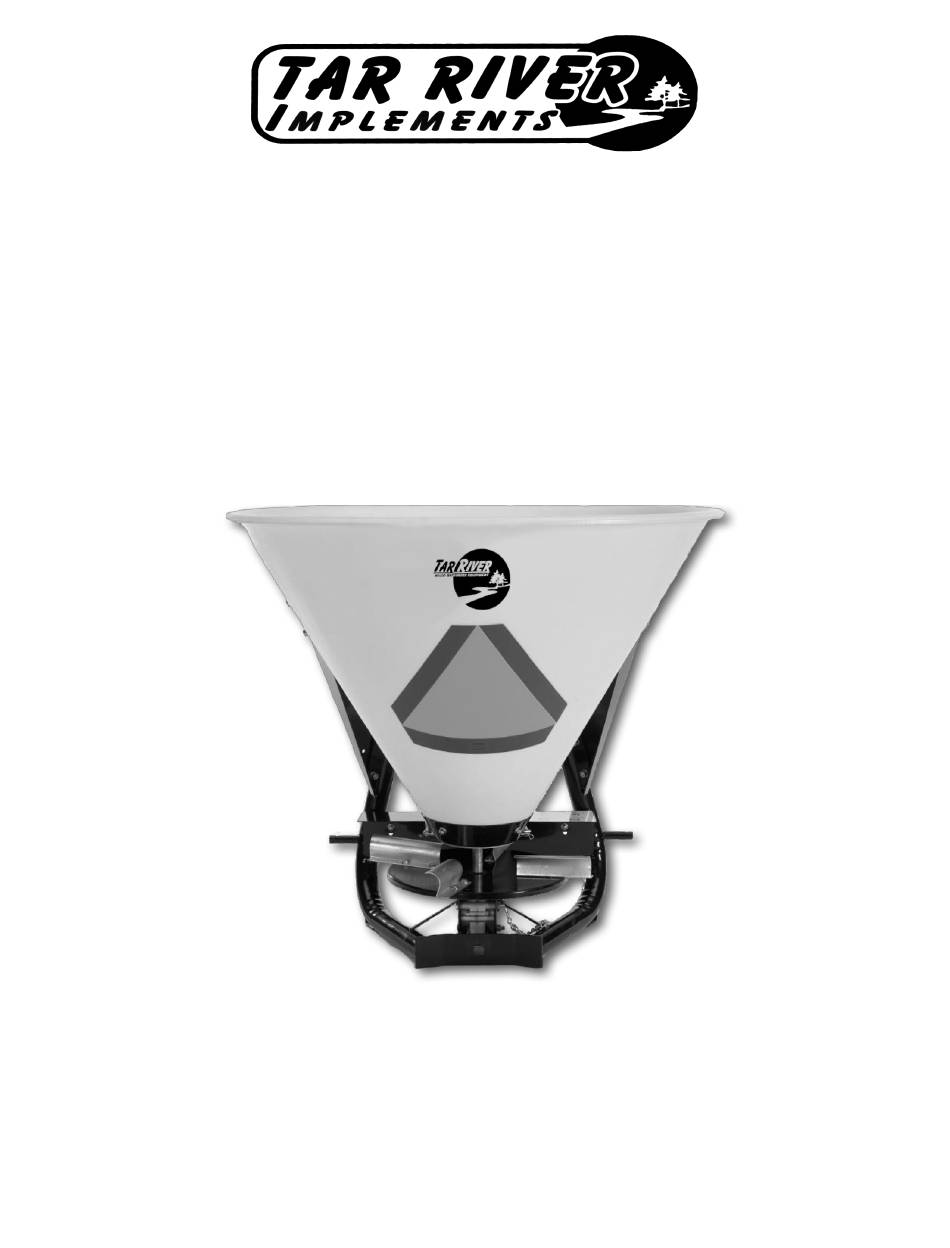

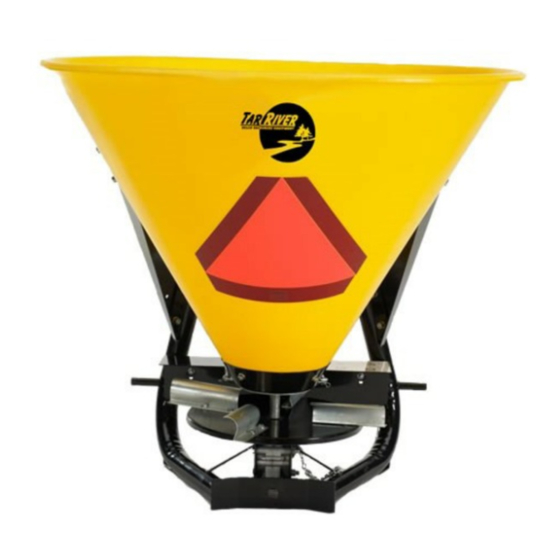

  • Page 1 Poly Fertilizer Spreaders SSP-250, SSP-400 Operator’s Manual Rel. 01/22...
  • Page 2 Spreader Poly SSP-250, SSP-400 Page left blank intentionally...
  • Page 3 Tar River service parts, and the necessary tools and equipment to handle all your needs. Use only genuine Tar River service parts. Substitute parts will void the warranty and may not meet standards required for safe and satisfactory operation.

  • Page 4: Table Of Contents

    Spreader Poly SSP-250, SSP-400 Table of Contents Introduction …………………………………………………………………………………………….. 5 Technical Specifications ……………………………………………………………………………….. 5 Safety …………………………………………………………………………………………………… 6 Safety Signal Words ……………………………………………………………………………………. 6 General Safety Guidelines ……………………………………………………………………………… 7 Safety Decal Care ………………………………………………………………………………………. 7 Before Operation ……………………………………………………………………………………….. 8 During Operation ……………………………………………………………………………………….. 9 Highway And Transport Operations ……………………………………………………………………...

  • Page 5: Introduction

    Introduction Introduction Thank you for purchasing your Poly Fertilizer Spreader. The SSP-250 & SSP-400 each have bottom opening gates to ensure constant and accurate material flow. The variable positioning gate openings and fin adjustments allow material to drop on different positions of the spinning disc therefore giving a left-right- center spread pattern.

  • Page 6: Safety

    Spreader Poly SSP-250, SSP-400 Important Safety Information Safety It is important that you read the entire manual and to become familiar with this product before you begin using it. This product is designed for certain applications only. The manufacturer cannot be responsible for issues arising from modification.

  • Page 7: General Safety Guidelines

    Spreader Poly SSP-250, SSP-400 Important Safety Information General Safety Guidelines Safety of the operator is one of the main concerns in designing and developing a new piece of equipment. Designers and manufacturers build in as many safety features as possible. However, every year many accidents occur which could have been avoided by a few seconds of thought and a more careful approach to handling equipment.

  • Page 8: Before Operation

    Spreader Poly SSP-250, SSP-400 Important Safety Information How to install Safety Signs: Be sure that the installation area is clean and dry. • Decide on the exact position before you remove the backing paper. • Remove the smallest portion of the split backing paper.

  • Page 9: During Operation

    Spreader Poly SSP-250, SSP-400 Important Safety Information During Operation Children should not be allowed on the machine. • Clear the area of small children and bystanders before moving the machine. • If using a towing unit, securely attach feeder by using a hardened 3/4” pin, a metal retainer, and safety •...

  • Page 10: Highway And Transport Operations

    Spreader Poly SSP-250, SSP-400 Important Safety Information Highway and Transport Operations Adopt safe driving practices. • Keep the brake pedals latched together at all times. Never use independent braking with machine in tow • as loss of control and/or upset of unit can result.
  • Page 11 Spreader Poly SSP-250, SSP-400 Important Safety Information Highway and Transport Operations Maneuver the tractor or towing vehicle at safe speeds. • Avoid overhead wires or other obstacles. Contact with overhead lines could cause serious injury or death. • Avoid loose fill, rocks and holes, they can be dangerous for equipment operation or movement.

  • Page 12: Assembly

    Spreader Poly SSP-250, SSP-400 Assembly Hopper 1. Secure the spreader hopper support pan to the bottom of the hopper with the 4 carriage head bolts and nuts. 2. With the hopper opening facing up, insert the Retainer Bushing through the center hole of the hop- per.
  • Page 13 Spreader Poly SSP-250, SSP-400 Assembly Frame 1. Install the spin disc on the gearbox output shaft. Secure it in place with the 8mm roll pin in the lower most hole, which is closest to the gearbox housing. 2. Install the deflector shield on the inside of the frame. Bolt it to the tabs welded in front of the lower hitch pins on the frame.

  • Page 14: Operating Instructions

    Spreader Poly SSP-250, SSP-400 Operating Instructions Attaching to the tractor Back the tractor to the spreader carefully. Turn off the tractor and set the park brake. Be sure there is nothing between the tractor and the spreader including people or animals. There is a possibility of serious injury or death.
  • Page 15 Spreader Poly SSP-250, SSP-400 Operation Spreading Operation Consider the following factors when determining material quantity distributed per acre: 1. Operating speed is determined by ground conditions. Faster speeds can be obtained on dry, even, cleared land. Slower speeds are required for uneven ground. Making a practice run will help determine the correct setting for spreading as conditions vary.

  • Page 16: Maintenance

    Spreader Poly SSP-250, SSP-400 Maintenance Danger: Never attempt to perform maintenance on the machine without first stop- ping the towing vehicle’s engine, setting the parking brake and removing the key from the ignition. Always wear the proper protection (PPE) when performing ser- vice.

  • Page 17: Spreading Charts

    Spreader Poly SSP-250, SSP-400 Spreading Chart For Seed Lever Position Spread width Work Type of fertilizer speed mph 0.25 Alfalfa & Clover Barley 20.5 16.5 Bluegrass & Bermuda Grass 13.5 Brome Grass Fescue & Ryegrass Lespedeza Oats Orchard Grass NOTE: Spread widths of fertilizer will vary according to type.
  • Page 18 Spreader Poly SSP-250, SSP-400 Spreading Chart For Seed (continued) Lever Position Spread width Work Type of fertilizer speed mph 0.25 Rice Sudan Grass Soybeans Wheat NOTE: Spread widths of fertilizer will vary according to type. Always check actual spread width and application rate.
  • Page 19 Spreader Poly SSP-250, SSP-400 SPREADING CHART FOR FERTILIZER Lever Position PTO Speed Spread Work speed Type of fertilizer (RPM) width ft. Coarse Grain Fertilizers Medium Grain Fertiliz- Fine Grain Fertilizers 1052 1242 Ammonium 1004 1171 Urea (Carbamide) NOTE: Spread widths of fertilizer will vary according to type.
  • Page 20 Spreader Poly SSP-250, SSP-400 Operation SPREADING CHART FOR SEED Pounds per acre (approximate) at control level setting indicated at control level Spread Tractor setting indicated Material width in speed feet (MPH) 0.25 Alfalfa & Clover Barley 20.5 16.5 Bluegrass & Bermuda Grass 13.5...

  • Page 21: Torque Specifications

    Spreader Poly SSP-250, SSP-400 Notes: This chart is an approximate estimate of torque values. Always tighten hardware to these values unless a different torque value or tightening procedure is listed for a specific application. Fasteners must always be replaced with the same grade as specified in the manual.
  • Page 22 Spreader Poly SSP-250, SSP-400 Page left blank intentionally...

  • Page 23: Parts Breakdown

    Spreader Poly SSP-250, SSP-400 Poly Fertilizer Spreaders SSP-250, SSP-400 Parts Manual...
  • Page 24 Spreader Poly SSP-250, SSP-400 Hopper Assembly...
  • Page 25 Spreader Poly SSP-250, SSP-400 Hopper Assembly Item Part # Description Qty. 5SB16153 Base Assembly BM101520 Bolt- M10 x 1.5 x 20 Zinc FW10 Flat Washer- M10, Zinc 5SB12048 Cotter Pin 5SB19287 Tie Rod 5SB19286 Lever 5SB19306 Spreader Spring BM101570 Bolt- M10 x 1.5 x 70 Zinc...
  • Page 26 Spreader Poly SSP-250, SSP-400 Hopper Assembly...
  • Page 27 Spreader Poly SSP-250, SSP-400 Hopper Assembly Item Part # Description Qty. 5SB06094 Thumb Screw BM1217530 Bolt- M12 x 1.75 x 30 Zinc 5SB01429 Gearbox BM1015110 Hex Bolt- M10 x 1.5 x 110 5SB3000 PTO Assembly (complete) 5SB07079A Flat Washer - (For 5SB04131A Bushing)
  • Page 28 Spreader Poly SSP-250, SSP-400 PTO Shaft Item Part # Description Qty. 5SB3001 Yoke 5SB3002 Inner Yoke complete 5SB3003 Outer Yoke complete 5SB3004 Inner PTO Guard Complete 5SB3005 Outer PTO Guard Complete DP1076-20 Cross & Bearing 5SB3007 Safety Chain 5SB3000 PTO Shaft Complete...

  • Page 29: Options

    Spreader Poly SSP-250, SSP-400 Optional Wheel Agitator Item Part # Description Qty. RP04-000-06-00 Washer 14 x 28 RP04-000-07-00 Washer 8 x 17 RP04-000-08-00 Hex screw M10 x 50 8.8 RP04-000-19-00 Articulated stirrer wheel RP04-000-20-00 Cotter pin D4 RP04-000-22-00 Powder articulated stirrer beam...

  • Page 30: Warranty

    Spreader Poly SSP-250, SSP-400 Warranty LIMITED WARRANTY Belco Resources Equipment warrants to the original purchaser of any new piece of machinery from Belco Resources Equipment, purchased from an authorized Belco Resources Equipment dealer, that the equipment be free from defects in material and workmanship for a period of one (1) year for non-commercial, state, and municipalities’...
  • Page 31 Spreader Poly SSP-250, SSP-400 Page left blank intentionally...
  • Page 32 401 Jeffreys Road Tel: 252-822-7140 Rocky Mount, NC 27804 Fax: 252-787-5855 www.tarrivermfg.com Sales@tarrivermfg.com...

This manual is also suitable for:

Ssp-400
