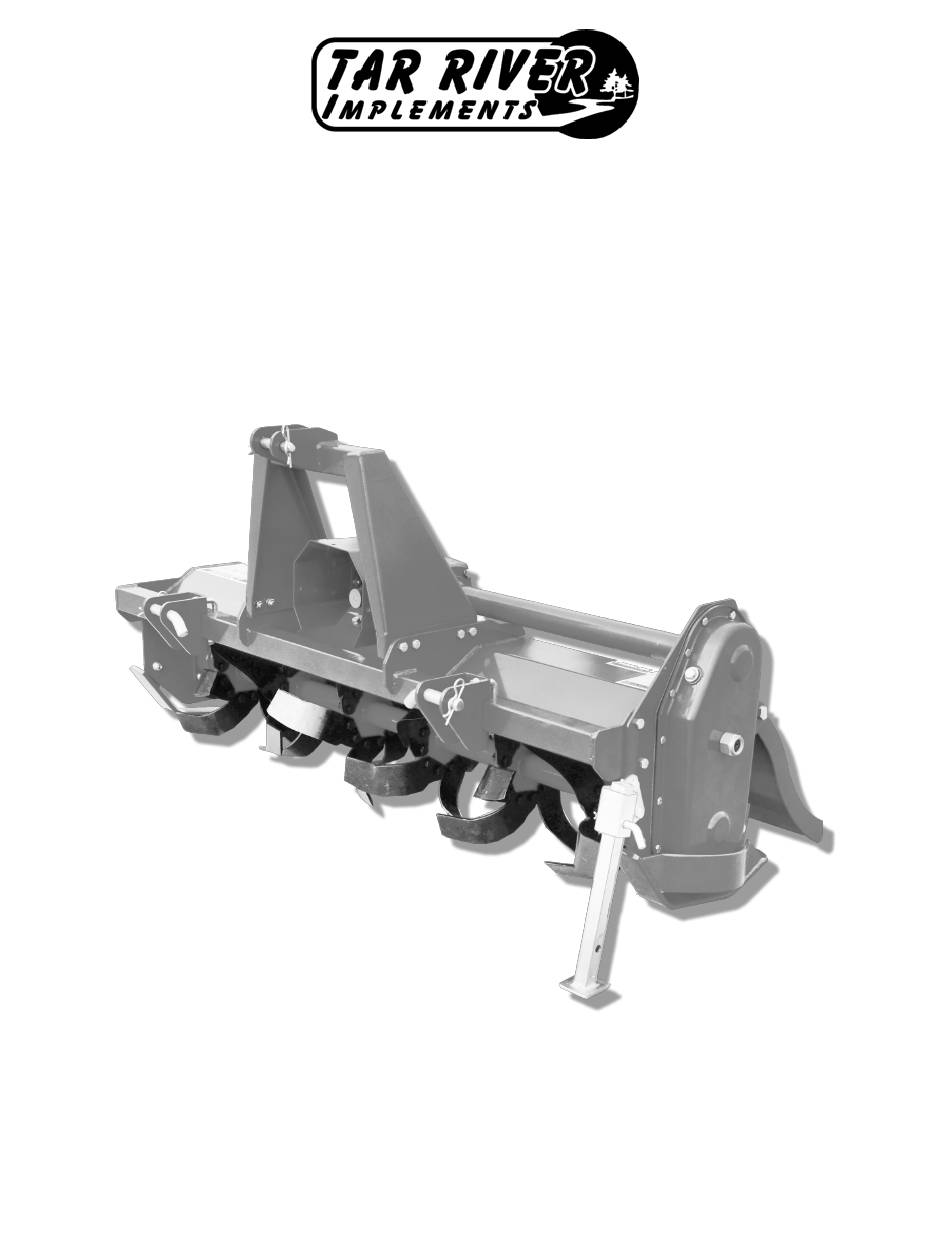

Rotary Tiller
TXG, YCT & YCT-R Series
Operator's Manual
Rev. 11/21

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TXG Series and is the answer not in the manual?

Questions and answers

Jerry Haas
May 17, 2025

need to replace PTO drive shaft, how do I install the new shaft to the tiller. Got a different tractor and the shaft is too short. Do I just remove the snap rings to the U joint to fit the shaft on?

0
1 comments:
Mr. Anderson
May 23, 2025

To install a new PTO drive shaft on a Tar River TXG Series tiller, follow these steps:

1. Park the tiller on a level surface.
2. Back the tractor (Category 1) so the lift arms align with the tiller’s lower hitch points. Ensure the area is clear.
3. Slide and adjust the lower hitch blocks if needed for larger tractors.
4. Secure each lift arm using a 7/16” lynch pin or similar fastener.
5. Connect the PTO driveline to the tractor’s PTO output shaft and secure it.
6. Connect the tractor’s top link to the upper hitch point of the tiller.
7. Start the tractor and slowly raise the tiller.
8. Check for interference with the drawbar and ensure the PTO driveline does not bottom out when fully raised.
9. If it bottoms out, shorten the PTO driveline as needed.
10. Ensure at least 1/3 overlap of each driveline profile in working position.

This answer is automatically generated

0

Related Manuals for Tar River TXG Series

Summary of Contents for Tar River TXG Series

  • Page 1 Rotary Tiller TXG, YCT & YCT-R Series Operator’s Manual Rev. 11/21...
  • Page 2 Rotary Tiller TXG, YCT & YCT-R Series Page left blank intentionally...
  • Page 3 Rotary Tiller TXG, YCT & YCT-R Series TO THE DEALER: Assembly and proper installation of this product is the responsibility of the Tar River dealer. Read manual in- structions and safety rules. Make sure all items on the Dealer’s Pre-Delivery and Delivery Check Lists in the Owner’s/Operator’s Manual are completed before releasing equipment to the owner.

  • Page 4: Table Of Contents

    Rotary Tiller TXG, YCT & YCT-R Series Table of Contents Introduction …………………………………………………………………………………………….. 5 Technical Specifications ……………………………………………………………………………….. 5 Safety …………………………………………………………………………………………………… 6 Safety Signal Words ……………………………………………………………………………………. 6 General Safety Guidelines ……………………………………………………………………………… 7 Safety Decal Care ………………………………………………………………………………………. 7 Before Operation ……………………………………………………………………………………….. 8 During Operation ……………………………………………………………………………………….. 9 Highway And Transport Operations ……………………………………………………………………...

  • Page 5: Introduction

    Rotary Tiller TXG, YCT & YCT-R Series Introduction Thank you for purchasing your Tar River Rotary Tiller. The TXG Series is specifically designed and engi- neered for compact tractors in the 15-30 horse power range. The YCT & YCT-R Series is specifically de- signed to tractors in the 30-60 horse power range.

  • Page 6: Safety

    Rotary Tiller TXG, YCT & YCT-R Series Important Safety Information Safety It is important that you read the entire manual and to become familiar with this product before you begin using it. This product is designed for certain applications only. The manufacturer cannot be responsible for issues arising from modification.

  • Page 7: General Safety Guidelines

    Rotary Tiller TXG, YCT & YCT-R Series Important Safety Information General Safety Guidelines Safety of the operator is one of the main concerns in designing and developing a new piece of equipment. De- signers and manufacturers build in as many safety features as possible. However, every year many accidents occur which could have been avoided by a few seconds of thought and a more careful approach to handling equipment.

  • Page 8: Before Operation

    Rotary Tiller TXG, YCT & YCT-R Series Important Safety Information How to install Safety Signs: Be sure that the installation area is clean and dry. • Decide on the exact position before you remove the backing paper. • Remove the smallest portion of the split backing paper. •...

  • Page 9: During Operation

    Rotary Tiller TXG, YCT & YCT-R Series Important Safety Information During Operation Children should not be allowed on the product. • Clear the area of small children and bystanders before moving the feeder. • If using a towing unit, securely attach feeder by using a hardened 3/4” pin, a metal retainer, and safety •...

  • Page 10: Highway And Transport Operations

    Rotary Tiller TXG, YCT & YCT-R Series Important Safety Information Highway and Transport Operations Adopt safe driving practices. • Keep the brake pedals latched together at all times. Never use independent braking with machine in tow • as loss of control and/or upset of unit can result. Always drive at a safe speed relative to local conditions and ensure that your speed is low enough for an •...
  • Page 11 Rotary Tiller TXG, YCT & YCT-R Series Important Safety Information Highway and Transport Operations Maneuver the tractor or towing vehicle at safe speeds. • Avoid overhead wires or other obstacles. Contact with overhead lines could cause serious injury or • death.

  • Page 12: Operating Instructions

    Rotary Tiller TXG, YCT & YCT-R Series Operating Instructions Before attaching the rotary tiller to the tractor, check the unit to ensure there is oil in the top and side gearbox. See Maintenance section for lubricant specifications. Attaching to the tractor 1.
  • Page 13 Rotary Tiller TXG, YCT & YCT-R Series Operating Instructions Caution: Slip Clutches may become hot! DO NOT TOUCH! Keep the slip clutch area clear of any material that may catch fire. Slip clutches have adjustable torque settings. The torque setting varies with the different compression of each spring.
  • Page 14 Rotary Tiller TXG, YCT & YCT-R Series Operating Instructions Working Depth Adjustment The working depth is controlled by raising or lowering the side skids. If the skids are raised, the working depth increases. By lowering the skids, the tilling depth with decrease. Tailgate adjustment The tailgate can be adjusted to help smooth and compact the tilled ground.

  • Page 15: Maintenance

    Rotary Tiller TXG, YCT & YCT-R Series Maintenance Performing Maintenance Good maintenance is your responsibility. Poor maintenance is an invitation to trouble. • Make sure there is plenty of ventilation. Never operate the engine of the towing vehi- • cle in a closed building. The exhaust fumes may cause asphyxiation. •...
  • Page 16 Rotary Tiller TXG, YCT & YCT-R Series Notes: This chart is an approximate estimate of torque values. Always tighten hardware to these values unless a different torque value or tightening procedure is listed for a specific application. Fasteners must always be replaced with the same grade as specified in the manual. Always use the proper tool for tightening hardware: SAE for SAE hardware and Metric for Metric hardware.

  • Page 17: Parts Breakdown

    Rotary Tiller TXG, YCT & YCT-R Series Page left blank intentionally...
  • Page 18 Rotary Tiller TXG, YCT & YCT-R Series Page left blank intentionally...
  • Page 19 Rotary Tiller TXG, YCT & YCT-R Series Parts Manual Rev. 11/21...
  • Page 20 Rotary Tiller TXG, YCT & YCT-R Series TXG Series Rotary Tiller...
  • Page 21 Rotary Tiller TXG, YCT & YCT-R Series TXG Series Rotary Tiller Item Part # Description Qty. “R” Clip M4 YT1066010204 Hitch Pin TX0202 Lower Hitch Bracket TX0203 “U” Bolt, Lower Hitch Bracket NM12175 Hex Nut– M12 x 1.75 BM101530 Bolt- M10 x 1.5 x 30 NM1015 Nut M10-1.5...
  • Page 22 Rotary Tiller TXG, YCT & YCT-R Series TXG Series Rotary Tiller...
  • Page 23 Rotary Tiller TXG, YCT & YCT-R Series TXG Series Rotary Tiller Item Part # Description Qty. TX0310 Lifting Hook Oil plug Vented - M16-1.5 OP1615V BM101525 Bolt– M10 x 1.5 x 25 YT1066050200 Stand Bracket R-Clip– M3 Pin - Stand...
  • Page 24 Rotary Tiller TXG, YCT & YCT-R Series TXG Series Rotary Tiller...
  • Page 25 Rotary Tiller TXG, YCT & YCT-R Series TXG Series Rotary Tiller Item Part # Description Qty. TX0602 Skid Weldment - Right TX02-40 Frame Weldment TXG-040 TX02-50 Frame Weldment TXG-050 TX02-60 Frame Weldment TXG-060 BM162090 Bolt- M16 x 2.0 x 90 NM162 Nut- M16 x 2.0...
  • Page 26 Rotary Tiller TXG, YCT & YCT-R Series PTO Shaft - TXG Item Part # Description Qty. DP1075-40 PTO Yoke - Series 40 DP1076-40 Cross and Bearings - Series 40 DP1079-40 Female Yoke and Tube (tractor end) - Series 40 5SB3007 Safety chain DP1078-40 Male Yoke and Tube (implement end) - Series 40...

  • Page 27: Warranty

    Rotary Tiller TXG, YCT & YCT-R Series Slip clutch complete 150mm clutch - TXG Qty. Item Description DP1097-30 DP1083-150 180-510-30 DP1085-30 DP1090-30 DP1091-30 LNM1015 FW10 1215012-30 LNM12175 FW12 BM1217565 DP1098-30 Slip clutch complete 150mm clutch...
  • Page 28 Rotary Tiller TXG, YCT & YCT-R Series YCT Series Rotary Tiller...
  • Page 29 Rotary Tiller TXG, YCT & YCT-R Series YCT Series Rotary Tiller Item Part # Description Qty.
  • Page 30 Rotary Tiller TXG, YCT & YCT-R Series YCT Series Rotary Tiller...
  • Page 31 Rotary Tiller TXG, YCT & YCT-R Series YCT Series Rotary Tiller Item Part # Description Qty. OP1615...
  • Page 32 Rotary Tiller TXG, YCT & YCT-R Series YCT Series Rotary Tiller...
  • Page 33 Rotary Tiller TXG, YCT & YCT-R Series YCT Series Rotary Tiller Item Part # Description Qty. SNM3515 Nut- M35 x 1.5 SLW35 Special Lock Washer - M35 YT10660804 Gear - Rotor YT10660806 Shim– M55 x 40 x 2 SRI-100 Snap Ring - Internal M100 YT10660808 Gasket - Drive Rotor M168 x 115 x .05 B6309000...
  • Page 34 Rotary Tiller TXG, YCT & YCT-R Series YCT Series Rotary Tiller...
  • Page 35 Rotary Tiller TXG, YCT & YCT-R Series YCT Series Rotary Tiller Item Part # Description Qty. YT10660501 Pin - Stand R-Clip- M3 YT1066050200 Stand Bracket YT1066050100 Stand Leg YT10660600L Skid Weldment - Left YT10660600R Skid Weldment - Right BM162090 Bolt- M16 x 2.0 x 90 YT1060070100 Tailgate YCT-060 YT1066070100...
  • Page 36 Rotary Tiller TXG, YCT & YCT-R Series YTC-R60, YTC-R74 Front Shielding Item Part # Description Qty. YT10661075025 “U” Bolt M10 x 1.5 w/nuts YT106075025R Panel-60” Right YT107475025R Panel-74” Right BM101525 Bolt M10 x 25 NM1015 Nut M10 x 1.5 LW10 Lock Washer 10mm YT106075025M Panel-60”...
  • Page 37 Rotary Tiller TXG, YCT & YCT-R Series PTO Shaft - YCT Item Part # Description Qty. DP1075-40 PTO Yoke - Series 40 DP1076-40 Cross and Bearings - Series 40 DP1079-40 Female Yoke and Tube (tractor end) - Series 40 5SB3007 Safety chain DP1078-40 Male Yoke and Tube (implement end) - Series 40...
  • Page 38 Rotary Tiller TXG, YCT & YCT-R Series Warranty LIMITED WARRANTY Belco Resources Equipment warrants to the original purchaser of any new piece of machinery from Belco Re- sources Equipment, purchased from an authorized Belco Resources Equipment dealer, that the equipment be free from defects in material and workmanship for a period of one (1) year for non-commercial, state, and mu- nicipalities’...
  • Page 39 Rotary Tiller TXG, YCT & YCT-R Series Page left blank intentionally...
  • Page 40 Rotary Tiller TXG, YCT & YCT-R Series 401 Jeffreys Road Tel: 252-822-7140 Rocky Mount, NC 27804 Fax: 252-787-5855 www.tarrivermfg.com Sales@tarrivermfg.com...
