Summary of Contents for Tar River SSC-100

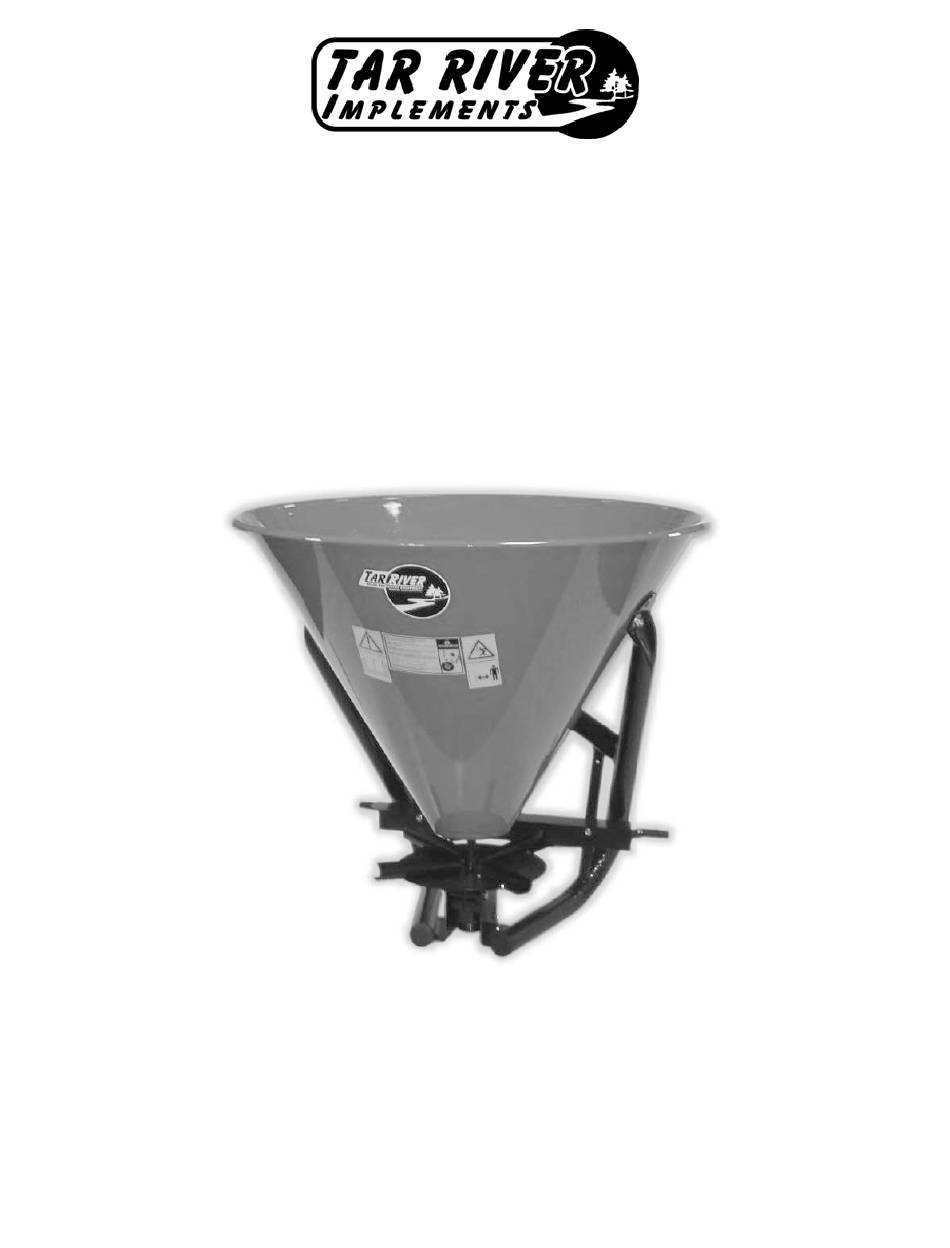

- Page 1 Spin Fertilizer Spreader SSC-SSS-SP Operator’s Manual Rev. 12/21...
- Page 2 Fertilizer Spreader SSC-SSS-SP Series Page left blank intentionally...
- Page 3 Fertilizer Spreader SSC-SSS-SP Series TO THE DEALER: Assembly and proper installation of this product is the responsibility of the Tar River dealer. Read manual in- structions and safety rules. Make sure all items on the Dealer’s Pre-Delivery and Delivery Check Lists in the Owner’s/Operator’s Manual are completed before releasing equipment to the owner.
-
Page 4: Table Of Contents
Fertilizer Spreader SSC-SSS-SP Series Table of Contents Introduction …………………………………………………………………………………………….. 5 Technical Specifications ……………………………………………………………………………….. 5 Safety …………………………………………………………………………………………………… 6 Safety Signal Words ……………………………………………………………………………………. 6 General Safety Guidelines ……………………………………………………………………………… 7 Safety Decal Care ………………………………………………………………………………………. 7-9 Before Operation ……………………………………………………………………………………….. 10 During Operation ……………………………………………………………………………………….. 11 Highway And Transport Operations ……………………………………………………………………... -
Page 5: Introduction

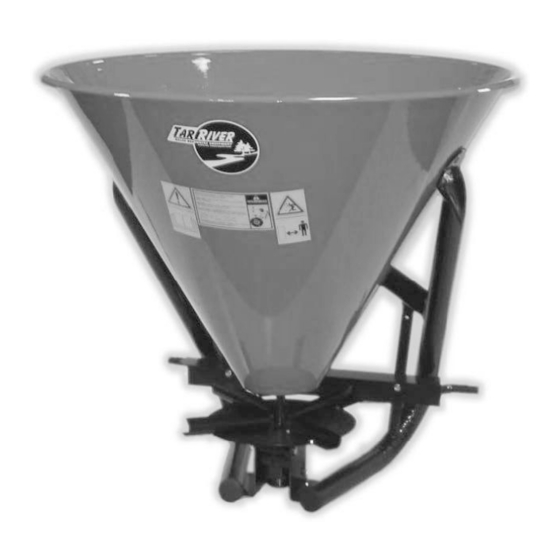

Fertilizer Spreader SSC-SSS-SP Series Introduction Thank you for purchasing your Tar River Fertilizer Spreader. The SSC series is built especially for Sub- Compact tractors that cannot attach to regular-sized spreaders. The SSS series are painted with special heat- treated paint that resists corrosion. The SPP series features a Poly Hopper and stainless steel bottom openers and spreading fins. -
Page 6: Safety
Fertilizer Spreader SSC-SSS-SP Series Important Safety Information Safety It is important that you read the entire manual and to become familiar with this product before you begin using it. This product is designed for certain applications only. The manufacturer cannot be responsible for issues arising from modification. -
Page 7: General Safety Guidelines
Fertilizer Spreader SSC-SSS-SP Series Important Safety Information General Safety Guidelines Safety of the operator is one of the main concerns in designing and developing a new piece of equipment. De- signers and manufacturers build in as many safety features as possible. However, every year many accidents occur which could have been avoided by a few seconds of thought and a more careful approach to handling equipment. - Page 8 Fertilizer Spreader SSC-SSS-SP Series Important Safety Information How to install Safety Signs: Be sure that the installation area is clean and dry. • Decide on the exact position before you remove the backing paper. • Remove the smallest portion of the split backing paper. •...
- Page 9 Fertilizer Spreader SSC-SSS-SP Series Important Safety Information Safety Decals If “Safety” Decals are damaged or unreadable, replace immediately.
-
Page 10: Before Operation
Fertilizer Spreader SSC-SSS-SP Series Important Safety Information Before Operation Carefully study and understand this manual. • Do not wear loose-fitting clothing, which may catch in moving parts. • Always wear protective clothing and substantial shoes. • Assure that all tires are inflated evenly. •... -
Page 11: During Operation
Fertilizer Spreader SSC-SSS-SP Series Important Safety Information During Operation Children should not be allowed on the product. • Clear the area of small children and bystanders before moving the feeder. • If using a towing unit, securely attach feeder by using a hardened 3/4” pin, a metal retainer, and safety •... -
Page 12: Highway And Transport Operations
Fertilizer Spreader SSC-SSS-SP Series Important Safety Information Highway and Transport Operations Adopt safe driving practices. • Keep the brake pedals latched together at all times. Never use independent braking with machine in tow • as loss of control and/or upset of unit can result. Always drive at a safe speed relative to local conditions and ensure that your speed is low enough for an •... - Page 13 Fertilizer Spreader SSC-SSS-SP Series Important Safety Information Highway and Transport Operations Maneuver the tractor or towing vehicle at safe speeds. • Avoid overhead wires or other obstacles. Contact with overhead lines could cause serious injury or death. • Avoid loose fill, rocks and holes, they can be dangerous for equipment operation or movement. •...
-
Page 14: Swath Spreading Chart
Fertilizer Spreader SSC-SSS-SP Series Swath Spreading Chart Model SSS-100 & SSC-100 Swath Spreading Patterns (lbs./acre) Spreading width 20 feet Lever Position 2.5 mph 3.75 mph 5 mph Model SSS & SP Swath Spreading Patterns (lbs./acre) Spreading width 46 feet Lever Position 2.5 mph... -
Page 15: Operating Instructions
Operating Instructions Operation It is important that each operator of the Tar River Fertilizer Spreader read and understand the operational pro- cedures and all related safety precautions outlined in this section. The following checklist is provided for the operator. It is important for both the personal safety and maintaining good mechanical condition that this check list is followed. - Page 16 Fertilizer Spreader SSC-SSS-SP Series Operating Instructions Attaching to the tractor Back the tractor to the spreader carefully. Turn off the tractor and set the park brake. Be sure there is nothing between the tractor and the spreader including people or animals. There is a possibility of serious injury or death.
- Page 17 2. Type or material distributed, density, moisture content, etc. 3. Width of spreading area. 4. Spreader lever position. Spreading Adjustment SSC-100, SSC-150 Spreading can be adjusted 2 ways. 1. Spread pattern. 2. Amount of material distributed.
- Page 18 Fertilizer Spreader SSC-SSS-SP Series Operating Instructions Loosen the Adjustment Knob (See Fig. 3) and slide the Adjustment Handle to the desired position and re-tighten. In the Center position, the spread pattern is approximately 180 degrees. In the LH most position, the spread pattern will be mostly 90 degrees to the right side of the spreader. In the RH most position, the spread pattern will be mostly 90 degrees to the left side of the spreader.
- Page 19 Fertilizer Spreader SSC-SSS-SP Series Operating Instructions Spreading Adjustment SSS-300, SSS-400, SSS-500, SP500 Spreading can be adjusted 2 ways. 1. Spread pattern. 2. Amount of material distributed. Spread Pattern The spread pattern is adjusted by the changing the position of the shutters. Both shutters open: material will spread 180 degrees behind the spreader.
- Page 20 Fertilizer Spreader SSC-SSS-SP Series Operating Instructions Spread Pattern (Continued) Spread pattern can further be regulated by adjusting the Spreader Wings located on the Spreader Disc, (See Fig. 5) Loosen the bolt “A” (do not remove) and remove Bolt “B”. Rotate the Spreader Wings Clockwise to spread material more to the left.
-
Page 21: Maintenance
Fertilizer Spreader SSC-SSS-SP Series Maintenance Danger: Never attempt to perform maintenance on the machine without first stop- ping the towing vehicle’s engine, setting the parking brake and removing the key from the ignition. Always wear the proper protection (PPE) when performing ser- vice. - Page 22 Fertilizer Spreader SSC-SSS-SP Series Maintenance After operating spreader: Wash the spreader thoroughly. This is extremely important especially after spreading corrosive materials • such as fertilizer or salt. These materials are highly corrosive and will eat away at metal parts. Dry the machine after washing to remove any remaining water. Moisture will cause rust to form and cor- •...
-
Page 23: Torque Chart
Fertilizer Spreader SSC-SSS-SP Series Notes: This chart is an approximate estimate of torque values. Always tighten hardware to these values unless a different torque value or tightening procedure is listed for a specific application. Fasteners must always be replaced with the same grade as specified in the manual. Always use the proper tool for tightening hardware: SAE for SAE hardware and Metric for Metric hardware. - Page 24 Fertilizer Spreader SSC-SSS-SP Series Page left blank intentionally...
- Page 25 Spin Fertilizer Spreader SSC-SSS-SP Parts Manual Rev. 12/21...
-
Page 26: Parts Breakdown
Fertilizer Spreader SSC-SSS-SP Series SSC-100, SSC-150 Spreader Assembly... - Page 27 Fertilizer Spreader SSC-SSS-SP Series SSC-100, SSC-150 Spreader Assembly Item Part # Description Qty. RP03-150-01/00 Frame RP03-100-02/00 Hopper SSC-100 RP03-149-02/00 Hopper SCC-150 NM08125 Nut HH M8-1.25 FW08 Washer flat M8 CBM081225 Carriage Bolt M8-1.25 x 25 RP02-000-34/00 Shutter Regulation Knob RP02-000-19/00...
- Page 28 Fertilizer Spreader SSC-SSS-SP Series SSS-300, SSS-400, SSS-500 SP500 Spreader Assembly ARS-12 Optional Roller Wheel Agitator...
- Page 29 Fertilizer Spreader SSC-SSS-SP Series SSS-300, SSS-400, SSS-500 SP500 Spreader Assembly Item Part # Description Qty. NM12175 Nut M12-1.75 CBM1217530 Carriage bolt M12-1.75x30 BM0812525 Bolt M81.25x25 LW08 Lock washer M8 NM08125 Nut M8-1.25 RP04-000-06/00 Washer 14x28 RP04-000-07/00 Washer 8x17 BM1012550 Bolt M10-1.50x50 RP04-000-09/00 Lever RP04-002-10/01...
- Page 30 Fertilizer Spreader SSC-SSS-SP Series SSS-300, SSS-400, SSS-500 SP500 Spreader Assembly ARS-12 Optional Roller Wheel Agitator...
- Page 31 Fertilizer Spreader SSC-SSS-SP Series SSS-300, SSS-400, SSS-500 SP500 Spreader Assembly Item Part # Description Qty. RP04-000-36/00 Spring pin 5x40 RP04-000-37/00 Spring pin 8x40 LNM08125 Self-locking nut M8-1.25 RP04-000-3900 Agitator BM0812540 Bolt M8-1.25x40 8.8 BM0612515 Bolt M6-1.25x15 RP04-000-42/00 Spreader wing RP04-000-42/10 Spreader wing \ stainless steal RP04-000-43/00 Spreader disc...
-
Page 32: Warranty
Fertilizer Spreader SSC-SSS-SP Series Warranty LIMITED WARRANTY Belco Resources Equipment warrants to the original purchaser of any new piece of machinery from Belco Re- sources Equipment, purchased from an authorized Belco Resources Equipment dealer, that the equipment be free from defects in material and workmanship for a period of one (1) year for non-commercial, state, and mu- nicipalities’... - Page 33 Fertilizer Spreader SSC-SSS-SP Series Page left blank intentionally...
- Page 34 Fertilizer Spreader SSC-SSS-SP Series 401 Jeffreys Road Tel: 252-822-7140 Rocky Mount, NC 27804 Fax: 252-787-5855 www.tarrivermfg.com Sales@tarrivermfg.com...
