Installing the Device
2.7.2 Connecting Low DC Power
2.
3.
18
Connect the positive wire from the power source to the positive terminal on the
terminal block.
2
1 3
Positive Terminal
1
Negative Terminal
2
Surge Ground Terminal
3
Braided Ground Cable
4

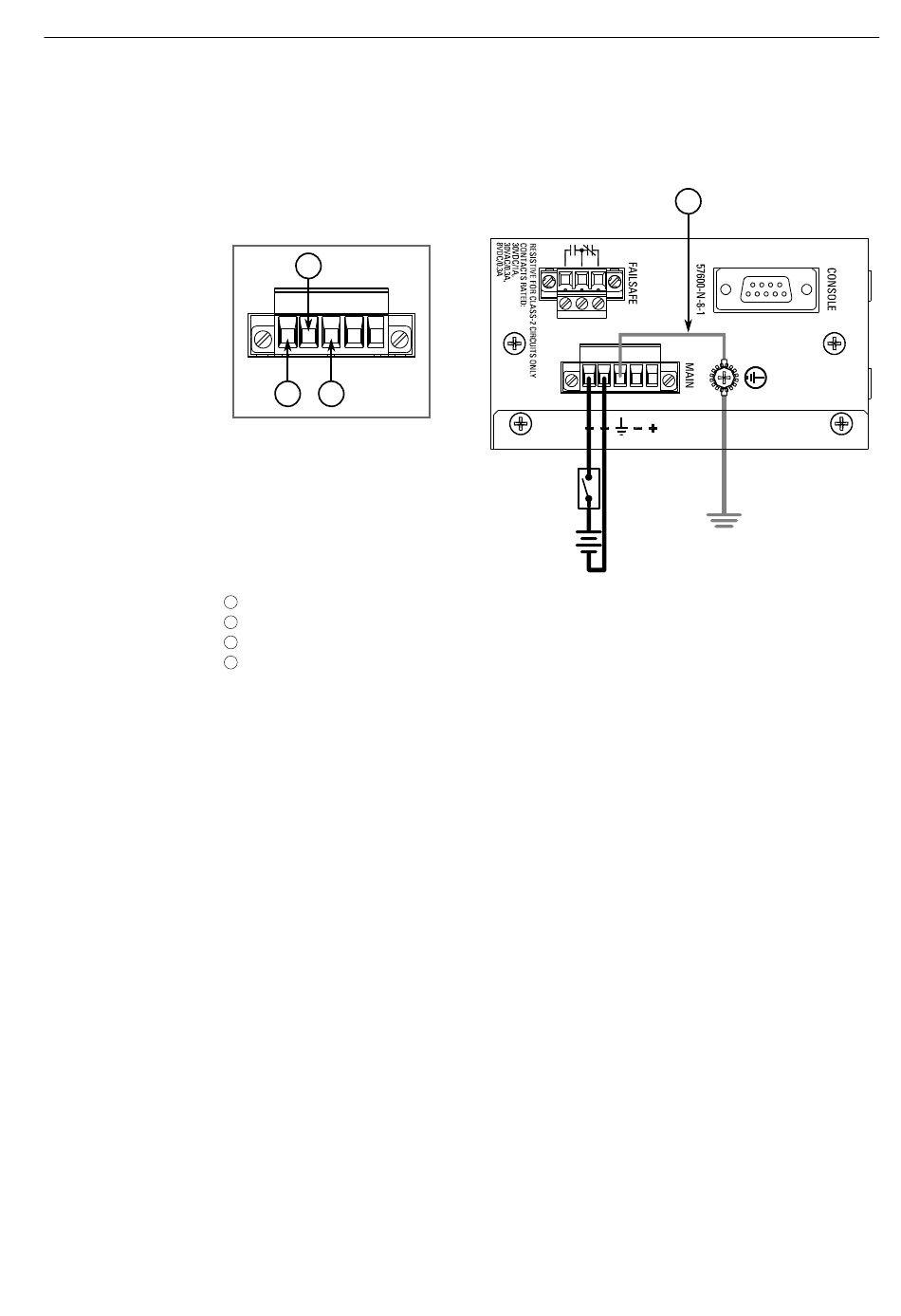

Figure 2.8 Terminal Block Wiring – Single DC Power Supply Inputs
Connect the negative wire from the power source to the negative terminal on
the terminal block.
4
±
±
