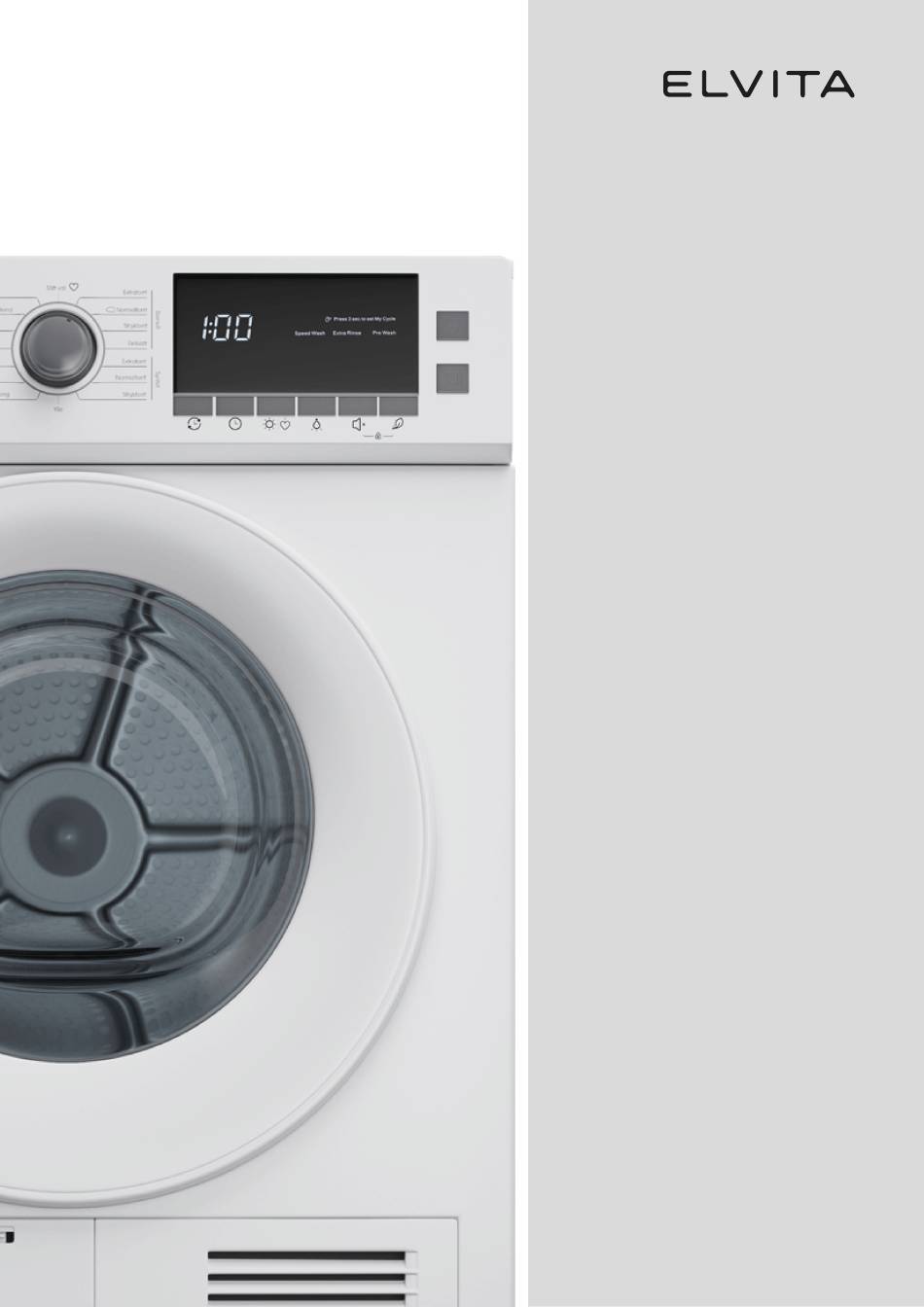

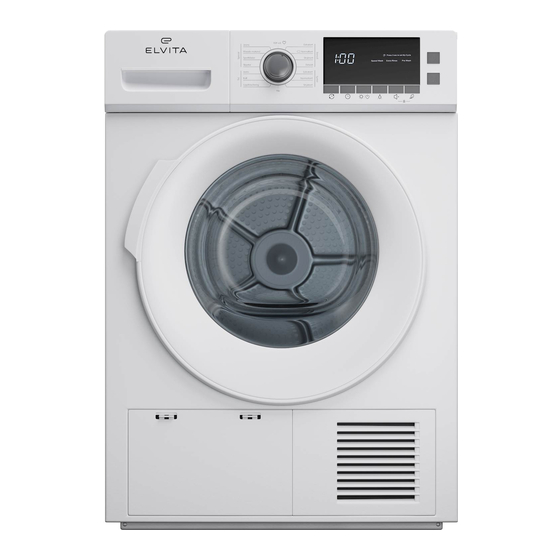

  • Page 1 User manual Tumble dryer CTT3802V...
  • Page 2 Thank you for your trust and the purchase of our product. This user manual is supplied to help you use this product. The instructions should allow you to learn about your new product as quickly as possible. Make sure you have received an undamaged product. If you do find transport damage, please contact the seller from which you purchased the product, or the regional warehouse from which it was supplied.
  • Page 3 Warranty Warranty Consumer warranty regarding quality of product applies. © 2021, Elon Group AB. All rights reserved.

  • Page 4: Table Of Contents

    Contents Contents SAFETY Admonitions ..........................Intended use ..........................Safety for children and people with disabilities................ General safety........................... Safety during installation ......................Safety during operation ......................Safety during maintenance ...................... Disposal............................. QUICK START GETTING STARTED Installation..........................Getting to know your tumble dryer................... Controls..............................
  • Page 5 Contents Mix ............................... My cycle ............................... Refresh ..............................Shirts..............................Sportswear............................Synthetics Extra dry ..........................Synthetics Standard dry ........................Synthetics Iron dry ..........................Wool ..............................CLEANING AND MAINTENANCE Clean the exterior........................Clean the tumble dryer ......................Clean the door filter ........................Empty the water container......................

  • Page 6: Safety

    Safety SAFETY Carefully read the instructions before you install and use the product. Save the instructions and keep them near the product for future reference. All kinds of warranties shall be invalid if these instructions are not followed. Admonitions WARNING! Used when there is a risk for personal injury.

  • Page 7: General Safety

    Safety General safety WARNING! Risk of electric shock! • If the power cable is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. • Do not pull forcefully at the power cord. Pull the power plug instead. •...

  • Page 8: Safety During Operation

    Safety WARNING! • Do not install the product behind a lockable door, a sliding door, or a door with a hinge on the opposite side of the product, in such a way that the product cannot be opened fully. • If this product is to be stacked on top of a washing machine, a stacking kit must be used (ordered separately).

  • Page 9: Safety During Maintenance

    Safety WARNING! Risk of explosion and fire! Do not dry the following in the product. • Unwashed items. • Items such as – foam rubber (latex foam), – shower caps – waterproof textiles, – rubber backed articles and – clothes or pillows fitted with foam rubber pads. •...

  • Page 10: Disposal

    Safety Disposal Dispose of packaging in an environmentally-friendly manner. Recycling packaging, while observing national and local regulations, can reduce the consumption of raw materials and the amount of waste in landfill sites. This product is marked in compliance with European Directive 2012/19/EU, Waste Electrical and Electronic Equipment (WEEE).

  • Page 11: Quick Start

    Quick start QUICK START Before drying Drying After drying © 2021, Elon Group AB. All rights reserved.

  • Page 12: Getting Started

    Getting started GETTING STARTED Installation See section "Installation", page 29 Getting to know your tumble dryer Controls A. Programme selector B. Display C. On/Off D. Start/Pause E. Options, settings and functions Symbols on the display Delay Child lock Clean the filters Empty the water Lamp container...

  • Page 13: Accessories

    Getting started Accessories A. Drain hose holder B. Drain hose extension with connector Drain hose holder For securing the hose and avoiding kinks, for example when placing the hose over the edge of a sink. Drain hose extension with For connecting the drain hose to an external drain. connector Use the child lock Activate the child lock to avoid accidental operation by children.

  • Page 14: Before First Use

    Getting started Before first use Run a drying cycle with minimal load Before you use the dryer the first time, leave it to stand for at least two hours after transporting it. Clean the inside of the drum with a soft cloth. 2.

  • Page 15: Drying

    Drying DRYING Before each drying cycle Check the clothing care labels, see section "Clothing care labels for tumble drying", page 2. Sort the laundry according to fabric type and drying programme. Make sure not to exceed the maximum load for the drying programme that you plan to use, see section "Reference weight for different types of clothes", page 16 section "Drying programmes",...

  • Page 16: After Each Drying Cycle

    Drying 4. Turn the programme selector to select a programme. NOTE! When drying normal cotton laundry, Cotton Standard is the most energy-efficient program. NOTE! Over-dried clothes tend to wrinkle and crease. Select settings with care. 5. Select functions or options if needed. 6.

  • Page 17: Options, Settings And Functions

    Drying Nightclothes Underwear, cotton Socks, mixed-weave (200 g) (70 g) (50 g) Single bedsheet, cotton Bath towel, cotton (600 g) (900 g) Options, settings and functions See the complete user manual for detailed instructions. Anti-crease Prevents the laundry from getting creases. Child lock Prevents accidental use of the machine. See section "Use the child lock", page Delay Delays the start of the drying programme by a specified amount of time.

  • Page 18: Use The Delay Option

    Drying Use the Delay option Turn the programme selector to select a programme. 2. Change settings and select options if needed. 3. Press to cycle through the available delay times. 4. Press The drying cycle will start after the delay time has passed. NOTE! Press to pause the countdown of the delay time.

  • Page 19: Cotton Extra Dry

    Drying Cotton Extra dry For cotton laundry that you want to dry completely and store away immediately. Recommended for thick and multi-layered articles, for example jackets. Default time 3:22 Maximum load 8.0 kg Options • Anti-crease • Delay • Dryness level Cotton Iron dry For single layer cotton laundry that is to be ironed.

  • Page 20: Jeans

    Drying Default time 0:10 Maximum load Options • Delay Jeans For jeans or leisure clothes. High spin speed. Default time 3:20 Maximum load 4.0 kg Options • Anti-crease • Delay • Dryness level For fabrics that are a mix of cotton and synthetics. Default time 1:40 Maximum load...

  • Page 21: Sportswear

    Drying Default time 1:00 Maximum load 1.0 kg Options • Anti-crease • Delay • Dryness level Sportswear For sportswear and thin synthetic fabrics, which are not to be ironed. Default time 2:00 Maximum load 3.0 kg Options • Anti-crease • Delay • Dryness level Synthetics Extra dry For thick or multi-layer synthetic fabrics.

  • Page 22: Wool

    Drying Wool For machine dryable wool products. Default time 0:25 Maximum load 1.0 kg Options • Delay © 2021, Elon Group AB. All rights reserved.

  • Page 23: Cleaning And Maintenance

    Cleaning and maintenance CLEANING AND MAINTENANCE Correct maintenance of your product can extend its working life. WARNING! Unplug the machine before starting maintenance. CAUTION! Do not use alcohol, solvents or chemical products to clean the product. Clean the exterior • When needed, clean the surface with diluted non-abrasive neutral detergents. •...

  • Page 24: Empty The Water Container

    Cleaning and maintenance Open the door. 2. Remove the filter. 3. Open the filter and remove the lint. If needed, clean the filter in water and dry the filter thoroughly. 4. Install the filter. CAUTION! Make sure to install the filter in the correct orientation. Empty the water container Do this after each drying cycle.

  • Page 25: Clean The Base Filter

    Cleaning and maintenance Clean the base filter Do this after every fifth drying cycle. Open the cover. 2. Unlock the 2 locking levers. 3. Grip the filter handle and remove the filter. 4. Clean the filter. If needed, rinse the filter in water and dry it thoroughly afterwards. 5.
  • Page 26 Cleaning and maintenance Open the cover. 2. Unlock the 2 locking levers. 3. Grip the filter handle and remove the base filter. 4. Remove the lint from the heat exchanger using a vacuum cleaner with a dusting brush attached. CAUTION! Do not apply any pressure. Applying pressure could damage the cooling fins and impair the drying performance.

  • Page 27: Troubleshooting

    Troubleshooting TROUBLESHOOTING Troubleshooting WARNING! • Only authorised technicians may carry out repairs. • If you experience problems with the product, please see if the user instructions and troubleshooting information in the user manual can help you find a solution. If the problem persists: –...
  • Page 28 Troubleshooting Problem Cause Remedy Laundry is not dry enough or drying Door filter and heat exchanger needs Clean the door filter, see took too long cleaning section "Clean the door filter", page 23. and heat exchanger, see section "Clean the heat exchanger", page 25 The installation area does not fulfill the Adjust the installation area or move...

  • Page 29: Installation

    Installation INSTALLATION Follow the instructions in this section to install your dryer. WARNING! • If this dryer is to be stacked on top of a washing machine, a stacking kit must be used (ordered separately). To avoid hazards, only the manufacturer, its service agent, or a similarly qualified technician may stack the machines.
  • Page 30 Installation • The location must be clean and dirt must not be allowed to accumulate. • Avoid direct sunlight. • Sufficient ventilation. • Room temperature above 0 °C. • Keep away from heat sources such as coal or gas appliances. • For your convenience it is recommended that the product is positioned close to your washing machine. WARNING! •...

  • Page 31: Level The Tumble Dryer

    Installation Level the tumble dryer Use a spirit level to check if the dryer is perfectly level. 2. If needed, adjust the front feet by hand or by using a tool. The back feet are not adjustable. CAUTION! Do not remove the feet of the dryer. Connect to an external drain Upon delivery, the tumble dryer is connected so that condensed water is collected in a container.

  • Page 32: Position The Drain Hose Into A Sink

    Installation Use pliers to remove the drain hose carefully but with force from the connector. 2. Fit the removed drain hose onto the hose holder. 3. Fit the external drain hose onto the connector. Position the drain hose into a sink Use the drain hose holder to keep the drain hose bent downward into the sink without kinking.

  • Page 33: Appendix

    Appendix APPENDIX Technical specifications Model code section "Find the model code", page 13 Height 845 mm Width 595 mm Depth 622 mm Weight 51 kg Rated capacity (the maximum capacity to be dried at one 8.0 kg time) Ambient temperature +5 °C to +35 °C Power supply 220-240 V AC, ~ 50 Hz Rated input power 650 W...

  • Page 34: Eu Directives And Standards

    Appendix EU Ecolabel award Weighted energy consumption at full and partial load 1.47 kWh Energy consumption at full load 1.98 kWh Energy consumption at partial load 1.08 kWh Power consumption in the off-mode (P 0.01 W Power consumption in the left-on mode (P 0.8 W Duration of the left-on mode 10 min Weighted programme time at full and partial load...
  • Page 35 Appendix © 2021, Elon Group AB. All rights reserved.
  • Page 36 Elvita products are distributed and marketed by Elon Group AB. Elon Group AB Bäcklundavägen 1 | 702 03 Örebro Sweden ELON GROUP | +46(0)10-220 40 00 | ELONGROUP.SE Support and service: ELVITA.SE...
