22/32 Commissioning
1. Press the ON/OFF
button (P) and hold it
briefl y (max. 3 seconds)
until:

The ON/OFF button (P)
fl ashes green.

The signal lamps (F)
fl ash yellow.

The signal lamps (F)
light up permanently
in yellow.

A warning signal
sounds.

The bootscreen is
displayed.

The ON/OFF
button (P) lights up
permanently in green.

The acknowledgment
button (Q) fl ashes
green.
2. Press the
acknowledgment
button (Q).

The acknowledgment
button (Q) lights up
permanently in green.

The Bluespot (G)
lights up.

The ActiveShuttle
is in "Automatic"
operating mode.

When the emergency
stop device (R)
is actuated, the
ActiveShuttle is stopped.

The signal lamps (F)
light up permanently
in red.
Bosch Rexroth AG, ActiveShuttle: Lithium-ion battery, 3 842 560 864/2021-10
1.1.5

Switching on the ActiveShuttle

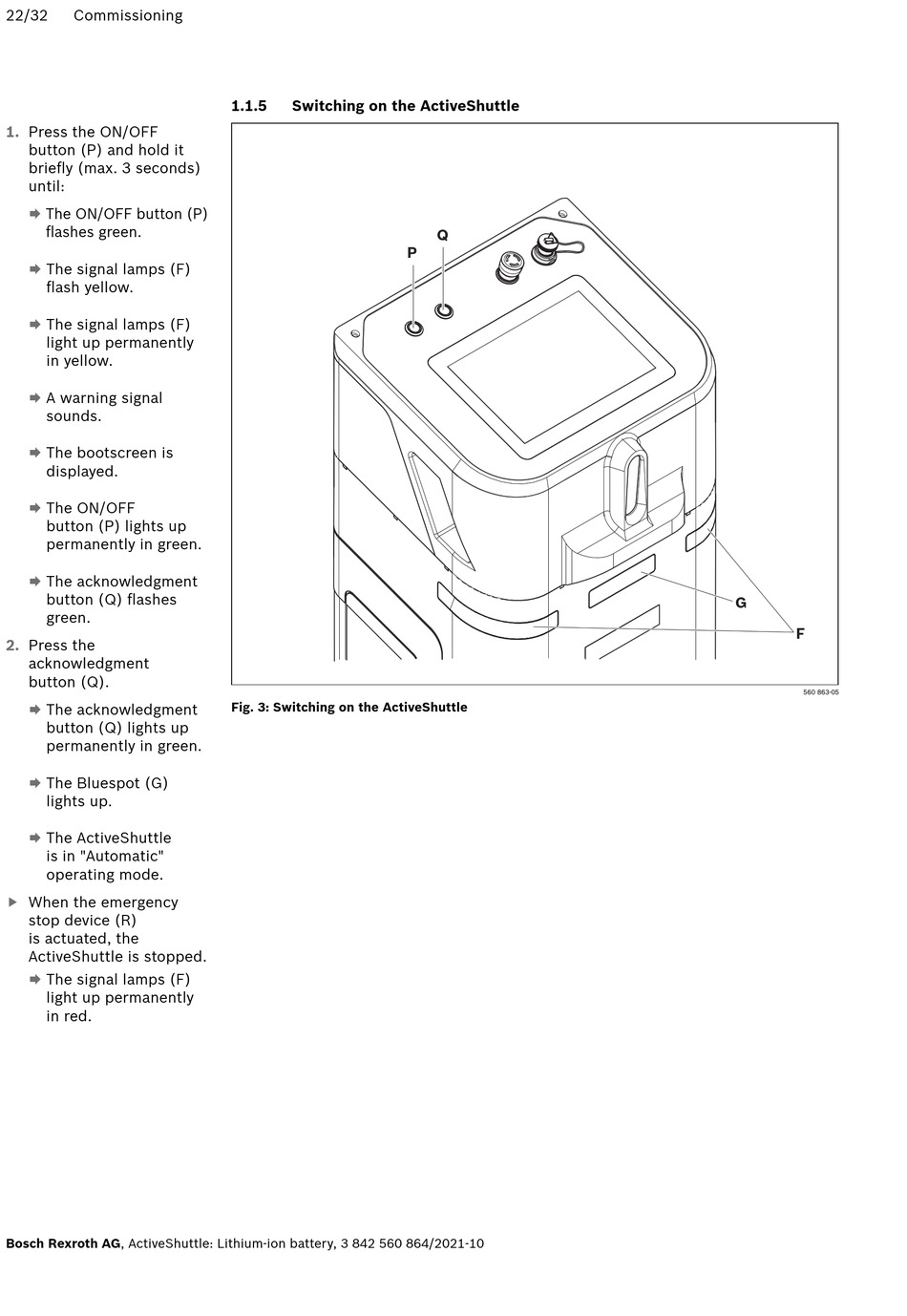

Fig. 3: Switching on the ActiveShuttle
Q
P
G
F
