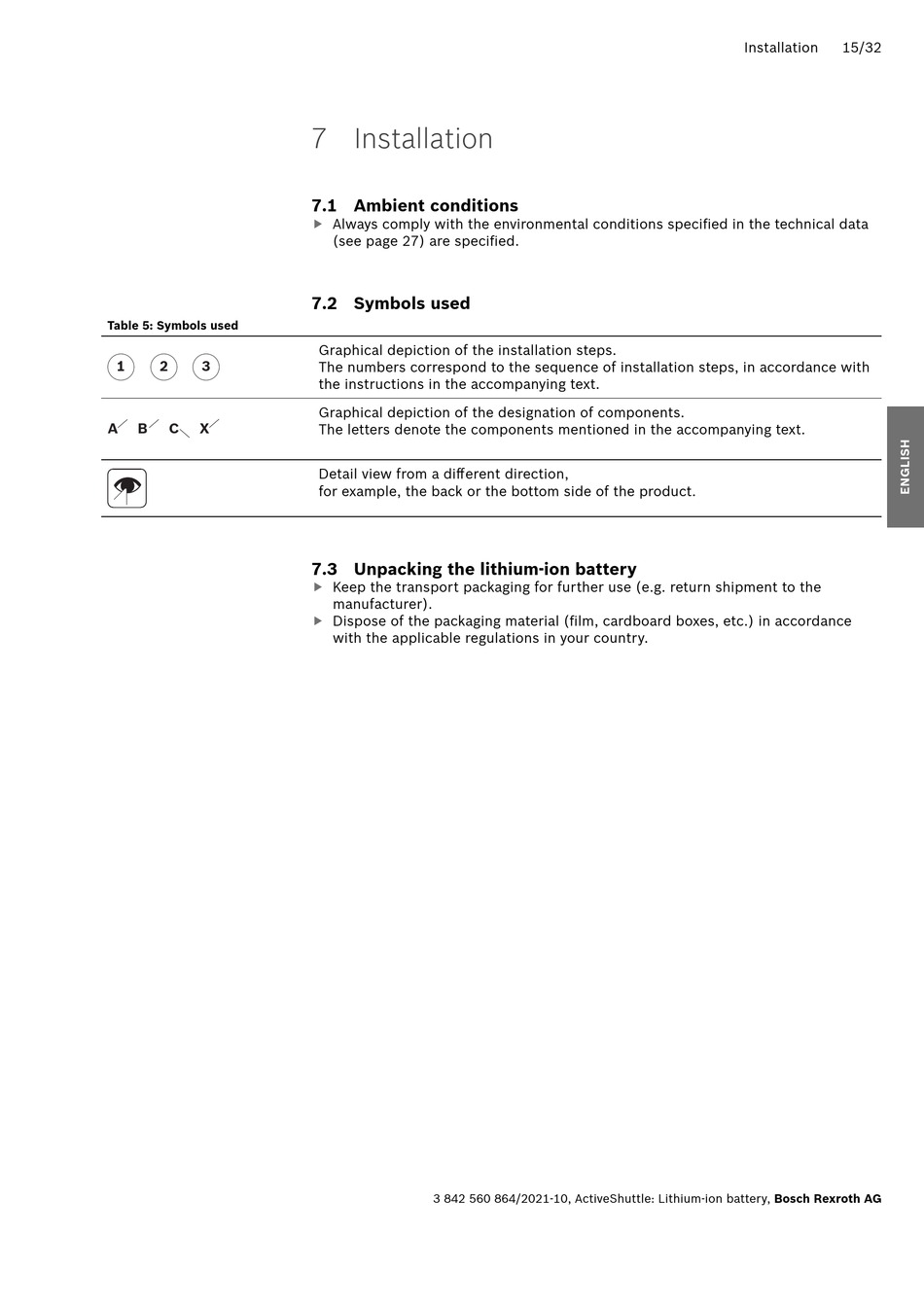

7 Installation

7.1 Ambient conditions


Always comply with the environmental conditions specifi ed in the technical data
(see page 27) are specifi ed.

7.2 Symbols used

Graphical depiction of the installation steps.
The numbers correspond to the sequence of installation steps, in accordance with
the instructions in the accompanying text.
Graphical depiction of the designation of components.
The letters denote the components mentioned in the accompanying text.
Detail view from a diff erent direction,
for example, the back or the bottom side of the product.

7.3 Unpacking the lithium-ion battery


Keep the transport packaging for further use (e.g. return shipment to the
manufacturer).

Dispose of the packaging material (fi lm, cardboard boxes, etc.) in accordance
with the applicable regulations in your country.
