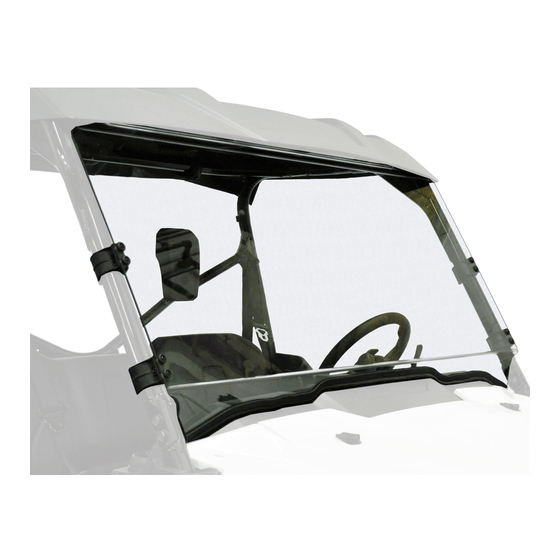

Honda Pioneer 1000 - Full Windshield
Product Instructions | Part No: 2786
Application:
Verify accessory fitment at Kolpin.com.
Before You Begin:
to be sure all parts are accounted for. If any items are miss-
ing, do not return to the store. Call us at 1-877-956-5746
for assistance. Please retain these instructions for future
reference and parts ordering information.
Dealers:
Provide Instruction Manual to customer at time
of purchase.
1
Tools Required:
•
4mm Hex Wrench or Socket
Read these instructions and check
2
•
Shears or Wire Cutter
Kolpin Outdoors, Inc. | 9955 59th Ave N | Plymouth, MN 55442
(877) 956-5746 or (763) 478-5800 |
© 2019 Kolpin Outdoors Inc.

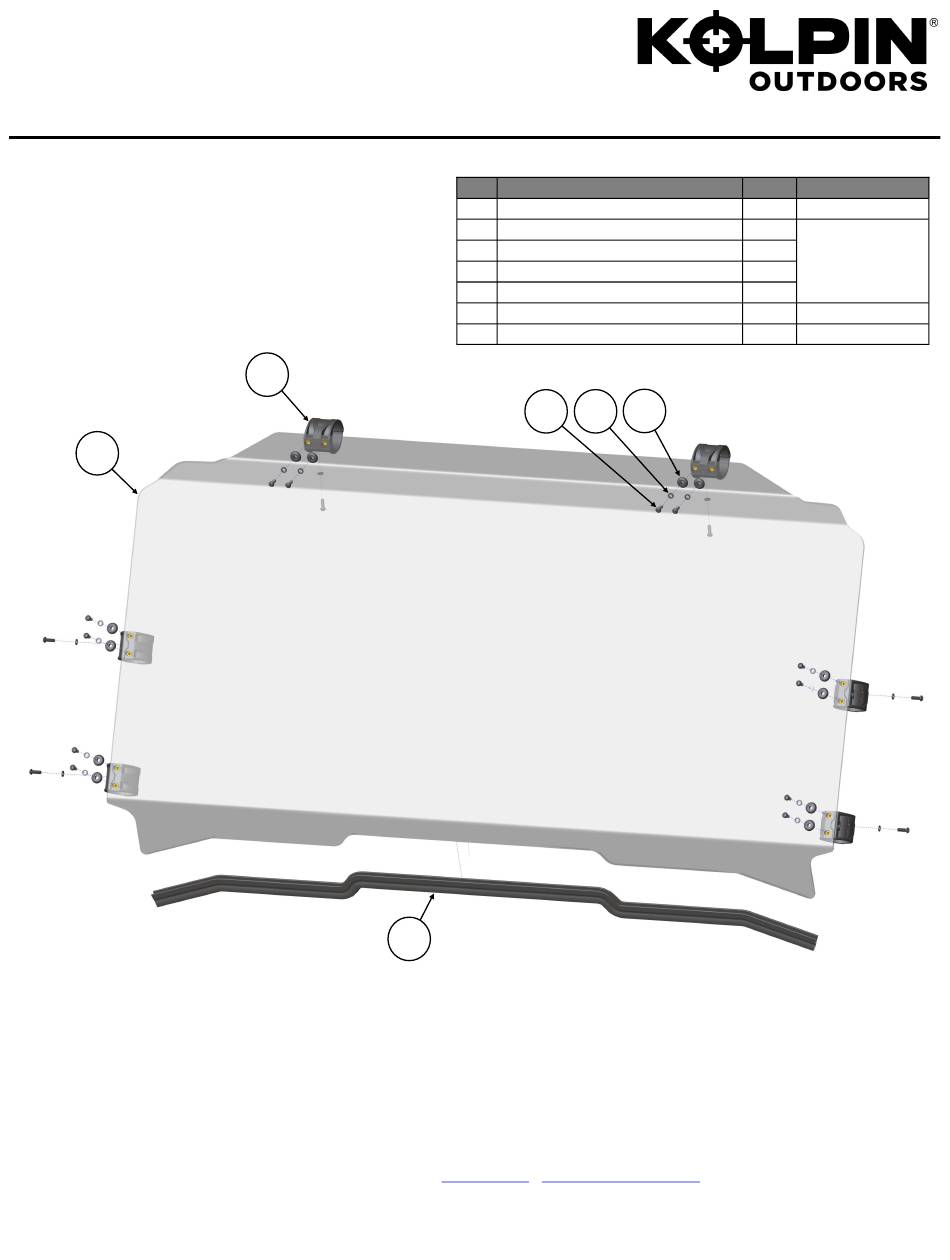

Product Contents:
Item Description
1
Windshield Panel
2
Clamp - 2.00" Diameter
3
Button Head Screw - M6 x 18mm
4
Lock Washer - M6
5
Domed Shoulder Washer - M6
6
Rubber Spacer - 3.2mm Thick
7
Bulb Seal - 60"
3
7
www.kolpin.com
|
customerservice@kolpin.com
1
REV 00
Qty
1
6
18
18
12
6
1
4
5
•
Torque Wrench
Part Number
K100121 (Qty 3)
K100189 (Qty 3)
PUR3322 (Qty 1)
Advertisement
Table of Contents
Related Manuals for Kolpin Outdoors 2786
Summary of Contents for Kolpin Outdoors 2786
- Page 1 • • 4mm Hex Wrench or Socket Shears or Wire Cutter Torque Wrench Kolpin Outdoors, Inc. | 9955 59th Ave N | Plymouth, MN 55442 (877) 956-5746 or (763) 478-5800 | www.kolpin.com customerservice@kolpin.com © 2019 Kolpin Outdoors Inc. REV 00...
- Page 2 Lock Washers [Item 4], and four Domed Shoulder Washers [Item 5]. Do not tighten hardware yet. See Illustration 1-3. Position Windshield onto vehicle Roll Cage and leave Clamps in open position. Ill. 1-3 © 2019 Kolpin Outdoors Inc. REV 00...
- Page 3 Cage. Tighten to the specified torque. SPECIFIED FASTENER TORQUE: 7 ft. lbs. (84 in-lb) (9.5 Nm) 13. Remove the protective film from both sides of the Windshield Panel. 14. Re-inspect hardware before and after riding or trailer- ing. © 2019 Kolpin Outdoors Inc. REV 00...
- Page 4 Peripheral products such as engines, electric motors, and actuators may carry an original manufacturer’s warranty. Most hardware is general in nature and is easily obtained locally. Be sure to replace with minimum metric class 8.8 specification. © 2019 Kolpin Outdoors Inc. REV 00...
