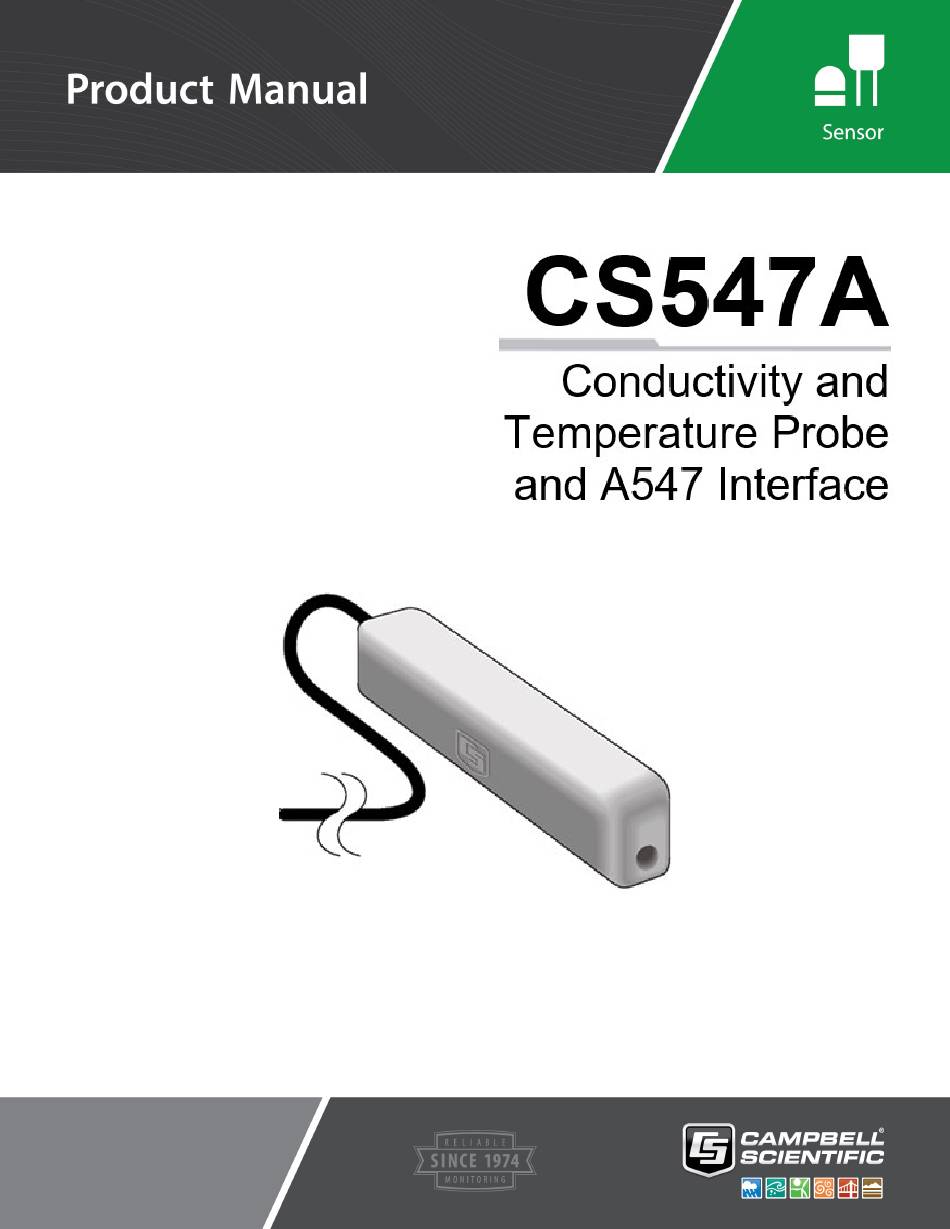

  • Page 1 Revision: 02/2022 Copyright © 1994 – 2022 Campbell Scientific, Inc.

  • Page 2: Table Of Contents

    Table of contents 1. Introduction 2. Precautions 3. Initial inspection 4. QuickStart 5. Overview 5.1 EC sensor 5.2 Conductivity interface 6. Specifications 6.1 CS574A probe 6.2 Temperature sensor 6.3 A547 interface 7. Installation 7.1 Site selection 7.2 Mounting 7.3 Wiring 7.4 Programming 7.4.1 EC measurement 7.4.2 Ionization correction...
  • Page 3 8.4 Schematics 9. Maintenance Appendix A. Importing Short Cut code into CRBasic Editor Table of Contents - ii...

  • Page 4: Introduction

    1. Introduction The CS574A probe monitors the electrical conductivity (EC) and temperature of fresh water. It connects to a Campbell Scientific data logger using the A547 interface. This probe is compatible with most Campbell Scientific data loggers. NOTE: This manual provides information only for CRBasic data loggers. For retired Edlog data logger support, see an older manual at www.campbellsci.com/old-manuals...
  • Page 5 3. In the Available Sensors and Devices box, type CS574A or locate the sensor in the Sensors > Water > Quality > CS547A Conductivity and Temperature Probe folder. Double click on the CS547A Conductivity and Temperature Probe. Type the Cell Constant Kc (printed on...
  • Page 6 4. Click on the Wiring tab to see how the sensor is to be wired to the A547 and data logger. 5. In Output Setup, type the scan rate, meaningful table names, and Data Output Storage Interval. Click Next. CS574A Conductivity and Temperature Probe and A547 Interface...

  • Page 7: Overview

    6. Select the measurement and its associated output option. 7. Click Finish and save the program. Send the program to the data logger if the data logger is connected to the computer. 8. If the sensor is connected to the data logger, check the output of the sensor in the data display in LoggerNet, RTDAQ, or PC400 to make sure it is making reasonable measurements.

  • Page 8: Ec Sensor

    Rounded ends facilitate installation and removal Easy to clean Corrosion resistant Weighted option available for stand-alone submersion Compatible with Campbell Scientific CRBasic data loggers: CR6, CR1000X, CR800-series, CR3000, CR1000 5.1 EC sensor The CS574A consists of three stainless steel rings mounted in an epoxy tube (FIGURE 5-1 (p.

  • Page 9: Specifications

    FIGURE 5-2. A547 Interface 6. Specifications 6.1 CS574A probe Housing: Epoxy Length: 89 mm (3.5 in) Width: 25.4 mm (1 in) Height: 19 mm (0.75 in) Minimum pipe ID in which CS574A fits: 28 mm (1.1 in) Maximum cable length: 305 m (1000 ft).

  • Page 10: Temperature Sensor

    EC range: ~ 0.005 to 7.0 mS/cm EC measurement error Bridge measurement error: <1% Calibration error: In KCl and Na2SO4, NaHCO3, and NaCl standard solutions at 25 °C: ±5% of reading (0.44 to 7.0 mS/cm) ±10% of reading (0.005 to 0.44 mS/cm) Ionization error of KCl and Na+ solutions after correction: <...

  • Page 11: Installation

    Weight: 45 g (2 oz) Temperature rating: –15 to 50 °C 7. Installation If you are programming your data logger with Short Cut, skip Wiring (p. 8) and Programming 9). Short Cut does this work for you. See QuickStart (p. 1) for a Short Cut tutorial. 7.1 Site selection The CS574A measures the EC of water inside the hole running through the sensor, so detection of rapid changes in EC requires the probe be flushed continuously.

  • Page 12: Programming

    FIGURE 7-1. CS574A wiring diagram 7.4 Programming Short Cut is the best source for up-to-date programming code for Campbell Scientific data loggers. If your data acquisition requirements are simple, you can probably create and maintain a data logger program exclusively with Short Cut. If your data acquisition needs are more complex, the files that Short Cut creates are a great source for programming code to start a new program or add to an existing custom program.

  • Page 13: Ec Measurement

    7.4.1 EC measurement NOTE: Older data loggers, such as the CR800-series and CR1000, use a different method to measure EC. Refer to the CR1000 example program at www.campbellsci.com/downloads/cs547a- program-examples for more information. BrFull() BrFull() 1. Measure the voltage output using the CRBasic instruction.

  • Page 14: Correct Ec Measurement For Temperature Errors

    resistance measurement, and converts the result to temperature using the Steinhart-Hart equation. See Measurement and output linearization section in the 107 manual for more Therm107() information. instruction and parameters are as follows: Therm107(Dest, Reps, SEChan, VxChan, SettlingTime, Integ/fN1, Mult, Offset) Set Mult to 1 and Offset to 0, which reports temperature as degree Celsius.

  • Page 15: Operation

    8. Operation 8.1 Calibration 8.1.1 Conversion factors 1 S (Siemens) = 1 mho = 1/ohm –1 –1 –1 Although mS·cm and µS·cm are the commonly used units of EC, the SI base unit is S·m . The –1 result of the example programs is mS·cm EC measurements can be used to estimate dissolved solids.

  • Page 16: Deriving A Temperature Compensation Coefficient

    (p. 8). Program the data logger to make the field calibration. A downloadable calibration program is available at www.campbellsci.com/downloads/cs547a-program-examples The calibration solution temperature must be between 1 and 35 °C; a polynomial is used to correct for temperature errors within this range. The solution constant of 1.408 mS/cm (for prepared solution mentioned previously), is valid only for a 0.01 molal KCl solution.
  • Page 17 –1 FIGURE 8-1. Plot of ideal and actual correction between 0 and 0.44 mS cm –1 FIGURE 8-2. Plot of ideal and actual correction between 0.44 and 7.0 mS cm 8.4 Schematics The CS574A schematic is provided in FIGURE 8-3 (p.
  • Page 18 FIGURE 8-3. CS574A conductivity and temperature circuit diagram FIGURE 8-4. A547 Interface circuit diagram 9. Maintenance Routine maintenance includes thoroughly cleaning the orifice of the CS574A probe with the black nylon brush provided and some soapy water. Rinse thoroughly. CS574A Conductivity and Temperature Probe and A547 Interface...
  • Page 19 Appendix A. Importing Short Cut code into CRBasic Editor Short Cut creates a .DEF file that contains wiring information and a program file that can be imported into the CRBasic Editor. By default, these files reside in the C:\campbellsci\SCWin folder. Import Short Cut program file and wiring information into CRBasic Editor: 1.
  • Page 20 See Product Details on the Ordering Information pages at www.campbellsci.com . Other manufacturer's products, that are resold by Campbell Scientific, are warranted only to the limits extended by the original manufacturer. Refer to www.campbellsci.com/terms#warranty for more information.
  • Page 21 To obtain a Returned Materials Authorization or Repair Reference number, contact your CAMPBELL SCIENTIFIC regional office. Please write the issued number clearly on the outside of the shipping container and ship as directed. For all returns, the customer must provide a “Statement of Product Cleanliness and Decontamination”...
  • Page 22 Do not recharge, disassemble, heat above 100 °C (212 °F), solder directly to the cell, incinerate, or expose contents to water. Dispose of spent batteries properly. WHILE EVERY ATTEMPT IS MADE TO EMBODY THE HIGHEST DEGREE OF SAFETY IN ALL CAMPBELL SCIENTIFIC PRODUCTS, THE CUSTOMER ASSUMES ALL RISK FROM ANY INJURY RESULTING FROM IMPROPER INSTALLATION, USE, OR MAINTENANCE OF TRIPODS, TOWERS, OR...
  • Page 23 Campbell Scientific Regional Offices Australia France Thailand Location: Garbutt, QLD Australia Location: Vincennes, France Location: Bangkok, Thailand Phone: 61.7.4401.7700 Phone: 0033.0.1.56.45.15.20 Phone: 66.2.719.3399 Email: info@campbellsci.com.au Email: info@campbellsci.fr Email: info@campbellsci.asia Website: www.campbellsci.com.au Website: www.campbellsci.fr Website: www.campbellsci.asia Brazil Germany Location: São Paulo, SP Brazil...
