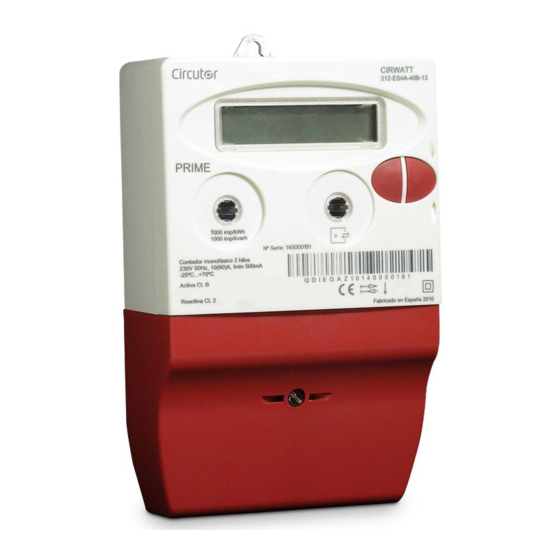

Circutor CIRWATT B 101-102 Instruction Manual

Circutor CIRWATT B 101-102 Instruction Manual

Single-phase meter
Table of Contents

Advertisement

Quick Links

Single-phase meter
CIRWATT B 101-102
INSTRUCTION MANUAL
(M98230701-03-21A)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CIRWATT B 101-102 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Circutor CIRWATT B 101-102

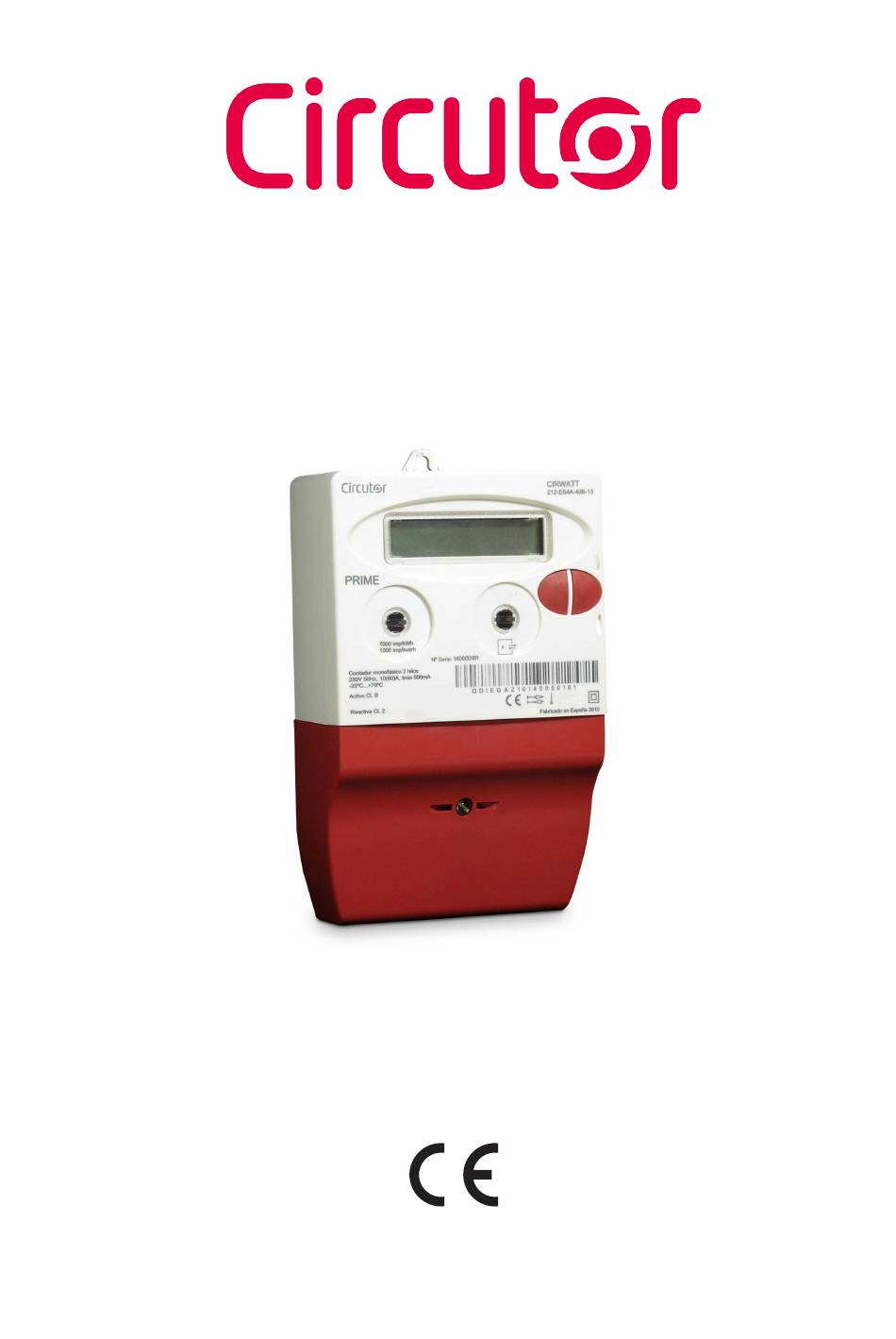

  • Page 1 Single-phase meter CIRWATT B 101-102 INSTRUCTION MANUAL (M98230701-03-21A)
  • Page 2 CIRWATT B 101-102 Instruction Manual...
  • Page 3: Safety Precautions

    CIRCUTOR, SA reserves the right to make modifications to the device or the unit specifications set out in this instruction manual without prior notice. CIRCUTOR, SA on its web site, supplies its customers with the latest versions of the device specifica- tions and the most updated manuals.
  • Page 4: Table Of Contents

    CIRWATT B 101-102 CONTENTS SAFETY PRECAUTIONS ���������������������������������������������������������������������������������������������������������������������������������������������������������3 DISCLAIMER ��������������������������������������������������������������������������������������������������������������������������������������������������������������������������3 CONTENTS �����������������������������������������������������������������������������������������������������������������������������������������������������������������������������4 REVISION LOG �����������������������������������������������������������������������������������������������������������������������������������������������������������������������6 SYMBOLS �������������������������������������������������������������������������������������������������������������������������������������������������������������������������������6 1 - VERIFICATION UPON RECEPTION ������������������������������������������������������������������������������������������������������������������������������������ 7 2 - PRODUCT DESCRIPTION ������������������������������������������������������������������������������������������������������������������������������������������������� 7 2�1 - METER VERSIONS �����������������������������������������������������������������������������������������������������������������������������������������������������8 2�2 - METROLOGY �������������������������������������������������������������������������������������������������������������������������������������������������������������8 2�3 - PARAMETERS MEASURED ���������������������������������������������������������������������������������������������������������������������������������������9 2�4 - NOMINAL, MAXIMUM AND MINIMUM OPERATING CONDITIONS �����������������������������������������������������������������������������9...
  • Page 5 CIRWATT B 101-102 3�2�2�- SCROLLING DISPLAY VARIABLES �������������������������������������������������������������������������������������������������������������������23 3�2�3�- DEFAULT SCREEN �������������������������������������������������������������������������������������������������������������������������������������������24 4 - COMMUNICATIONS ��������������������������������������������������������������������������������������������������������������������������������������������������������25 4�1 - OPTICAL COMMUNICATIONS PORT �����������������������������������������������������������������������������������������������������������������������25 4�2 - RS-485 COMMUNICATIONS (MODEL B 102) ����������������������������������������������������������������������������������������������������������25 4�3 - MODBUS MEMORY MAP (MODEL CIRWATT B 102) �����������������������������������������������������������������������������������������������25 5 - PARAMETERISATION AND READING SOFTWARE ���������������������������������������������������������������������������������������������������������27...
  • Page 6: Revision Log

    CIRWATT B 101-102 REVISION LOG Table 1: Revision log Date Revision Description Manual design modification. 11/21 M98244801-03-21A Changes in the following sections: 2 - 2.9 - 2.17. - 7. SYMBOLS Table 2: Symbols� Symbol Description In accordance with the relevant European directive.
  • Page 7: Verification Upon Reception

    Perform an external visual inspection of the device prior to switching it on. If any problem is noticed upon reception, immediately contact the transport com- pany and/or CIRCUTOR's after-sales service� 2 - PRODUCT DESCRIPTION CIRWATT Type B 101-102 is a single-phase static energy meter used to measure Class B active energy, in compliance with the European Directive 22/2004 EC or Class 1 in accordance with the IEC 62052- 11 and IEC 62053-21 Standards.
  • Page 8: 2�1 - Meter Versions

    CIRWATT B 101-102 2�1 - METER VERSIONS The following table shows all the possible options that are available for the CIRWATT B 101-102. This table is generic, meaning that some versions listed in it may not currently be available Table 3: Meter versions�...
  • Page 9: 2�3 - Parameters Measured

    CIRWATT B 101-102 2�3 - PARAMETERS MEASURED The meter is able to measure the following parameters: • Active energy imported, exported and reactive in all four quadrants. • Active and reactive power. • Effective voltage and current • Power factor 2�4 - NOMINAL, MAXIMUM AND MINIMUM OPERATING CONDITIONS...
  • Page 10: 2�5�3 - Voltage Bridges

    CIRWATT B 101-102 2�5�3 - VOLTAGE BRIDGES The bridge separates the voltage and current circuits internally, making it impossible to manipulate them externally. 2�5�4 - SEALS The cover and base socket of the meter are closed, making it impossible to open them or insert foreign objects without breaking the enclosure.
  • Page 11: 2�6 - Data Display

    CIRWATT B 101-102 Tariff modification input (Ripple Control) (terminals 23-24): this input is used to make a tariff change on 2-tariff energy meters. RS-485 Communications port (terminals 21-22): this port allow to download data from the meter or to setup the meter. This port is also used to connect the energy meter to an RS-485 communications bus.
  • Page 12: 2�7 - Verification Pulses

    CIRWATT B 101-102 2�7 - VERIFICATION PULSES The device has a combined verification LED used to verify reactive and active energy. The weight of the LED set to 1,000 imp/kWh(kvarh). The LED is lit when the current is lower than during the energy meter’s start-up. The LED will turn...
  • Page 13: 2�10 - Enclosure

    CIRWATT B 101-102  Minimum current.  Additional metrology marking (will be indicated only for MID models).  CE marking.  Firmware version. 2�10 - ENCLOSURE The dimensions of the enclosure of the CIRWATT, as well as its anchor points, are in accordance with the DIN 43859 and DIN 43857 standards.
  • Page 14: 2�13 - Real-Time Clock (Depending On The Model)

    CIRWATT B 101-102 2�13 - REAL-TIME CLOCK (depending on the model) The meter has a real-time clock capable of keeping the date and time with a drift of less than 0.5 seconds/day, as specified in the UNE EN 61038 standard.
  • Page 15: 2�17�2 - Tariff Periods

    CIRWATT B 101-102 established by the dates of daylight saving time, with no need for any further parameterisation, since they are adjusted automatically every year. The automatic time change option can be disabled. 2�17�2 - TARIFF PERIODS A tariff period is an hourly block in which a specific tariff is applied. There will be a minimum of one hourly block and a maximum of three hourly blocks.
  • Page 16: 2�21 - Load Curve (Optional)

    CIRWATT B 101-102 The following events are registered:  Start  Power supply error  Time change  Software Update  Parameter modification  Intruder detection Start  Intruder detection End  Neutral current alarm 2�21 - LOAD CURVE (OPTIONAL) The energy meter can have an adjustable load curve (usually between 15 and 60 minutes), where the measured energies are recorded.
  • Page 17: 2�23 - Synchronism

    CIRWATT B 101-102 2�23 - SYNCHRONISM The device must have an internal clock with a calendar to perform the billing closures, maximum value calculations, preparation of load curves and event dating and alarms. Basic features: The Accuracy of the clock will have a maximum deviation of 0.5 s/day. The accuracy features of the internal clock are defined in EN 62054-21.
  • Page 18: 2�24�5 - Seals

    CIRWATT B 101-102 2�24�5 - SEALS The CIRWATT B 101-102 can be protected using the following seals: Sealable button Laboratory seal Wire cover lid seal Figure 2:Seals� 2�24�6�- PARAMETERIZATION RESET There is a full reset mode that re-establishes the default factory parameters on the unit and sets the records to zero, except for the total values of the 6 energy magnitudes (EN50470-1 Standard, section 5.10).
  • Page 19 CIRWATT B 101-102 EN 62053-23:2003 - Electricity metering equipment (AC). Particular requirements. Part 23: Static me- ters for reactive energy (Classes 2 and 3). EN 62056-21:2003 - Electricity metering - Data exchange for meter reading, tariff and load control -- Part 21: Direct local data exchange UNE 20324:1993 - Degrees of protection provided by enclosures (IP Code).
  • Page 20: Operation Of The Meter

    CIRWATT B 101-102 3 - OPERATION OF THE METER This section describes the performance of the device from a functional point of view; that is, it explains how to manage all the information it provides, as well as how to configure the system's various fea- tures.
  • Page 21 CIRWATT B 101-102 00.06.00 8.88.8.8.8.8 00.01 AUTO AUTO L3 T8 kVAr AUTO VALue3 VALue2 VALue1 CoDE3 CoDE2 CoDE1 AUTO AUTO VALue16 [...] AUTO AUTO CoDE16 Note: Through manually short keystrokes the different screens will be shown. 000000.6 INST. ALARM uERSIoN...
  • Page 22 CIRWATT B 101-102 3�2�1�3�- Bill screen By entering on that screen a bill closure will be forced. After 6 seconds it will go back to stand by screen. TIMER OFF bill done STAND BY 003 Figure 6:Bill screen� 3�2�1�4�- LED screen On that screen the user can select if the LED pulse is related to active or reactive energy.
  • Page 23: 3�2�2�- Scrolling Display Variables

    CIRWATT B 101-102 3�2�1�7�- Return screen return 000000.6 Note: It has a timer of 60 seconds Figure 10:Return screen� 3�2�2�- SCROLLING DISPLAY VARIABLES The user can configure up to 16 variables to be show on the scrolling display. The list of variables are in Table 6.
  • Page 24: 3�2�3�- Default Screen

    CIRWATT B 101-102 Table 6 (Continuation): List of screens� Code Description Obis Code Data line code Exported active energy in T1 in the last bill closure b000000 2.8.1 Exported active energy in T2 in the last bill closure 2.8.2 b000000...
  • Page 25: Communications

    MASTER peripheral device that will query data in this protocol. The standard meter goes with the protocol IEC 62056-21 into the RS-485 communication bus. By re- quest, CIRCUTOR can provide the meter with Modbus communications. shows the Modbus memory map. Table 7...
  • Page 26 CIRWATT B 101-102 Table 7: Modbus Map� Address Type Variable Hexadecimal Decimal 0x0008 Int 16 Peripheral address 0x0300 Int 32 Serial number 0x0708 1800 Int 32 Imported active energy Wh without decimals 0x0710 1808 Int 32 Exported active energy Wh without decimals...
  • Page 27: Parameterisation And Reading Software

    Attention: All the connections must be made inside the terminal cover. 6�2 - METER CONNECTION DIAGRAM CIRWATT B 101-102 single-phase energy meters have the same type of electrical connection, whether they have additional performance features, such as the impulse output, relay output, tariff modification input or RS-485 port on the upper connection terminals.
  • Page 28: Technical Features

    CIRWATT B 101-102 7 - TECHNICAL FEATURES Power Supply Mode Self-powered Rated voltage 127 V - 230 V ± 20% Tolerance Consumption < 2 W, 10 VA Frequency 50 / 60 Hz any of the two frequencies Operating temperature -25 ºC ... +70 ºC (-40ºC ... +70 ºC metrological part)
  • Page 29 CIRWATT B 101-102 (continuation) Optical port Protocol EN 62056-21 Mode C RS-485 port (optional) Hardware EN 62056-21 Baud rate 9600 bps Protocol EN 62056-21 Mode C Tamper detector Activation Tampering with the meter or connections Insulation Alternating voltage 4 kV RMS 50 Hz for 1 minute Overpulse 1�2/50 us 0 R strong impedance...
  • Page 30: Maintenance And Technical Service

    CIRWATT B 101-102 8 - MAINTENANCE AND TECHNICAL SERVICE In the case of any query in relation to device operation or malfunction, please contact the CIRCUTOR, SA Technical Support Service. Technical Assistance Service Vial Sant Jordi, s/n, 08232 - Viladecavalls (Barcelona) Tel: 902 449 459 ( España) / +34 937 452 919 (outside of Spain)
  • Page 31 CIRWATT B 101-102 Instruction Manual...
  • Page 32 CIRCUTOR, SA Vial Sant Jordi, s/n 08232 - Viladecavalls (Barcelona) Tel: (+34) 93 745 29 00 - Fax: (+34) 93 745 29 14 www.circutor.es central@circutor.com...
