Rightline Gear 110930 Quick Start Manual

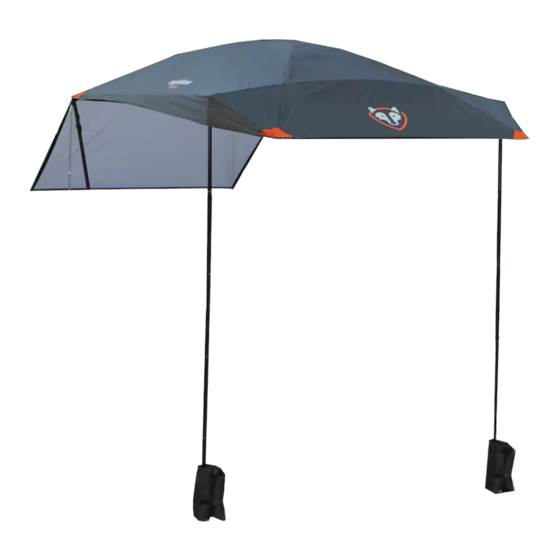

SUV Tailgating Canopy
Set Up https://rightlinegear.com/support-
Video: faqs/product-videos/
The correct attachment of this product is critical and
beyond the control of Rightline Gear. The safe use
and long life of this product depends entirely on
your good judgment and following these directions.

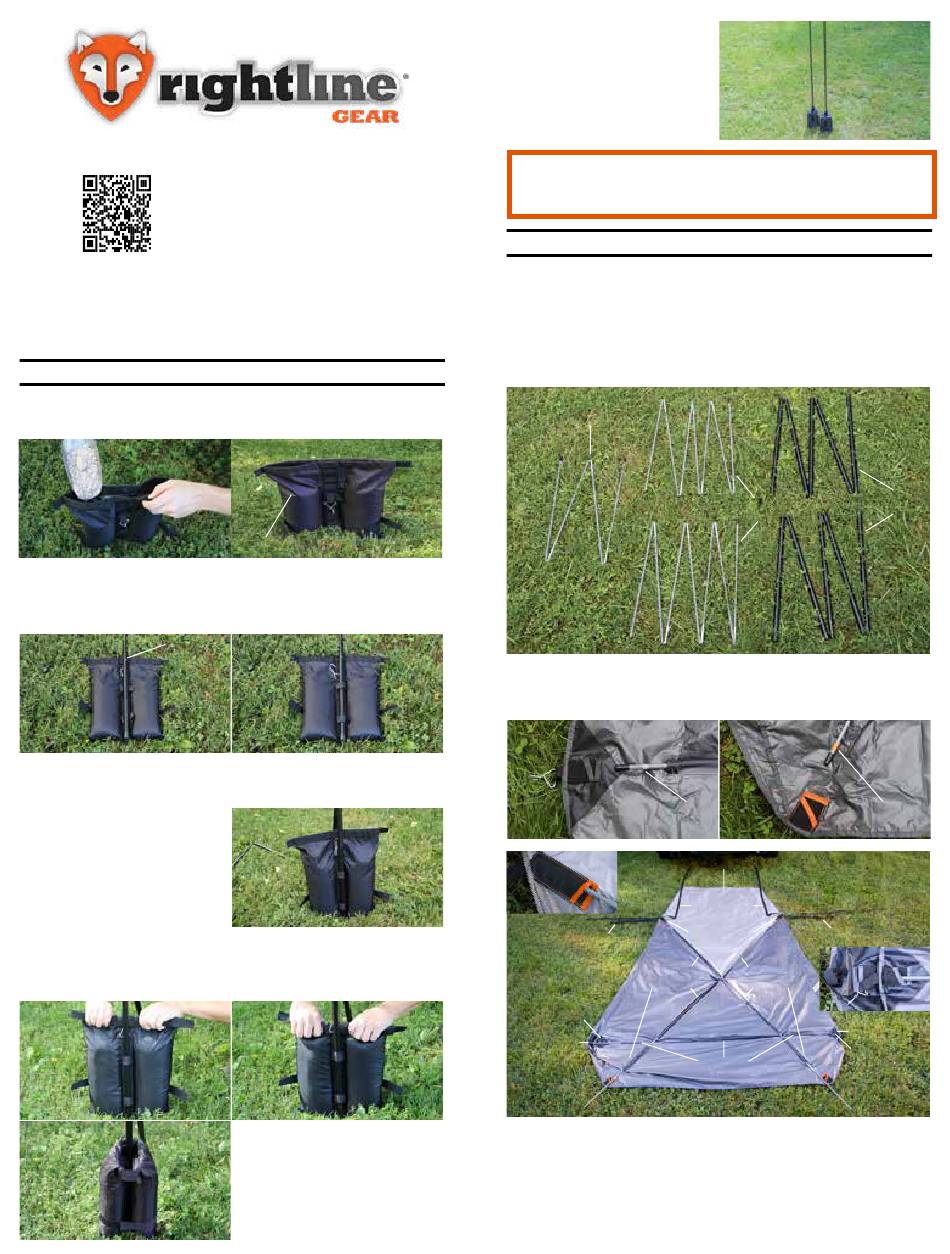

Set Up The Steel Poles
1-Fill the first sand bag to approximately 5" from the top
with sand (Fig 1).
Fig 1
2-Secure the bag's hook-&-loop closures.
3-Locate the side of a steel pole segment that has a hole
at the same height as the sand bag (Fig 2).
Hole
Fig 2
4-Connect the sand bag's center hook-&-loop closures
around the pole segment (Fig 3).
5-Connect the sand bag's
metal hook to the hole
in the pole segment and
stand the sand bag and
pole segment upright
(Fig 4).
6-Roll the top of the sand bag down (2) times and con-
nect the top and bottom hook-&-loop closures around the
pole segment (Fig 5, Fig 6, and Fig 7).
Fig 5
Fig 7
110930
Sand Fill Line
Fig 3
Fig 4
Fig 6
7-Connect the remaining
segments of the steel pole.
Repeat for the second steel
pole and sand bag (Fig 8).
NOTE: WHEN POSITIONING THE STEEL POLES AND SAND
BAGS, PICK UP THE POLES AND SAND BAGS TOGETHER.
DO NOT TRY TO PICK UP ONLY THE STEEL POLES OR
ONLY THE SAND BAGS AS DAMAGE MAY OCCUR.
Set Up The Canopy
1-Clean the vehicle's hatch of all dirt and debris and
open it.
2-Lay the canopy over a flat area, logo side facing
downwards.
3-Identify the gray marked pole and (2) orange marked
poles (Fig 9, 10, 11).
Gray Pole
Fig 9
4-Thread the gray marked pole through the gray pole
sleeve (Fig 12) and insert its end into the gray pole
pocket (Fig 13).
Gray
Tape
Fig 10
Fig 14
Widthwise Strap
Orange Pole
Sleeves
Gray Pole
Pocket
Gray Pole
Fig 12
5-Thread the (2) orange marked poles (long poles) through
the orange pole sleeves (Fig 12) and insert their ends into
the orange pole pockets near the canopy's hatch flap (Fig
14).
6-Place the opposite end of the gray pole into the other
gray pole pocket.
Fig 8
Orange
Poles
Orange
Tape
Fig 11
Hatch Flap
Lengthwise
Straps
Widthwise Strap
Orange Pole
Pockets
Orange Pole
Sleeves
Fig 13
Gray Pole
Gray Pole
Pocket
Gray Pole
Sleeves
Steel
Poles
