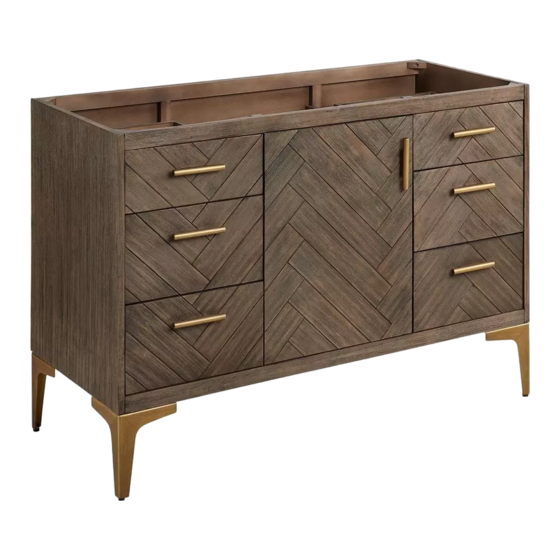

F R E Y 4 8 " V A N I T Y
WITH VESSEL SINK
SKU: 949567, 949570, 949571
BEFORE YOU BEGIN
We recommend consulting a professional if you are
unfamiliar with installing plumbing �xtures. Signature
Hardware accepts no liability for any damage to the
vanity, plumbing, countertop, sink, or for personal injury
during installation.
Observe all local plumbing and building codes.
Unpack and inspect the product for shipping damage. If
any damage is found, contact our Customer Relations
team at 1-866-855-2284.
GETTING STARTED
Ensure that you have gathered all the required
materials that are needed for the installation.
For Warranty information, please visit: signaturehardware.com/services/warranty
TOOLS AND MATERIALS:
Silicone Sealant
(100% Neutral Cure)
HARDWARE LIST
Screw
M6x20 - 16pcs
1
Damp Cloth
Washer
Allen wrench
19x2 - 16pcs
4mm - 1pc
REVISED 01/28/2021
CODES: 531236, 531237, 531238
Advertisement
Table of Contents
Related Manuals for Signature Hardware FREY 949567
Summary of Contents for Signature Hardware FREY 949567
- Page 1 F R E Y 4 8 ” V A N I T Y WITH VESSEL SINK SKU: 949567, 949570, 949571 TOOLS AND MATERIALS: BEFORE YOU BEGIN We recommend consulting a professional if you are unfamiliar with installing plumbing �xtures. Signature Hardware accepts no liability for any damage to the vanity, plumbing, countertop, sink, or for personal injury Damp Cloth...
- Page 2 F R E Y 4 8 ” V A N I T Y WITH VESSEL SINK SKU: 949567, 949570, 949571 INSTALLATION 1. Turn vanity cabinet upside down on soft surface. Align mounting holes in feet with mounting points on vanity cabinet.
- Page 3 F R E Y 4 8 ” V A N I T Y WITH VESSEL SINK SKU: 949567, 949570, 949571 2. Using provided allen wrench (C) fasten feet to vanity cabinet with washer (B) and screw (A) as shown.
- Page 4 F R E Y 4 8 ” V A N I T Y WITH VESSEL SINK SKU: 949567, 949570, 949571 COUNTERTOP INSTALLATION 1. Apply a bead of silicone sealant around the top edge 3. If you are installing a side-splash and/or back-splash, of the vanity cabinet.
- Page 5 F R E Y 4 8 ” V A N I T Y WITH VESSEL SINK SKU: 949567, 949570, 949571 SINK INSTALLATION 5. For stone tops, such as marble and granite, it is 1. Carefully place your vessel sink upside down on the recommended that you apply a high-quality sealer to countertop.
- Page 6 F R E Y 4 8 ” V A N I T Y WITH VESSEL SINK SKU: 949567, 949570, 949571 3. If desired, apply a continuous bead of silicone 5. Let the assembled vanity sit for 24 hours to allow all sealant around the perimeter of the sink base for the silicone sealant to fully dry.
