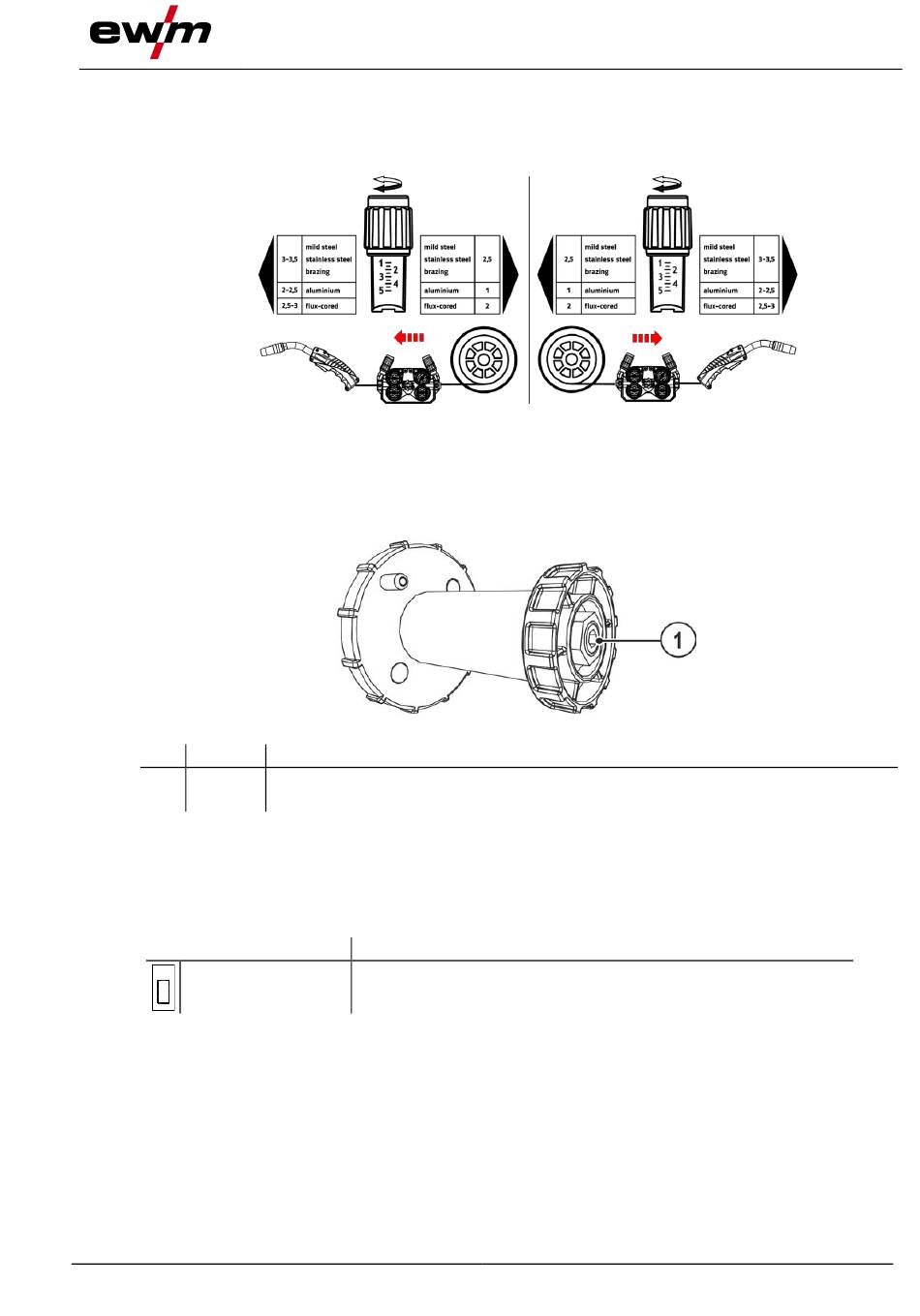

• The contact pressure has to be adjusted separately for each side (wire inlet/outlet) at the feed roll ten-
sioner setting nuts depending on the welding consumable used. A table with the setting values can be
found on a sticker near the wire drive.
Version 1: left hand mounting
Automatic inching stop
Touch the welding torch against the workpiece during inching. Inching of the welding wire will stop as
soon it touches the workpiece.
5.3.3.4

Spool brake setting

Item Symbol
1
• Tighten the Allen screw (8 mm) in the clockwise direction to increase the braking effect.
Tighten the spool brake until the wire spool no longer turns when the wire feed motor stops but
without it jamming during operation!
5.3.4

Standard MIG/MAG torch

The MIG welding torch trigger is essentially used to start and stop the welding process.
Operating elements
Torch trigger
099-005570-EW501
10.01.2022
Description 0
Allen screw
Securing the wire spool retainer and adjustment of the spool brake
Functions
• Start/stop welding
Version 2: right hand mounting
Figure 5-16
Figure 5-17
Design and function
MIG/MAG welding
