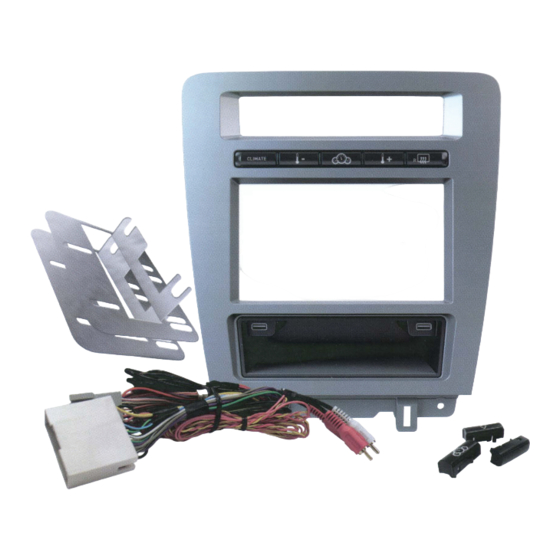

QUICK START GUIDE
THIS INSTALLATION REQUIRES AN IDATALINK
MAESTRO RR MODULE SOLD SEPARATELY.
QSG201309

Advertisement

loading
Need help?

Need help?

Do you have a question about the maestro mus1 and is the answer not in the manual?

Questions and answers

Related Manuals for iDataLink maestro mus1

Summary of Contents for iDataLink maestro mus1

  • Page 1 QUICK START GUIDE THIS INSTALLATION REQUIRES AN IDATALINK MAESTRO RR MODULE SOLD SEPARATELY. QSG201309...
  • Page 2 6 STEPS TO GET STARTED INSTALL THE WEBLINK PLUG-IN Go to: idatalinkmaestro.com/plugin and follow the installation steps. Review the System Requirements before installing. REGISTER A WEBLINK ACCOUNT Go to: idatalinkmaestro.com/register and complete the registration process. A confirmation email will be sent to you requiring validation.
  • Page 3 LOG INTO WEBLINK Go to: idatalinkmaestro.com/login. Enter your username and password, then click OK. PROGRAM YOUR MODULE Follow the installation steps until your module is flashed and download your install guide from the Web. Be sure to choose the MUS1 dash kit accessory in STEP 4.
  • Page 4 ADS is not responsible for any damages whatsoever, including but not limited to any consequential damages, incidental damages for loss of time, loss of earnings, commercial loss of economic opportunity and the like that may or may not have resulted from the installation or operation of an iDatalink Maestro product.
  • Page 5 SELECT VEHICLE PRINT PAGES NEEDED HOW TO USE THIS INSTALL GUIDE Open the Bookmarks menu and find your vehicle OR scroll down until you find the install guide for your vehicle. Print only the pages for your vehicle using the advanced options in the Print menu.
  • Page 6 PROGRAMMED FIRMWARE None ADS-RR(SR)-FOR01-DS2 iDatalink Maestro RR Radio Replacement Interface iDatalink Maestro MUS1 Dash Kit NOTICE: Automotive Data Solutions Inc. (ADS) recommends having this installation performed by a certified technician. Logos and trademarks used here in are the properties of their respective owners.
  • Page 7 Ford mustang Base 2010-2012 WELCOME TABLE OF CONTENTS Installation Instructions Congratulations on the purchase of your iDatalink Maestro RR Radio replacement solution. You are Wiring Diagram now a few simple steps away from enjoying your new car radio with Vehicle Wire Reference Chart enhanced features.
  • Page 8 OK button. Once the SWI 2 wire is located and tested, go to the next step. A / C Fig. 1.1 Fig. 1.2 Fig. 2.1 Fig. 2.2 Fig. 1.3 Fig. 1.4 Fig. 2.3 Fig. 2.4 Fig. 2.5 Automotive Data Solutions Inc. © 2014 ADS-RR(SR)-FOR01-DS2 maestro.idatalink.com...
  • Page 9 • Plug the Data cable to the data port of the aftermarket radio. • Insert the Audio cable into the iDatalink 3.5 mm audio jack of the aftermarket radio. • Insert the RCA connectors into the aftermarket radio. NOTES: Fig.
  • Page 10 10 seconds). Release the programming button. Wait, the LED will turn solid GREEN for 2 seconds. • For technical assistance call 1-866-427-2999 or e-mail “support@idatalink.com”. Visit us at “maestro.idatalink. com/support” and “www.12voltdata.com/forum/” Automotive Data Solutions Inc. © 2014 ADS-RR(SR)-FOR01-DS2...
  • Page 11 WHEEL SIDE MODULE SIDE STEP 6 FACTORY RADIO HARNESS STEP 9 STEP 7 OBDII CONNECTOR MAESTRO RR MODULE YELLOW/BROWN - CAN2L RED/BROWN - CAN2H WHITE/BLUE WHITE LOOK FOR THE TWISTED WIRES MUS1 T-HARNESS Automotive Data Solutions Inc. © 2014 ADS-RR(SR)-FOR01-DS2 maestro.idatalink.com...
  • Page 12 OBDII 16 pin White/Blue (DATA) OBDII connector, under driver side dash Can2L OBDII 16 pin White (DATA) OBDII connector, under driver side dash SWI 2 Blue/Orange (MUX) Sync unit, behind glove box Automotive Data Solutions Inc. © 2014 ADS-RR(SR)-FOR01-DS2 maestro.idatalink.com...
  • Page 13 T-Harness Parking Light Orange Orange/White Orange/White Reverse Light Purple/White Orange/White Purple/White Purple/White E-Brake Lt Green Yellow/Blue Lt Green Lt Green Foot Brake Yellow/Black Yellow/Black VSS (vehicle speed sensor) (DATA) Pink Green/White Pink Automotive Data Solutions Inc. © 2014 ADS-RR(SR)-FOR01-DS2 maestro.idatalink.com...
  • Page 14 PROGRAMMED FIRMWARE None ADS-RR(SR)-FOR01-DS2 iDatalink Maestro RR Radio Replacement Interface iDatalink Maestro MUS1 Dash Kit NOTICE: Automotive Data Solutions Inc. (ADS) recommends having this installation performed by a certified technician. Logos and trademarks used here in are the properties of their respective owners.
  • Page 15 Ford mustang shaker 500 & 1000 2010-2012 WELCOME TABLE OF CONTENTS Installation Instructions Congratulations on the purchase of your iDatalink Maestro RR Radio replacement solution. You are Wiring Diagram now a few simple steps away from enjoying your new car radio with Vehicle Wire Reference Chart enhanced features.
  • Page 16 OK button. Once the SWI 2 wire is located and tested, go to the next step. A / C Fig. 1.1 Fig. 1.2 Fig. 2.1 Fig. 2.2 Fig. 1.3 Fig. 1.4 Fig. 2.3 Fig. 2.4 Fig. 2.5 Automotive Data Solutions Inc. © 2014 ADS-RR(SR)-FOR01-DS2 maestro.idatalink.com...
  • Page 17 • Plug the Data cable to the data port of the aftermarket radio. • Insert the Audio cable into the iDatalink 3.5 mm audio jack of the aftermarket radio. • Insert the RCA connectors into the aftermarket radio. NOTES: Fig.
  • Page 18 10 seconds). Release the programming button. Wait, the LED will turn solid GREEN for 2 seconds. • For technical assistance call 1-866-427-2999 or e-mail “support@idatalink.com”. Visit us at “maestro.idatalink. com/support” and “www.12voltdata.com/forum/” Automotive Data Solutions Inc. © 2014 ADS-RR(SR)-FOR01-DS2...
  • Page 19 WHEEL SIDE MODULE SIDE STEP 6 FACTORY RADIO HARNESS STEP 9 STEP 7 OBDII CONNECTOR MAESTRO RR MODULE YELLOW/BROWN - CAN2L RED/BROWN - CAN2H WHITE/BLUE WHITE LOOK FOR THE TWISTED WIRES MUS1 T-HARNESS Automotive Data Solutions Inc. © 2014 ADS-RR(SR)-FOR01-DS2 maestro.idatalink.com...
  • Page 20 OBDII 16 pin White/Blue (DATA) OBDII connector, under driver side dash Can2L OBDII 16 pin White (DATA) OBDII connector, under driver side dash SWI 2 Blue/Orange (MUX) Sync unit, behind glove box Automotive Data Solutions Inc. © 2014 ADS-RR(SR)-FOR01-DS2 maestro.idatalink.com...
  • Page 21 T-Harness Parking Light Orange Orange/White Orange/White Reverse Light Purple/White Orange/White Purple/White Purple/White E-Brake Lt Green Yellow/Blue Lt Green Lt Green Foot Brake Yellow/Black Yellow/Black VSS (vehicle speed sensor) (DATA) Pink Green/White Pink Automotive Data Solutions Inc. © 2014 ADS-RR(SR)-FOR01-DS2 maestro.idatalink.com...
  • Page 22 PROGRAMMED FIRMWARE None ADS-RR(SR)-FOR01-DS2 iDatalink Maestro RR Radio Replacement Interface iDatalink Maestro MUS1 Dash Kit NOTICE: Automotive Data Solutions Inc. (ADS) recommends having this installation performed by a certified technician. Logos and trademarks used here in are the properties of their respective owners.
  • Page 23 Ford mustang Base 2013-2014 WELCOME TABLE OF CONTENTS Installation Instructions Congratulations on the purchase of your iDatalink Maestro RR Radio replacement solution. You are Wiring Diagram now a few simple steps away from enjoying your new car radio with Vehicle Wire Reference Chart enhanced features.
  • Page 24 OK button. Once the SWI 2 wire is located and tested, go to the next step. A / C Fig. 1.1 Fig. 1.2 Fig. 2.1 Fig. 2.2 Fig. 1.3 Fig. 1.4 Fig. 2.3 Fig. 2.4 Fig. 2.5 Automotive Data Solutions Inc. © 2014 ADS-RR(SR)-FOR01-DS2 maestro.idatalink.com...
  • Page 25 • Plug the Data cable to the data port of the aftermarket radio. • Insert the Audio cable into the iDatalink 3.5 mm audio jack of the aftermarket radio. • Insert the RCA connectors into the aftermarket radio. NOTES: Fig.
  • Page 26 10 seconds). Release the programming button. Wait, the LED will turn solid GREEN for 2 seconds. • For technical assistance call 1-866-427-2999 or e-mail “support@idatalink.com”. Visit us at “maestro.idatalink. com/support” and “www.12voltdata.com/forum/” Automotive Data Solutions Inc. © 2014 ADS-RR(SR)-FOR01-DS2...
  • Page 27 WHEEL SIDE MODULE SIDE STEP 6 FACTORY RADIO HARNESS STEP 9 STEP 7 OBDII CONNECTOR MAESTRO RR MODULE YELLOW/BROWN - CAN2L RED/BROWN - CAN2H WHITE/BLUE WHITE LOOK FOR THE TWISTED WIRES MUS1 T-HARNESS Automotive Data Solutions Inc. © 2014 ADS-RR(SR)-FOR01-DS2 maestro.idatalink.com...
  • Page 28 OBDII 16 pin White/Blue (DATA) OBDII connector, under driver side dash Can2L OBDII 16 pin White (DATA) OBDII connector, under driver side dash SWI 2 Blue (MUX) SYNC unit, behind glove box Automotive Data Solutions Inc. © 2014 ADS-RR(SR)-FOR01-DS2 maestro.idatalink.com...
  • Page 29 T-Harness Parking Light Orange Orange/White Orange/White Reverse Light Purple/White Orange/White Purple/White Purple/White E-Brake Lt Green Yellow/Blue Lt Green Lt Green Foot Brake Yellow/Black Yellow/Black VSS (vehicle speed sensor) (DATA) Pink Green/White Pink Automotive Data Solutions Inc. © 2014 ADS-RR(SR)-FOR01-DS2 maestro.idatalink.com...
  • Page 30 PROGRAMMED FIRMWARE None ADS-RR(SR)-FOR01-DS2 iDatalink Maestro RR Radio Replacement Interface iDatalink Maestro MUS1 Dash Kit NOTICE: Automotive Data Solutions Inc. (ADS) recommends having this installation performed by a certified technician. Logos and trademarks used here in are the properties of their respective owners.
  • Page 31 Ford mustang shaker 2013-2014 WELCOME TABLE OF CONTENTS Installation Instructions Congratulations on the purchase of your iDatalink Maestro RR Radio replacement solution. You are Wiring Diagram now a few simple steps away from enjoying your new car radio with Vehicle Wire Reference Chart enhanced features.
  • Page 32 OK button. Once the SWI 2 wire is located and tested, go to the next step. A / C Fig. 1.1 Fig. 1.2 Fig. 2.1 Fig. 2.2 Fig. 1.3 Fig. 1.4 Fig. 2.3 Fig. 2.4 Fig. 2.5 Automotive Data Solutions Inc. © 2014 ADS-RR(SR)-FOR01-DS2 maestro.idatalink.com...
  • Page 33 • Plug the Data cable to the data port of the aftermarket radio. • Insert the Audio cable into the iDatalink 3.5 mm audio jack of the aftermarket radio. • Insert the RCA connectors into the aftermarket radio. NOTES: Fig.
  • Page 34 10 seconds). Release the programming button. Wait, the LED will turn solid GREEN for 2 seconds. • For technical assistance call 1-866-427-2999 or e-mail “support@idatalink.com”. Visit us at “maestro.idatalink. com/support” and “www.12voltdata.com/forum/” Automotive Data Solutions Inc. © 2014 ADS-RR(SR)-FOR01-DS2...
  • Page 35 WHEEL SIDE MODULE SIDE STEP 6 FACTORY RADIO HARNESS STEP 9 STEP 7 OBDII CONNECTOR MAESTRO RR MODULE YELLOW/BROWN - CAN2L RED/BROWN - CAN2H WHITE/BLUE WHITE LOOK FOR THE TWISTED WIRES MUS1 T-HARNESS Automotive Data Solutions Inc. © 2014 ADS-RR(SR)-FOR01-DS2 maestro.idatalink.com...
  • Page 36 OBDII 16 pin White/Blue (DATA) OBDII connector, under driver side dash Can2L OBDII 16 pin White (DATA) OBDII connector, under driver side dash SWI 2 Blue (MUX) SYNC unit, behind glove box Automotive Data Solutions Inc. © 2014 ADS-RR(SR)-FOR01-DS2 maestro.idatalink.com...
  • Page 37 T-Harness Parking Light Orange Orange/White Orange/White Reverse Light Purple/White Orange/White Purple/White Purple/White E-Brake Lt Green Yellow/Blue Lt Green Lt Green Foot Brake Yellow/Black Yellow/Black VSS (vehicle speed sensor) (DATA) Pink Green/White Pink Automotive Data Solutions Inc. © 2014 ADS-RR(SR)-FOR01-DS2 maestro.idatalink.com...
  • Page 38 PROGRAMMED FIRMWARE None ADS-RR(SR)-FOR01-DS2 iDatalink Maestro RR Radio Replacement Interface iDatalink Maestro MUS1 Dash Kit NOTICE: Automotive Data Solutions Inc. (ADS) recommends having this installation performed by a certified technician. Logos and trademarks used here in are the properties of their respective owners.
  • Page 39 Ford mustang shaker Pro 2013-2014 WELCOME TABLE OF CONTENTS Installation Instructions Congratulations on the purchase of your iDatalink Maestro RR Radio replacement solution. You are Wiring Diagram now a few simple steps away from enjoying your new car radio with Vehicle Wire Reference Chart enhanced features.
  • Page 40 OK button. Once the SWI 2 wire is located and tested, go to the next step. A / C Fig. 1.1 Fig. 1.2 Fig. 2.1 Fig. 2.2 Fig. 1.3 Fig. 1.4 Fig. 2.3 Fig. 2.4 Fig. 2.5 Automotive Data Solutions Inc. © 2014 ADS-RR(SR)-FOR01-DS2 maestro.idatalink.com...
  • Page 41 • Plug the Data cable to the data port of the aftermarket radio. • Insert the Audio cable into the iDatalink 3.5 mm audio jack of the aftermarket radio. • Insert the RCA connectors into the aftermarket radio. NOTES: Fig.
  • Page 42 10 seconds). Release the programming button. Wait, the LED will turn solid GREEN for 2 seconds. • For technical assistance call 1-866-427-2999 or e-mail “support@idatalink.com”. Visit us at “maestro.idatalink. com/support” and “www.12voltdata.com/forum/” Automotive Data Solutions Inc. © 2014 ADS-RR(SR)-FOR01-DS2...
  • Page 43 WHEEL SIDE MODULE SIDE STEP 6 FACTORY RADIO HARNESS STEP 9 STEP 7 OBDII CONNECTOR MAESTRO RR MODULE YELLOW/BROWN - CAN2L RED/BROWN - CAN2H WHITE/BLUE WHITE LOOK FOR THE TWISTED WIRES MUS1 T-HARNESS Automotive Data Solutions Inc. © 2014 ADS-RR(SR)-FOR01-DS2 maestro.idatalink.com...
  • Page 44 OBDII 16 pin White/Blue (DATA) OBDII connector, under driver side dash Can2L OBDII 16 pin White (DATA) OBDII connector, under driver side dash SWI 2 Blue (MUX) SYNC unit, behind glove box Automotive Data Solutions Inc. © 2014 ADS-RR(SR)-FOR01-DS2 maestro.idatalink.com...
  • Page 45 T-Harness Parking Light Orange Orange/White Orange/White Reverse Light Purple/White Orange/White Purple/White Purple/White E-Brake Lt Green Yellow/Blue Lt Green Lt Green Foot Brake Yellow/Black Yellow/Black VSS (vehicle speed sensor) (DATA) Pink Green/White Pink Automotive Data Solutions Inc. © 2014 ADS-RR(SR)-FOR01-DS2 maestro.idatalink.com...
